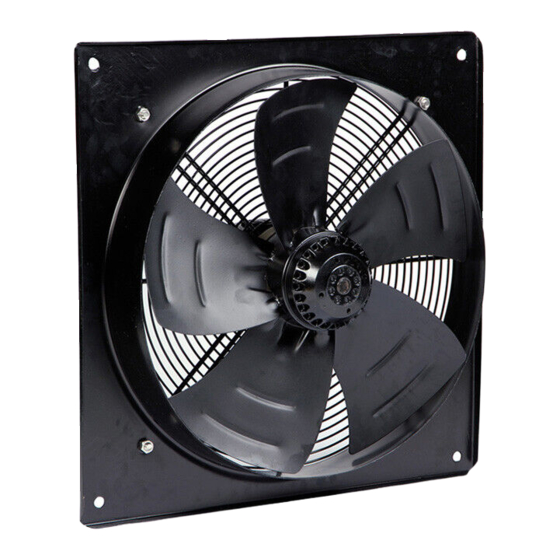

HPA Axial Flow Fan
Installation and Maintenance Instructions.
THESE INSTRUCTIONS MUST BE READ FULLY BEFORE COMMENCING INSTALLATION.
Owner / installer: The life of this apparatus and its efficiency will be increased if
its use and maintenance is carried out in accordance with these instructions and
current statutory requirements. The installation and initial adjustments should
be carried out by a qualified and competent technician. Hydor Limited should be
consulted before substituting or fitting parts from another manufacturer. It is the
responsibility of the installer to verify that the installation is in accordance with
the following standards and the owner is given the current User's Manual.
Any modifications to the fan or its installation, even the smallest
modification, change or elimination of security components or pieces
that influence the efficiency or loss of ventilation, will result in the CE
Certification and Hydor's warranty being cancelled.
1.
General
1.1
It is important these Installation and Maintenance Instructions are fully
adhered to.
1.2 Full details of the unit supplied are shown on the product nameplate. If in
doubt about any detail contact Hydor or its agents for clarification.
1.3 All electrical installation must be carried out by suitably qualified and
competent personnel in accordance with all current statutory
requirements.
1.4 These instructions cover only the Hydor product and do not include the
supply or installation of any safety equipment that may be required e.g.
adequate guarding or protection from rotating parts and proper electrical
isolation.
1.5 Any declarations made by Hydor about product installation and safety, are
dependent on the fan equipment being used within installations which
themselves meet the requirements of the relevant Standards and
Directives of your region.
1.6 The fan is designed for use in an ambient temperature of up to 55°C and
up to 95% relative humidity. The fan is not suitable for corrosive or explosive
atmospheres.
1.7
The installer should provide easy access to the fan to facilitate future
maintenance.
HPA Inst Issue 2: 01.22
incorrect
correct, minimum hei
