5.2

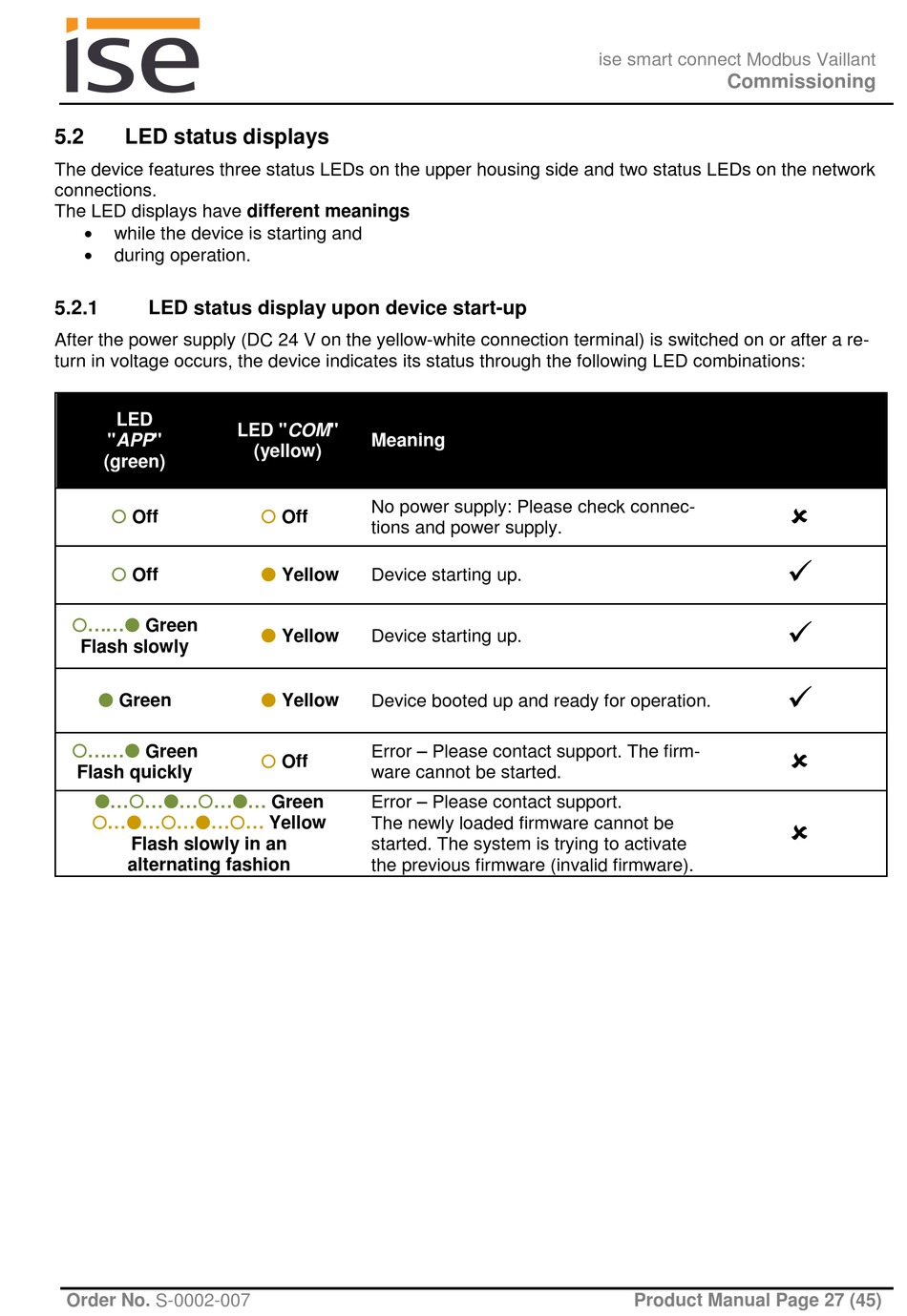

LED status displays

The device features three status LEDs on the upper housing side and two status LEDs on the network
connections.
The LED displays have different meanings

while the device is starting and

during operation.
5.2.1

LED status display upon device start-up

After the power supply (DC 24 V on the yellow-white connection terminal) is switched on or after a re-
turn in voltage occurs, the device indicates its status through the following LED combinations:
LED
"APP"
(green)

Off

Off
......
Green
Flash slowly

Green
......
Green
Flash quickly
...............
...............
Flash slowly in an
alternating fashion
Order No. S-0002-007
LED "COM"
Meaning
(yellow)
No power supply: Please check connec-

Off
tions and power supply.

Yellow Device starting up.

Yellow Device starting up.

Yellow Device booted up and ready for operation.
Error – Please contact support. The firm-

Off
ware cannot be started.
Error – Please contact support.
Green
Yellow The newly loaded firmware cannot be
started. The system is trying to activate
the previous firmware (invalid firmware).
