ise smart connect Modbus Vaillant
Installation, electrical connection and operation
2.5

Connection of the ise eBUS Adapter with the eBUS

The heating technology supplier has installed a junction box in which an eBUS cable is laid from the
heating system. In this junction box, the company executing the building management system (BMS)
will establish the connection to the ise eBUS Adapter.

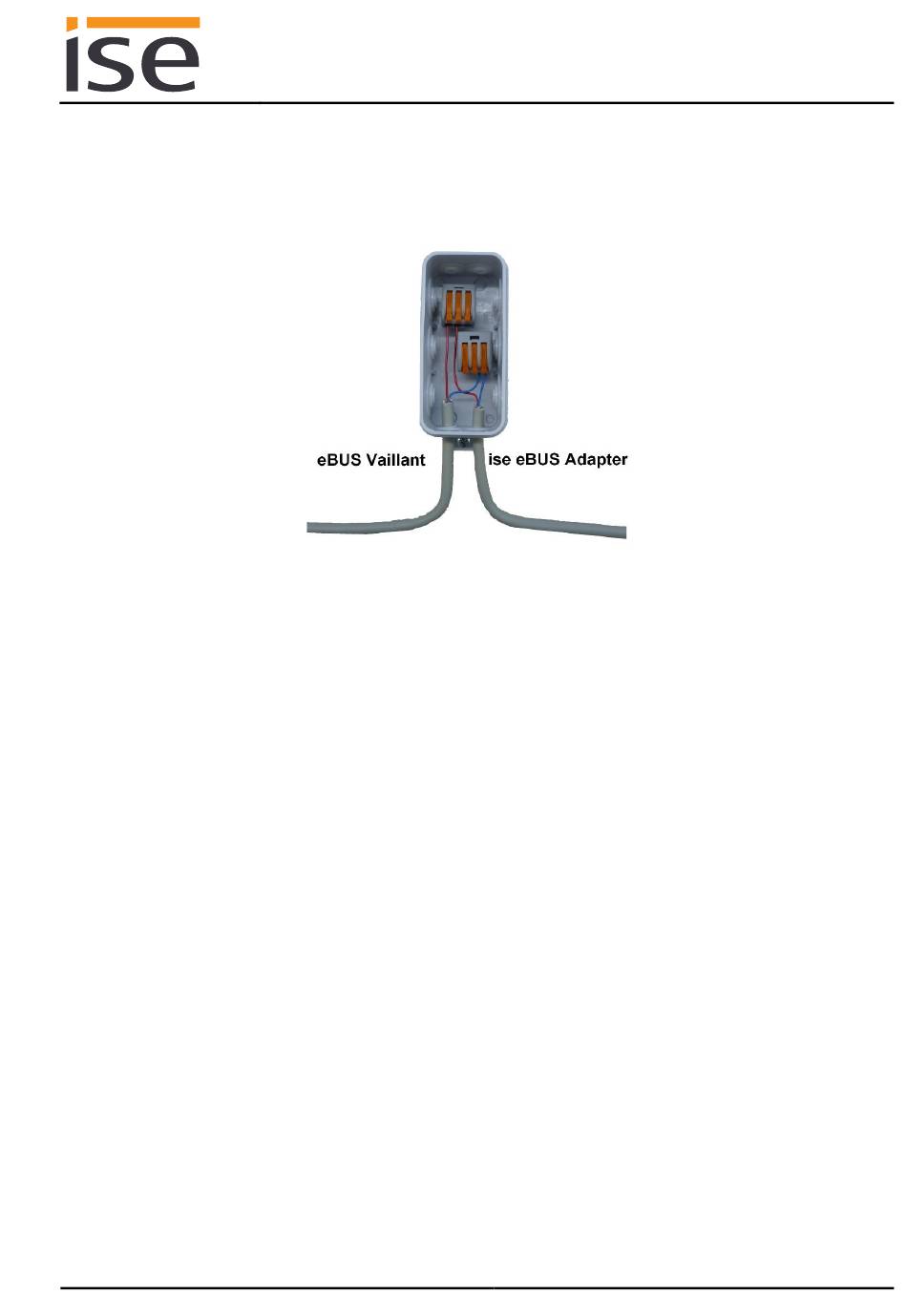

Figure 4: Junction box for the connection of the ise eBUS Adapter to the heating system.
The position of the junction box can be seen in the "Handover protocol from executing company for
heating, air conditioning, ventilation technology to the building technology planner". The corresponding
information can be found in Point 4 "Position of eBUS connection point between Vaillant heating sys-
tem and Modbus Gateway" of the handover protocol.
Order No. S-0002-007 Product Manual Page 11 (45)
