2.4

Device design ise eBUS Adapter

1
eBUS connection
2 LED PWR (green)
3
LED COM (green)
4
USB connection
Please see the installation instructions enclosed with the device for more information.
Order No. S-0002-007
Installation, electrical connection and operation

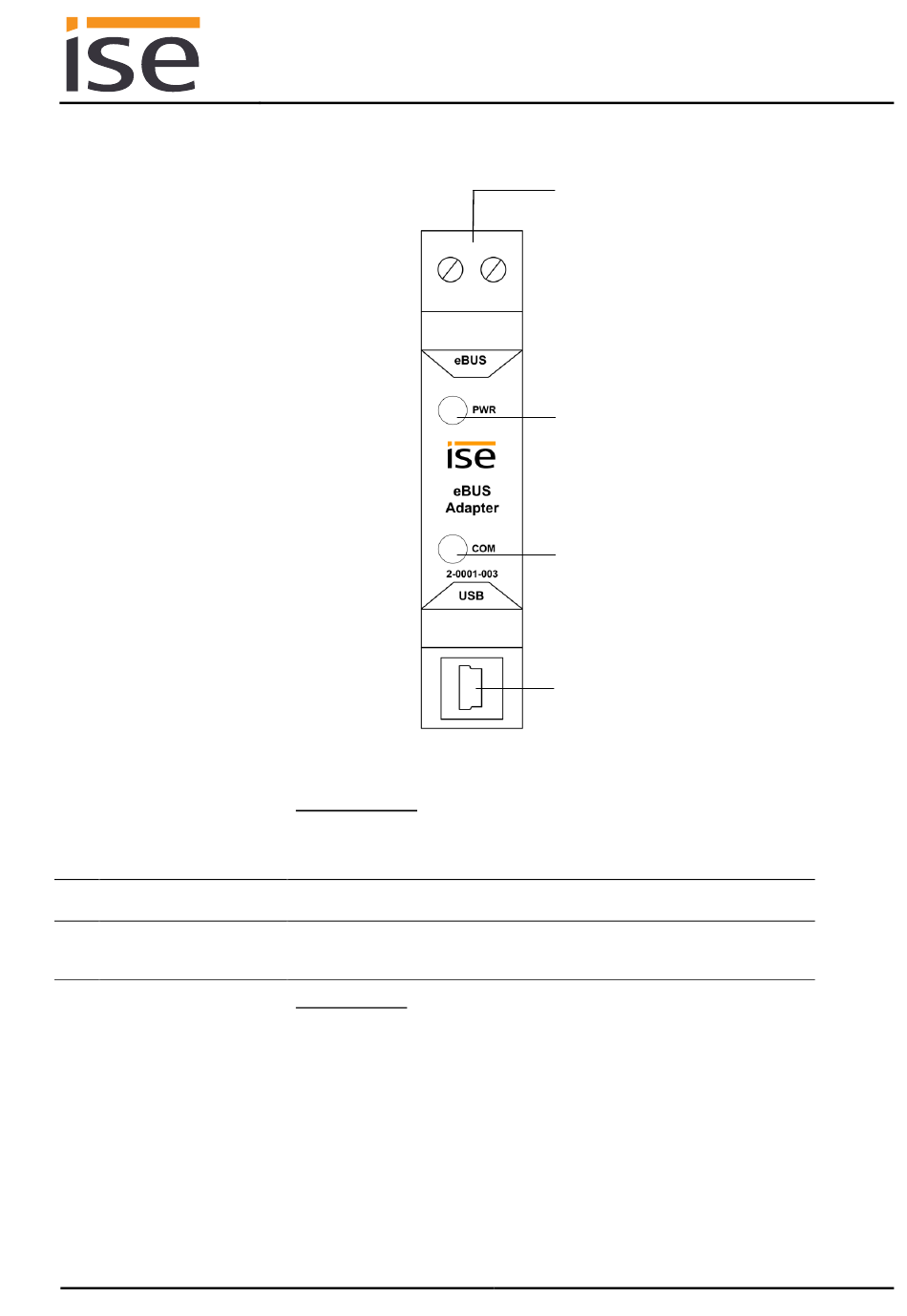

Figure 3: ise eBUS Adapter
Important note: The maximum length of the eBUS connection
cable is 125 m. Please see chapter 2.5 "Connection of the ise eBUS
Adapter with the eBUS" for the position of the eBUS connection. The
connection is protected against polarity reversal.
Green: Minimum voltage from eBUS is connected
Green: Connection of ise smart connect Modbus Vaillant with eBUS
established
Important note: The adapter cable for the USB port is equipped with a
mini USB-B angled plug. To prevent damage, the angled plug must
always be pulled out the front.
Use the supplied USB cable as standard. Please note that the use
of USB cables with a length of more than 3 m is generally not
permitted.
ise smart connect Modbus Vaillant
1
v
Dimensions:
Width (W):
17.5 mm (1 HP)
Height (H):
90 mm
Depth (D):
74 mm
2
v
3
v
4
v
