5

Commissioning

5.1

Operation

1
Button for factory reset
Connection for
2
power supply
3
LED (red)
4
LED APP (green)
5
LED COM (yellow)
6
Ethernet connection
7
USB connection
8
MicroSD card holder
Order No. S-0002-007
1
ise smart connect
Modbus
Vaillant
8
7

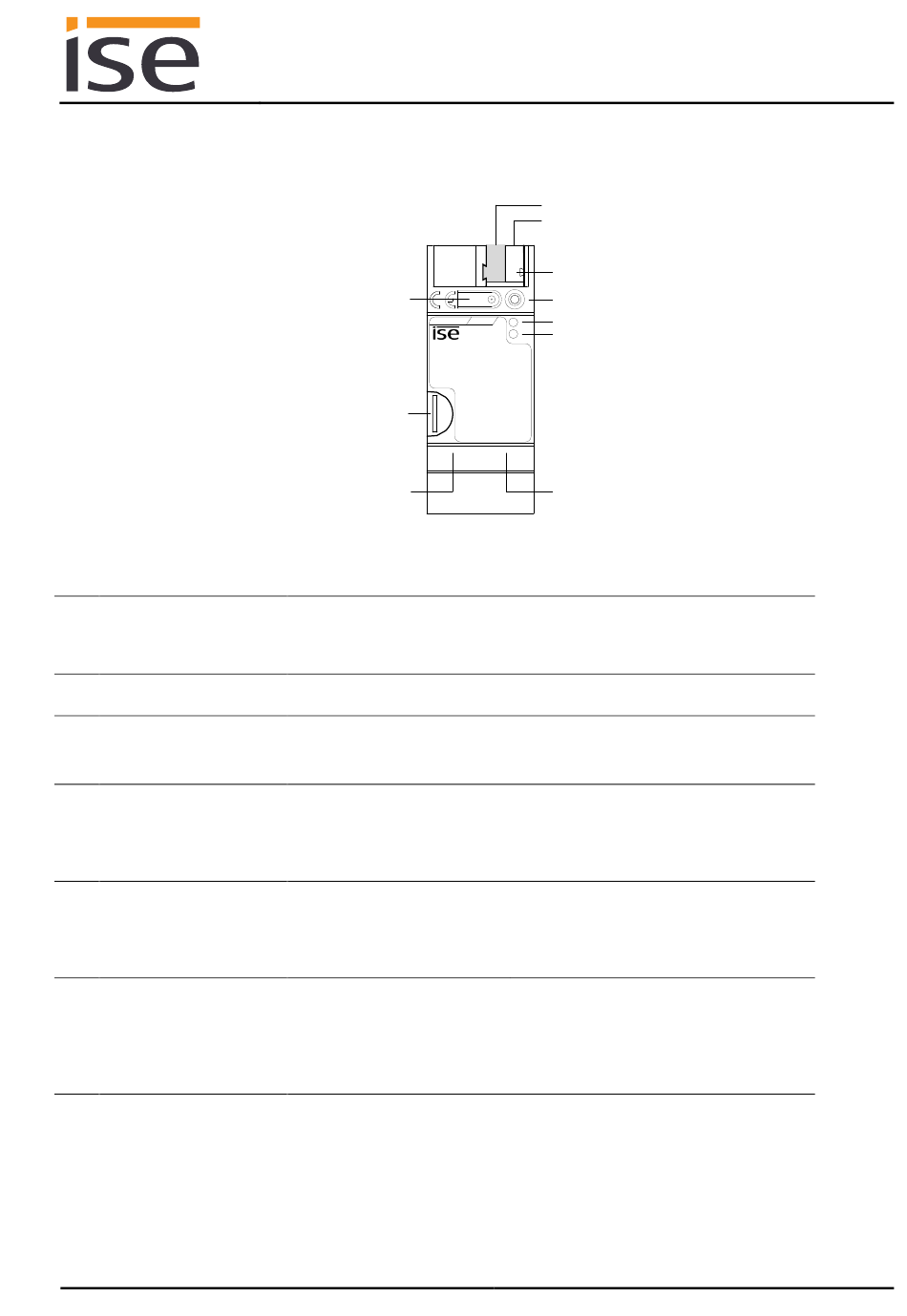

Figure 5: ise smart connect Modbus Vaillant.
The button can be used to execute a factory reset of the device.
DC 24–30 V, 2 W (at 24 V)
On left: (+ / yellow)
On right: (– / white)
Red: No function.
Green: Normal operation
Off/Flashing: For diagnosis code, see 5.2.1 / 5.2.2
Yellow: Normal operation, Modbus TCP/IP server running
(brief dark phases indicate Modbus TCP/IP telegram
traffic)
Off/Flashing: Error, Modbus TCP/IP server not running
LED 10/100 speed (green)
On: 100 Mbit/s
Off: 10 Mbit/s
USB connection type A, establishes the connection to the Vaillant
system via the ise eBUS Adapter.
Use the supplied USB cable as standard. Please note that the use
of USB cables with a length of more than 3 m is generally not
permitted.
No function.
ise smart connect Modbus Vaillant
24 V DC
2
3
4
24VDC
APP
5
COM
00:00:00:00:00:00
1-0009-000
6
LED link/ACT (orange)
On: Connection to IP network
Off: No connection
Flashing: Data reception on IP
Product Manual Page 26 (45)
