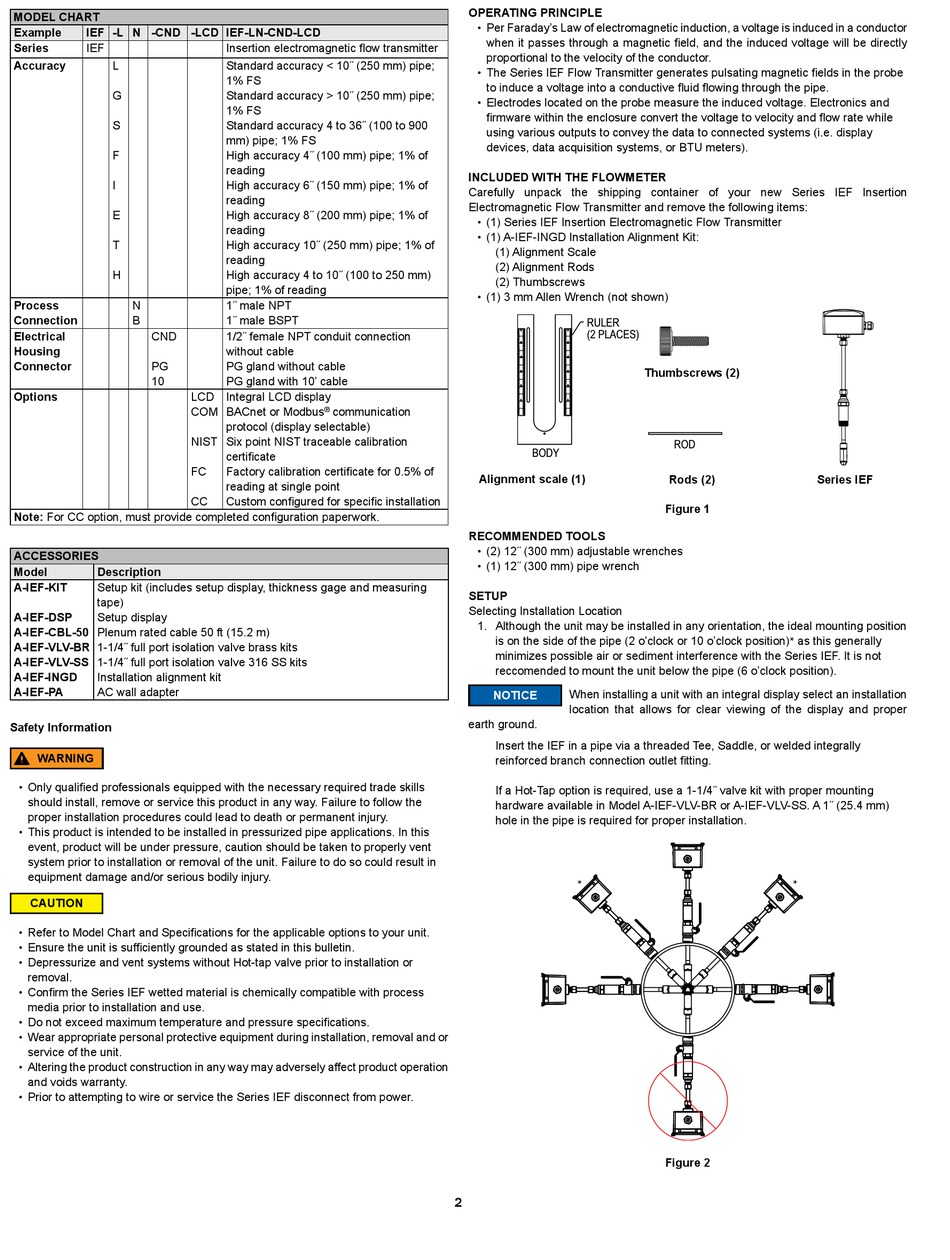

Dwyer Instruments IEF Series Specifications-Installation And Operating Instructions page 2

MODEL CHART
Example IEF -L N -CND -LCD IEF-LN-CND-LCD
Series IEF
Accuracy L
G
S
F
I
E
T
H
Process N
Connection B
Electrical CND
Housing
Connector PG
10
Options
Note: For CC option, must provide completed configuration paperwork.
ACCESSORIES
Model Description
A-IEF-KIT
Setup kit (includes setup display, thickness gage and measuring
tape)
A-IEF-DSP
Setup display
A-IEF-CBL-50 Plenum rated cable 50 ft (15.2 m)
A-IEF-VLV-BR
1-1/4˝ full port isolation valve brass kits
A-IEF-VLV-SS 1-1/4˝ full port isolation valve 316 SS kits
A-IEF-INGD Installation alignment kit
A-IEF-PA AC wall adapter
Safety Information
WARNING
• Only qualified professionals equipped with the necessary required trade skills
should install, remove or service this product in any way. Failure to follow the
proper installation procedures could lead to death or permanent injury.
• This product is intended to be installed in pressurized pipe applications. In this
event, product will be under pressure, caution should be taken to properly vent
system prior to installation or removal of the unit. Failure to do so could result in
equipment damage and/or serious bodily injury.
CAUTION
• Refer to Model Chart and Specifications for the applicable options to your unit.
• Ensure the unit is sufficiently grounded as stated in this bulletin.
• Depressurize and vent systems without Hot-tap valve prior to installation or
removal.
• Confirm the Series IEF wetted material is chemically compatible with process
media prior to installation and use.
• Do not exceed maximum temperature and pressure specifications.
• Wear appropriate personal protective equipment during installation, removal and or
service of the unit.
• Altering the product construction in any way may adversely affect product operation
and voids warranty.
• Prior to attempting to wire or service the Series IEF disconnect from power.
Insertion electromagnetic flow transmitter
Standard accuracy < 10˝ (250 mm) pipe;
1% FS
Standard accuracy > 10˝ (250 mm) pipe;
1% FS
Standard accuracy 4 to 36˝ (100 to 900
mm) pipe; 1% FS
High accuracy 4˝ (100 mm) pipe; 1% of
reading
High accuracy 6˝ (150 mm) pipe; 1% of
reading
High accuracy 8˝ (200 mm) pipe; 1% of
reading
High accuracy 10˝ (250 mm) pipe; 1% of
reading
High accuracy 4 to 10˝ (100 to 250 mm)
pipe; 1% of reading
1˝ male NPT
1˝ male BSPT
1/2˝ female NPT conduit connection
without cable
PG gland without cable
PG gland with 10' cable
LCD Integral LCD display
COM BACnet or Modbus communication
®
protocol (display selectable)
NIST Six point NIST traceable calibration
certificate
FC Factory calibration certificate for 0.5% of
reading at single point
CC Custom configured for specific installation
OPERATING PRINCIPLE
• Per Faraday's Law of electromagnetic induction, a voltage is induced in a conductor
when it passes through a magnetic field, and the induced voltage will be directly
proportional to the velocity of the conductor.
• The Series IEF Flow Transmitter generates pulsating magnetic fields in the probe
to induce a voltage into a conductive fluid flowing through the pipe.
• Electrodes located on the probe measure the induced voltage. Electronics and
firmware within the enclosure convert the voltage to velocity and flow rate while
using various outputs to convey the data to connected systems (i.e. display
devices, data acquisition systems, or BTU meters).
INCLUDED WITH THE FLOWMETER
Carefully unpack the shipping container of your new Series IEF Insertion
Electromagnetic Flow Transmitter and remove the following items:
• (1) Series IEF Insertion Electromagnetic Flow Transmitter
• (1) A-IEF-INGD Installation Alignment Kit:
(1) Alignment Scale
(2) Alignment Rods
(2) Thumbscrews
• (1) 3 mm Allen Wrench (not shown)
RULER
(2 PLACES)
BODY
Alignment scale (1)
RECOMMENDED TOOLS
• (2) 12˝ (300 mm) adjustable wrenches
• (1) 12˝ (300 mm) pipe wrench
SETUP
Selecting Installation Location
1. Although the unit may be installed in any orientation, the ideal mounting position
is on the side of the pipe (2 o'clock or 10 o'clock position)* as this generally
minimizes possible air or sediment interference with the Series IEF. It is not
reccomended to mount the unit below the pipe (6 o'clock position).
NOTICE When installing a unit with an integral display select an installation
location that allows for clear viewing of the display and proper
earth ground.
Insert the IEF in a pipe via a threaded Tee, Saddle, or welded integrally
reinforced branch connection outlet fitting.
If a Hot-Tap option is required, use a 1-1/4˝ valve kit with proper mounting
hardware available in Model A-IEF-VLV-BR or A-IEF-VLV-SS. A 1˝ (25.4 mm)
hole in the pipe is required for proper installation.
*
2
Thumbscrews (2)
ROD
Rods (2) Series IEF
Figure 1
*
Figure 2
