Series IEF Insertion Electromagnetic Flow Transmitter
Specifications - Installation and Operating Instructions

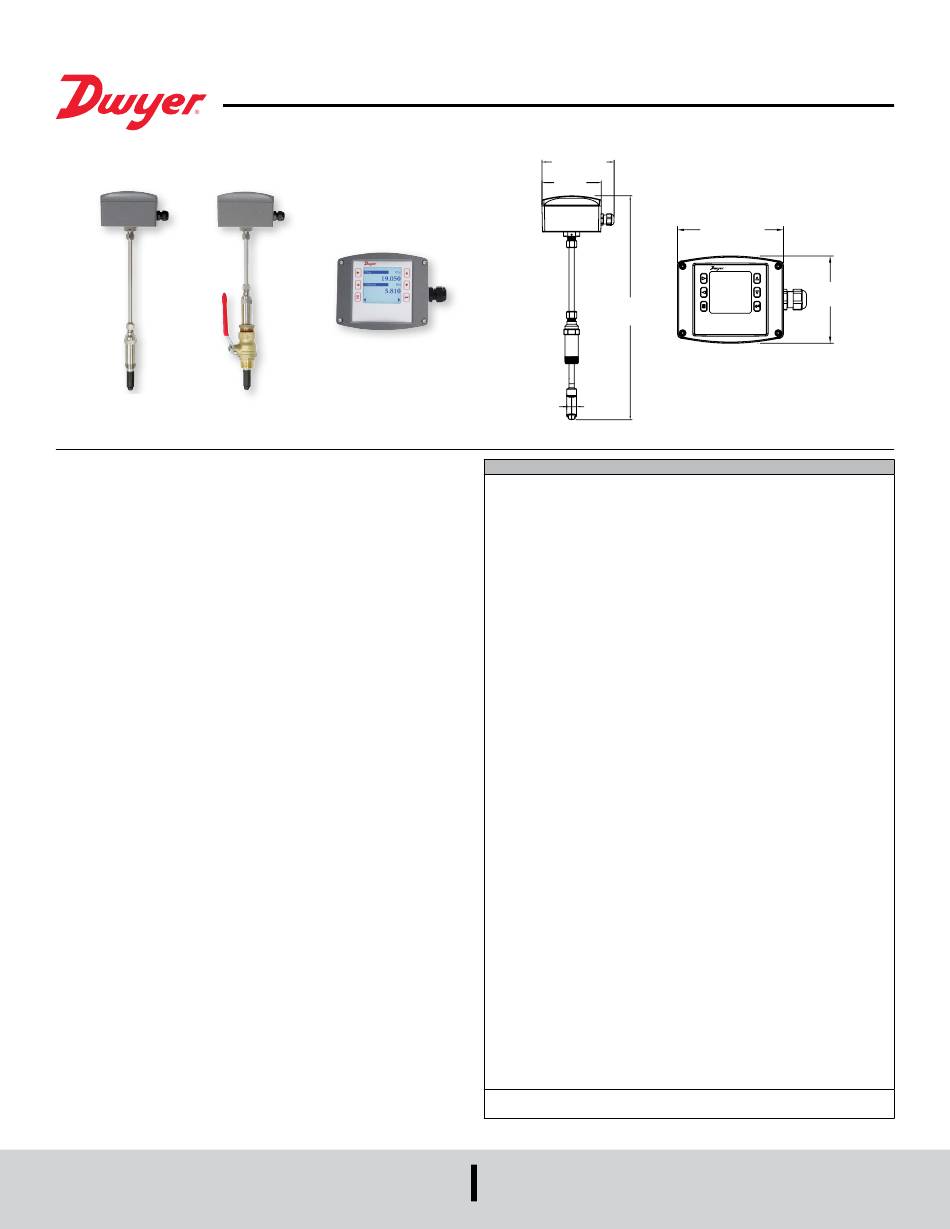

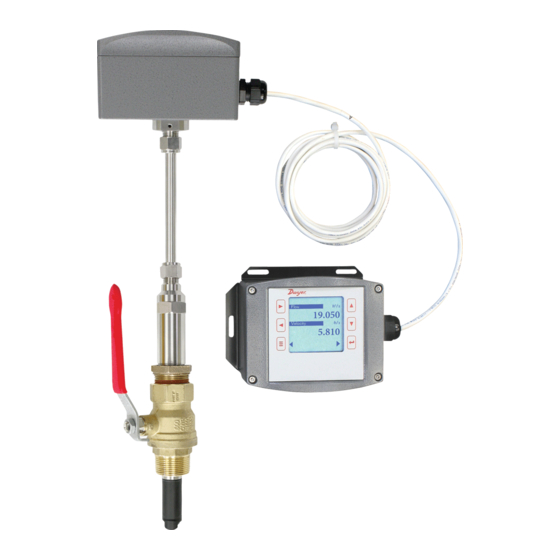

Shown with A-IEF-VLV-BR
accessory valve
The Series IEF Insertion Electromagnetic Flow Transmitter is an adjustable
insertion flowmeter featuring electromagnetic technology that accurately and reliably
measures fluid velocity in addition to providing several continuous signal outputs.
This series is specifically designed to offer superior performance paired with simple
installation and use. One unit is adjustable to fit pipe sizes from 4 to 36˝ (100 to
900 mm), and offers several output options including selectable BACnet MS/TP or
Modbus RTU communications protocol over 2-wire RS-485 in addition to the standard
®
analog, frequency and alarm outputs.
FEATURES/BENEFITS
• Field configurable setup displays (-LCD integral option or remote accessory
A-IEF-DSP) allow for ultimate flexibility by accommodating a variety of application
configurations with one model through multiple display configurations i.e. pipe
size, pipe material, liquid type, analog output, pulse/frequency output, alarm outputs,
communication outputs, damping, and calibration factor.
• High performance accuracy is maintained through changes in temperature, density
or viscosity.
• Setup Wizard and installation tool are simple to use allowing for quick and precise
installation.
• Accessory setup kit A-IEF-KIT ensures exact installation application depth with
included thickness gage and measuring tape.
• Long Life Cycle and minimal maintenance requirements with no moving parts to
wear or break and electrodes that discourage fouling.
• Isolation valve accessory options allow for installation in operational systems via
hot-tap kit or easy removal without system downtime.
• NIST calibration certificate included standard for Carbon Steel Schedule 40 pipes
sized 4˝ (100 mm), 6˝ (150 mm), 8˝ (200 mm), and 10˝ (250 mm) with high accuracy
option.
APPLICATIONS
• Boiler feed water
• Chilled water
• Open and closed loop condenser water
• Irrigation system
• Municipal water distribution
• Process and coolant flow
• Ground water remediation
• Chemical processing
• Pump protection
• Wastewater
• Mining
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
-LCD option shown
SPECIFICATIONS
Service: Compatible clean or dirty non coating, conductive liquids.
Range: 0 to 20 ft/s (0 to 6 m/s).*
Wetted Materials: Body shaft/fitting: 316 SS; Electrodes: 316 SS; Electrode cap:
Polymer/Polystyrene; O-ring: Silicone.
Accuracy: IEF-HX-X: ±0.5% of reading at calibrated velocity; ±1% of reading from
2 to 20 ft/s (0.6 to 6 m/s) ±0.02 ft/s (±0.006 m/s) at < 2 ft/s (0.6 m/s). IEF-SX-X: ±1%
FS.
Temperature Limits: Ambient: -20 to 160°F (-29 to 71°C); Process: 15 to 250°F (-9
to 121°C); Storage: -40 to 185°F (-40 to 85°C).
Process Connection: 1˝ NPT or BSPT with accessory full port ball valve options.
Pressure Limits: 400 psi (27.6 bar) @ 100º F (37.8°C).
Pressure Drop: < 0.1 psi at 12 ft/s in 4˝ (101.6 mm) and larger pipe.
Outputs:
(1) Analog: 4-20 mA, 0-5 V, 0-10 V or 2-10 V (display selectable);
(1) Pulse/Frequency: 0-15 V peak pulse, 0 to 500 Hz or scalable pulse output
(display selectable);
(2) Alarm: (1) Empty pipe detection or minimum/maximum velocity, (display
selectable); (1) Reverse flow output indication.
Power Requirements: 12-42.4 VDC, .25 A @ 24 VDC; 12-36 VAC.
Electrical Connection: Removable terminal blocks, model selectable 1/2˝ female
NPT conduit connection, PG 16 gland or PG 16 gland with (2) 10 ft (3 m) 9
conductor 22 AWG plenum rated cables, accessory cable lengths up to 200 ft (61
m) optional.
Display (-LCD option): 2˝ ( 5.08 cm) x 2˝ (5.08 cm) graphic LCD with backlight.
Conductivity: >20 microsiemens.
Enclosure Material: Powder coated die cast aluminum.
Enclosure Ratings: NEMA 6P (IP68) (Non display models); NEMA 4X (IP66)
(-LCD option).
Agency Approvals: BTL, CE, NSF.
COMMUNICATIONS (-COM OPTION)
Type: BACnet MS/TP or Modbus
display selectable).
Supported Baud Rates: 9600, 19200, 38400, 57600, 76800, or 115200 bps
(display selectable).
Device Load: 1/8 unit load.
ADDITIONAL SPECIFICATIONS
Applicable Pipe Material: Most popular plastic and metal pipes; i.e. Carbon steel,
SS, copper, UPVC/PVDF, galvanized steel, mild steel, and brass**.
Applicable Pipe Size: IEF-HX-X: 4 to 10˝ (100 to 254 mm); IEF-SX-X: 4 to 36˝
(100 to 900 mm).
Diameter Length Requirements: >10 upstream, >5 downstream.
Glycol: 0 to 100% display selectable.
*For max flowrates >10 ft/s (3 m/s) order option -CC.
**Brass fittings and pipe not suitable for use with NSF certified models.
1
7-3/32 [180.2]
5-53/64
[148.0]
22-1/64
[559.2]
61/64
[24.2]
RTU communication protocol (default disabled,
®
Phone: 219/879-8000 www.dwyer-inst.com
Fax: 219/872-9057 e-mail: info@dwyermail.com
Bulletin F-IEF-F-1
5-53/64 [148.0]
4-51/64
[121.8]
