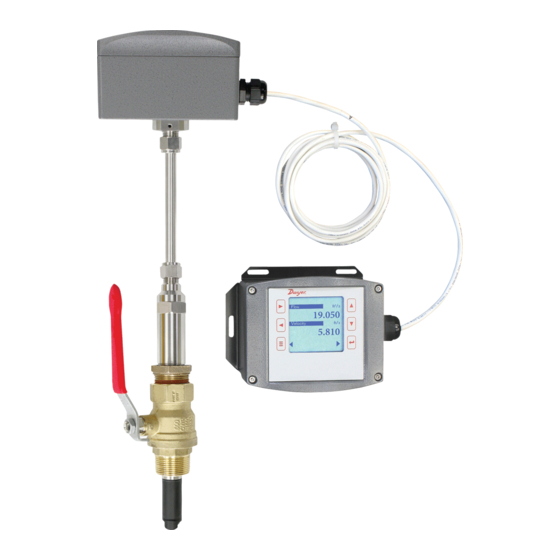

Series IEF Insertion Electromagnetic Flow Transmitter
BACnet / Modbus
Network Termination Jumper

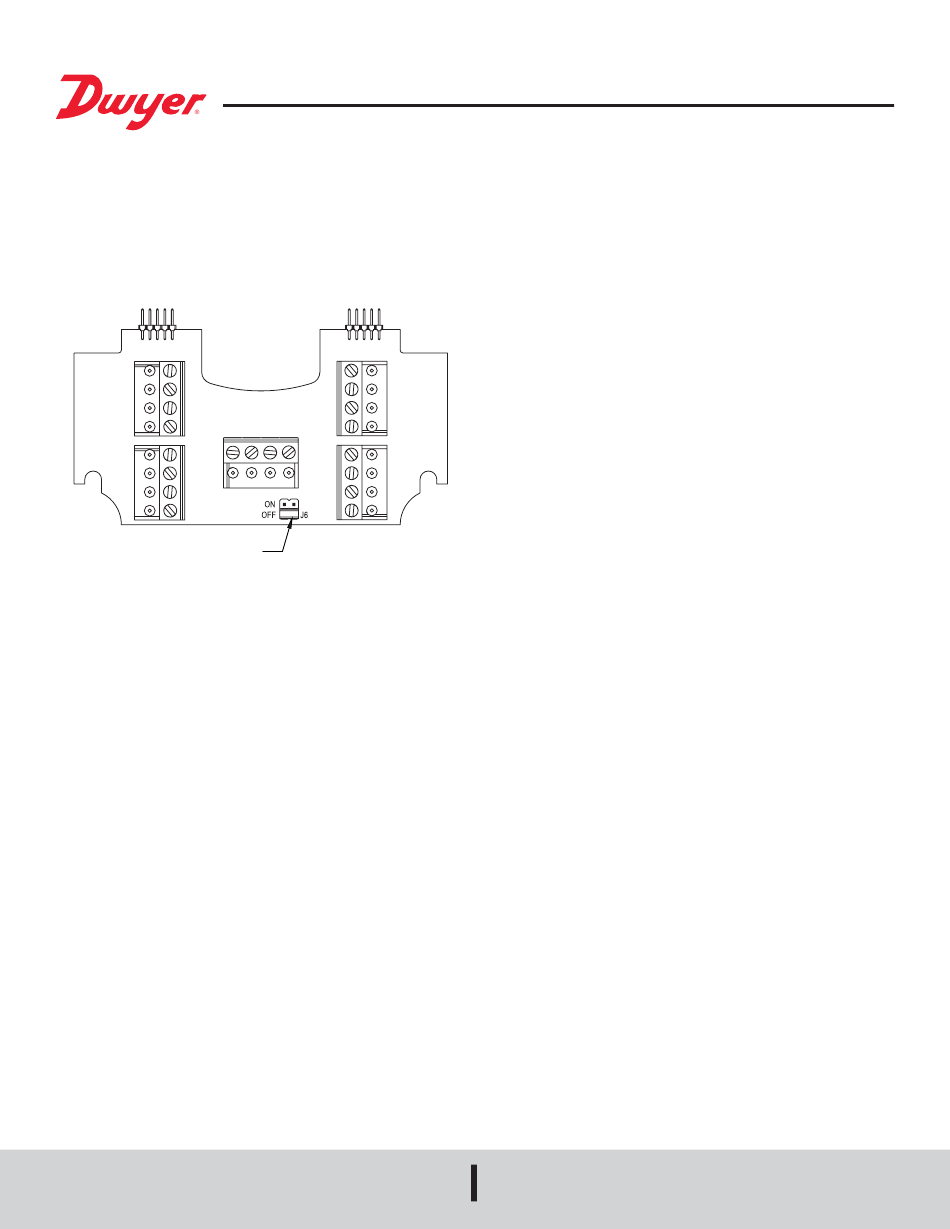

On the terminal block PCBA there is a jumper, J1 (see figure UUUU), that enables or
disables a network termination resistor as defined below:
When the network jumper is placed in the ON position there is a 120 ohm termination
resistor in place. When the network jumper is placed in the OFF position there is no
termination resistor in place.
Default: OFF
NETWORK TERMINATION JUMPER
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
- Operating Instruction
®
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin F-IEF-PT
Modbus
®
is a registered trademark of Schneider Automation, Inc.
www.dwyer-inst.com
e-mail: info@dwyermail.com
Advertisement
Related Manuals for Dwyer Instruments IEF Series
Summary of Contents for Dwyer Instruments IEF Series
- Page 1 When the network jumper is placed in the OFF position there is no termination resistor in place. Default: OFF NETWORK TERMINATION JUMPER Modbus ® is a registered trademark of Schneider Automation, Inc. DWYER INSTRUMENTS, INC. Phone: 219/879-8000 www.dwyer-inst.com P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A. Fax: 219/872-9057 e-mail: info@dwyermail.com...
- Page 2 Read/Write Object Name “Series IEF 607xxx” CharacterString(40) Read/Write ObjectType DEVICE(8) BACnetObjectType Read System Status Operational(0) BACnetDeviceStatus Read Vendor Name “Dwyer Instruments, Inc.” CharacterString Read Vendor Identifier Unsigned Read Model Name “IEF-HN-10-COM” CharacterString Read Firmware Revision “x.x.x” CharacterString Read Application Software Version “x.x”...
- Page 3 Analog Input – Velocity Property Default Value Property Data Type Access Object Identifier BACnetObjectIdentifier Read Object Name “Velocity” CharacterString Read ObjectType ANALOG_INPUT (0) BACnetObjectType Read Present Value Current reading Real Read Status Flags BACnetStatusFlags Read Event State NORMAL (0) BACnetEventState Read Reliability NO_FAULT_DETECTED(0)
- Page 4 Binary Value – Reverse Flow Property Default Value Property Data Type Access Object Identifier BACnetObjectIdentifier Read Object Name “Reverse Flow” CharacterString Read ObjectType BINARY_VALUE (5) BACnetObjectType Read Present Value Inactive (0) BACnetBinaryPV Read Status Flags BACnetStatusFlags Read Event State NORMAL (0) BACnetEventState Read Reliability...
- Page 5 BitString Value – Status Flags Property Default Value Property Data Type Access Object Identifier BSV1 BACnetObjectIdentifier Read Object Name “Status Flags” CharacterString Read ObjectType BITSTRING_VALUE (39) BACnetObjectType Read Present Value {FFFFFFFF FFFF} BitString Read Status Flags BACnetStatusFlags Read Event State NORMAL (0) BACnetEventState Read...
- Page 6 Holding Registers Multi-Address Support Multi-Address support allows a register to be read or written to using different byte Register Description Data Type Range orientations specified by the address range. For example, input register 0003 can 0001 – 0020 Device Name String also be read at 2003, 4003 and 6003 with different byte orientations as listed in Table 0021...
- Page 7 NOTES __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________...
- Page 8 __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ This product uses FreeRTOS (www.FreeRTOS.org) version 9.0.0. A copy of the original FreeRTOS source shall be provided upon request. ©Copyright 2018 Dwyer Instruments, Inc. Printed in U.S.A. 5/18 FR# 444458-03 Rev. 1 DWYER INSTRUMENTS, INC. Phone: 219/879-8000 www.dwyer-inst.com...
