Summary of Contents for Dwyer Instruments RHPX Series

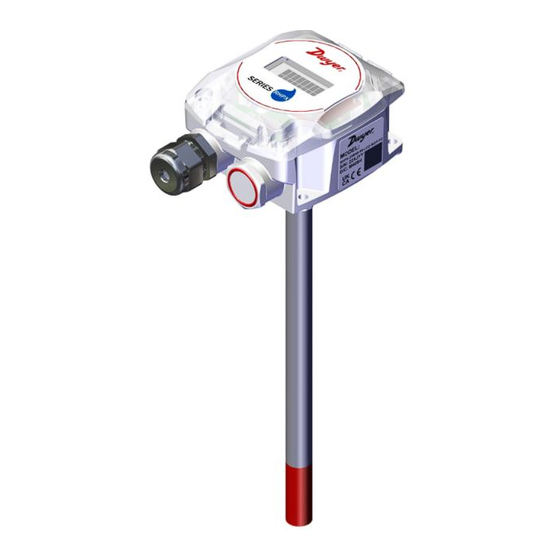

- Page 1 USER’S GUIDE Series RHPX Humidity/Temperature Communicating Transmitter dwyer-inst.com | info@dwyermail.com For latest product manuals: dwyer-inst.com/en/instruction-manuals Bulletin AQ-RHPX-C...
- Page 2 CONTACT Dwyer Instruments, LLC dwyer-inst.com/en/contact-us Toll-Free: 1-800-872-9141 (USA only) Telephone: (219) 879-8000 Fax: (219) 872-9057 Email: info@dwyermail.com The information contained in this document is believed to be correct, but Dwyer accepts no liability for any errors it contains, and reserves...
- Page 3 2 13/32 10 33/64 4x13/64 [60.96] [267.20] [5.08] 2 5/8 5 47/64 [66.68] [145.66] 5 55/64 [148.97] Wall Mount with HDPE Wall Mount Wall Mount with filter with shield HDPE Filter Bronze Filter 1 11/64 2 13/32 [29.92] [60.96] 1 13/64 [30.48] 4x13/64 2 19/32...
- Page 4 Wiring Intelligent Serial Configuration Use maximum 18 AWG wire for wiring terminals. Refer to Figure 1 for wiring The Intelligent Serial Configuration feature enables the device to determine the information. Terminal blocks are removable for ease of wiring. baud rate, parity, and stop bits automatically from Modbus or BACnet serial ®...
- Page 5 Device Communications Control-B (DM-DCC-B): Optional time duration in System Status Operational Device Status minutes Vendor Name “Dwyer Instruments, LLC” No Character Reinitialize Device (DM-RD-B): COLDSTART and WARMSTART String Vendor Identifier Unsigned The password required to execute these functions is: Dwyer Model Name “RHPX-XXXXX-XX...
- Page 6 II. BACnet ANALOG INPUT OBJECTS Property Default Values User Data Type Property Default Values User Data Type Writable Writable Object Identifier Object Identifier Object Identifier Object Identifier Object Name “Relative Humidity” Character String Object Name “Absolute Humidity g/m^3” Character String Object Type Analog Input Object Type...
-
Page 7: Maintenance/Repair
III. BACnet ANALOG VALUE OBJECTS V. BACnet NETWORK PORT OBJECTS Property Default Values User Data Type Property Default Values User Data Type Writable Writable Object Identifier Object Identifier Object Identifier Object Identifier Object Name “Humidity Offset %RH” Character String Object Name “MS/TP”... - Page 8 Modbus is a registered trademark of Schneider Electric USA, Inc. ® ©Copyright 2024 Dwyer Instruments, LLC Printed in U.S.A. 3/24 FR# 444742-00 Rev. 1 Improving the world, one measurement at a time. UNIVERSAL FLOW MONITORS...
