Dwyer Instruments 616WL-2 Installation And Operating Instructions

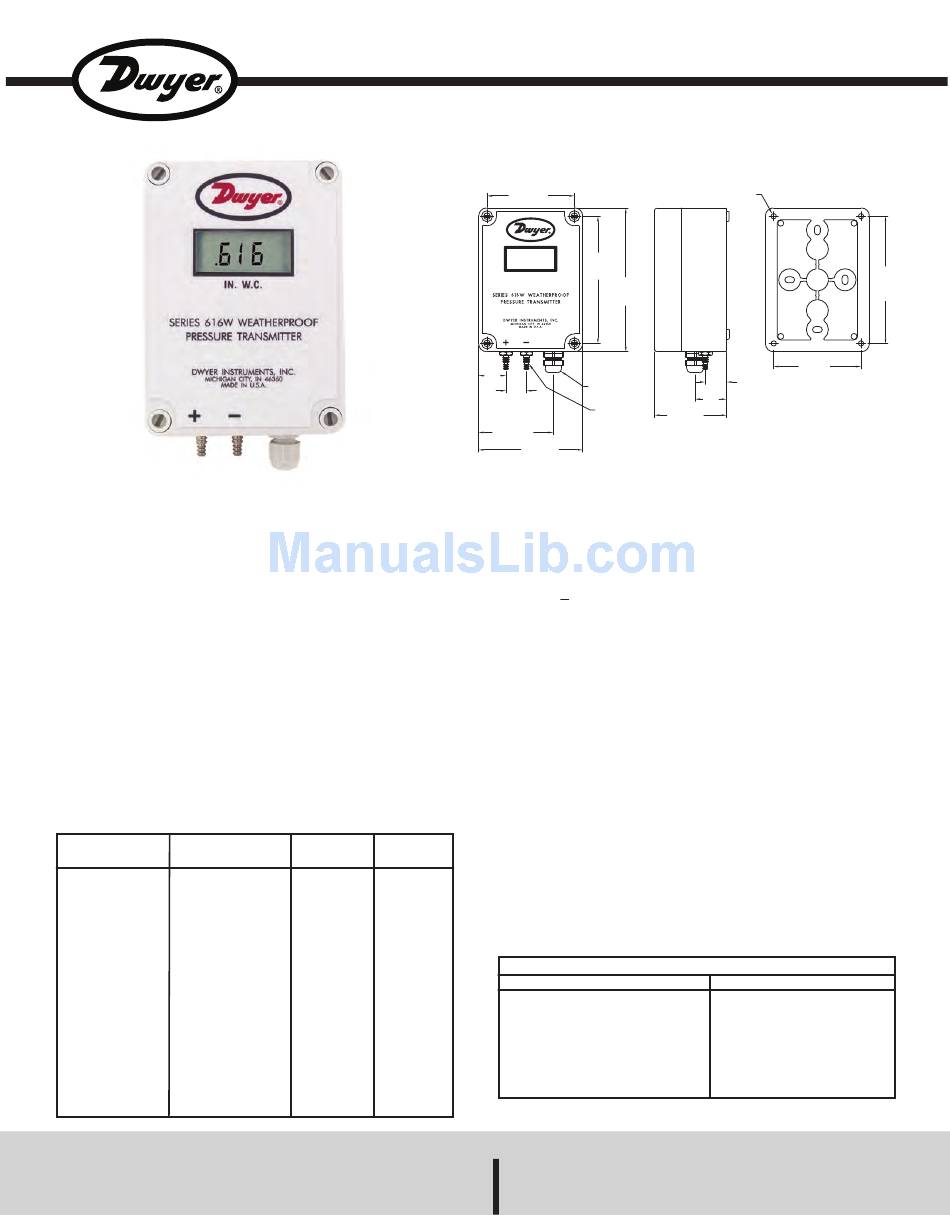

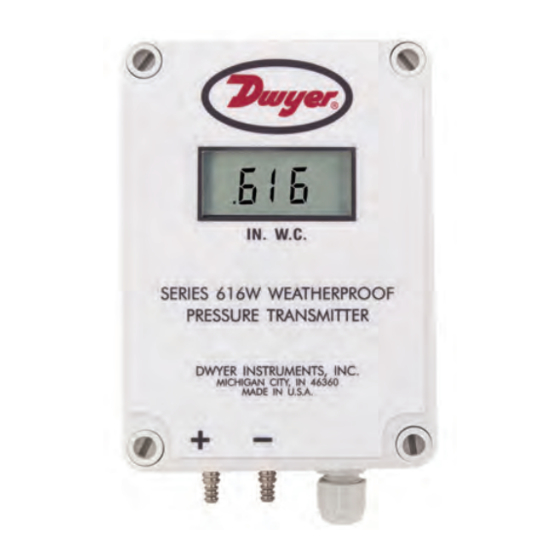

The Dwyer Series 616WL Differential Pressure Transmitter senses the
pressure of air and non-combustible, compatible gases and sends a stan-
dard 4-20 mA output signal.
All models, including those featuring the 3 digit LCD digital read-out, are
factory calibrated to specific ranges as listed in the chart below.
Positive, negative and differential pressures can be measured within a full
span accuracy of ±0.50%. This weatherproof unit is enclosed in a poly-
carbonate case, designed to meet (IP66/NEMA 4X).
The Span and Zero controls are for use when checking calibration. They
are not intended for re-ranging to a significantly different span.

INSTALLATION

1. Location: Select a clean, dry mounting location free from excess
vibration where the temperature will remain between 20 and 120˚F (-6.7
and 49˚C). Distance from the receiver is limited only by total loop resis-
tance. See Electrical Connections below. The tubing supplying pressure to
the instrument can be practically any length required, but long lengths will
increase response time slightly.
SERIES 616WL TRANSMITTER MODELS & RANGES
MODEL PRESSURE
NUMBER RANGE
616WL-2 0-0.25 in. w.c.
0-1 in. w.c.
616WL-4
616WL-12 0.25-0-0.25 in. w.c.
1-0-1 in. w.c.
616WL-14
616WL-22 0-60 Pa
60-0-60 Pa
616WL-32
0-250 Pa
616WL-25
250-0-250 Pa
616WL-35
0-0.25 in. w.c.
616WL-2-LCD
0-1 in. w.c.
616WL-4-LCD
0.25-0-0.25 in. w.c.
616WL-12-LCD
1-0-1 in. w.c.
616WL-14-LCD
0-60 Pa
616WL-22-LCD
60-0-60 Pa
616WL-32-LCD
0-250 Pa
616WL-25-LCD
616WL-35-LCD 250-0-250 Pa
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A.
Series 616WL Differential Pressure Transmitter
Specifications - Installation and Operating Instructions
63/61
[25.00]
DIGITAL
MAXIMUM
DISPLAY
PRESSURE
-
2 psig
4 psig -
-
2 psig
4 psig -
-
13.8 kPa
13.8 kPa -
-
27.6 kPa
27.6 kPa -
0-.250
2 psig
4 psig 0-1.00
-.250-0-.250
2 psig
1.00-0-1.00
4 psig
0-60.0
13.8 kPa
-60.0-0-60.0
13.8 kPa
0-250
27.6 kPa
250-0-250
27.6 kPa
3-1/8
[79.38]
4-17/32
[115.09]
5-1/8
[130.18]
FITTING TO
ACCOMODATE
CABLE DIAMETERS
OF .100 - .260
47/64
[18.65]
1/8 AND 3/16
2-37/64
2-21/32
[3.18 AND 4.76]
[65.48]
[67.47]
I.D. TUBING
3-45/64
[94.06]

SPECIFICATIONS

Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.50% F.S., display accuracy ±0.5%.
Stability: +1% F.S./yr.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 120°F (0 to 48.9°C).
Pressure Limits: See chart.
Thermal Effect: ±0.02% F.S./°F (0.036% F.S./°C) from 77°F
(25°C).
Power Requirements: 12-30 VDC (2-wire).
Output Signal: 4 to 20 mA.
Zero and Span Adjustments: Digital, Push Button Adj.
Loop Resistance: DC; 0-900 ohms maximum.
Current Consumption: DC; 38 mA maximum.
Electrical Connections: Screw-type terminal block.
Process Connections: Barbed, dual size to fit 1/8˝ and 3/16˝
(3.12 and 4.76 mm) I.D. rubber or vinyl tubing.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Vertical, consult factory for other position
orientations.
Weight: Without LCD 17 oz (482 g); with LCD 18 oz (510 g).
Agency Approvals: CE.
CE The following standards were used for CE approval:
Specifications
CENELEC EN 61000-4-2: 2001
CENELEC EN 61000-4-3: 2002
CENELEC EN 61000-4-4: 1995
CENELEC EN 61000-4-5: 2001
CENELEC EN 61000-4-6: 2003
CENELEC EN 55011: 1998
CENELEC EN 61326: 2002
