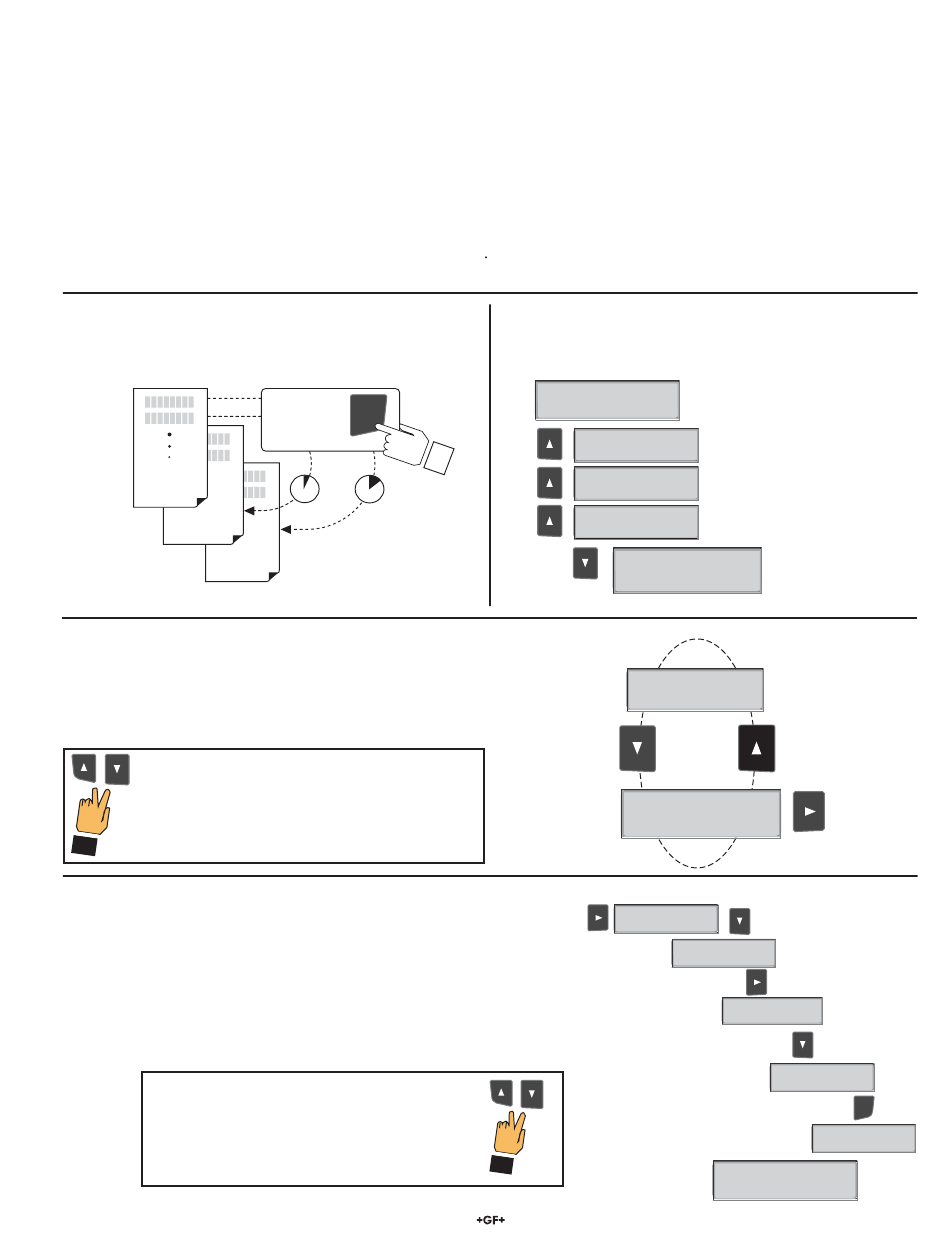

Step 1.
Press and hold ENTER key:
Step 2.
The Key Code is ▲-▲-▲-▼ keys in sequence.
Step 3.
Scroll menu with ▲ or ▼ arrow keys.
Step 4.
Press ► key to select menu item to be edited.
Step 5.
Press ▲ or ▼ keys to edit the fl ashing element.
Step 6.
Press ENTER key to save the new setting and return to Step 3.
Notes on Step 1:
• The View Menu is normally displayed.
• The CALIBRATE and OPTIONS menus require a KEY CODE.
VIEW
CALIBRATE
OPTIONS
Notes on Steps 3 and 4:
• Refer to pages 6 and 7 for complete listing of menu items and their use.
• From the Step 3 display, pressing the ▲ and ▼ keys simultaneously will return
the display to the VIEW menu.
• If no key is pressed for 10 minutes, display will also return to the VIEW menu.
Step 3: Finished Editing?
Press the ▲ and ▼ keys simultaneously after saving
the last setting to return to normal operation.
Notes on Steps 5 and 6:
• All output functions remain active during editing.
• Only the fl ashing element can be edited.
• ► key advances the fl ashing element in a continuous loop.
• Edited value is effective immediately after pressing ENTER key.
• If no key is pressed for 10 minutes unit will restore the last saved value and return to step 3.
• Step 6 (pressing ENTER key) always returns you to Step 3.
• Repeat steps 3-6 until all editing is completed.
Step 5: Made an Error?
Press the ▲ and ▼ keys simultaneously while any
element is fl ashing. This will recall the last saved
value of the item being edited and return you to
Step 3.
8850-2 Conductivity/Resistivity Transmitter
ProcessPro Editing Procedure:
• 2 seconds to select the CALIBRATE menu.
• 5 seconds to select the OPTIONS menu.
• After entering the Key Code, the display will show the fi rst item in the selected menu.
• The fi rst display element will begin fl ashing.
• ► key advances the fl ashing element.
Press &
ENTER
hold for
access:
2s
5s
Notes on Step 2:
If no key is pressed for 5 minutes while display is showing "Enter
Key Code", the display will return to the VIEW menu.
CALIBRATE: ----
Enter Key Code
CALIBRATE: *---
Enter Key Code
CALIBRATE: **--
Enter Key Code
CALIBRATE: ***-
Enter Key Code
Cell Constant:
Standard
Cell Constant:
Standard
Step 3
Relay1 Setpnt:
20.0 uS >
Relay1 Setpnt:
2
0.00 uS
Relay1 Setpnt:
First item in
CALIBRATE menu
>
>
Step 4
Step 5
1
0.00 uS
Relay1 Setpnt:
0
1
.00 uS
Relay1 Setpnt:
9
1
.00 uS
Step 6
ENTER
Relay1 Setpnt:
Saving
Relay1 Setpnt:
19.00 uS >
5
