GF 2290 Instruction Manual

GF 2290 Instruction Manual

Non-contact radar level transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GF Piping Systems
Instruction Manual

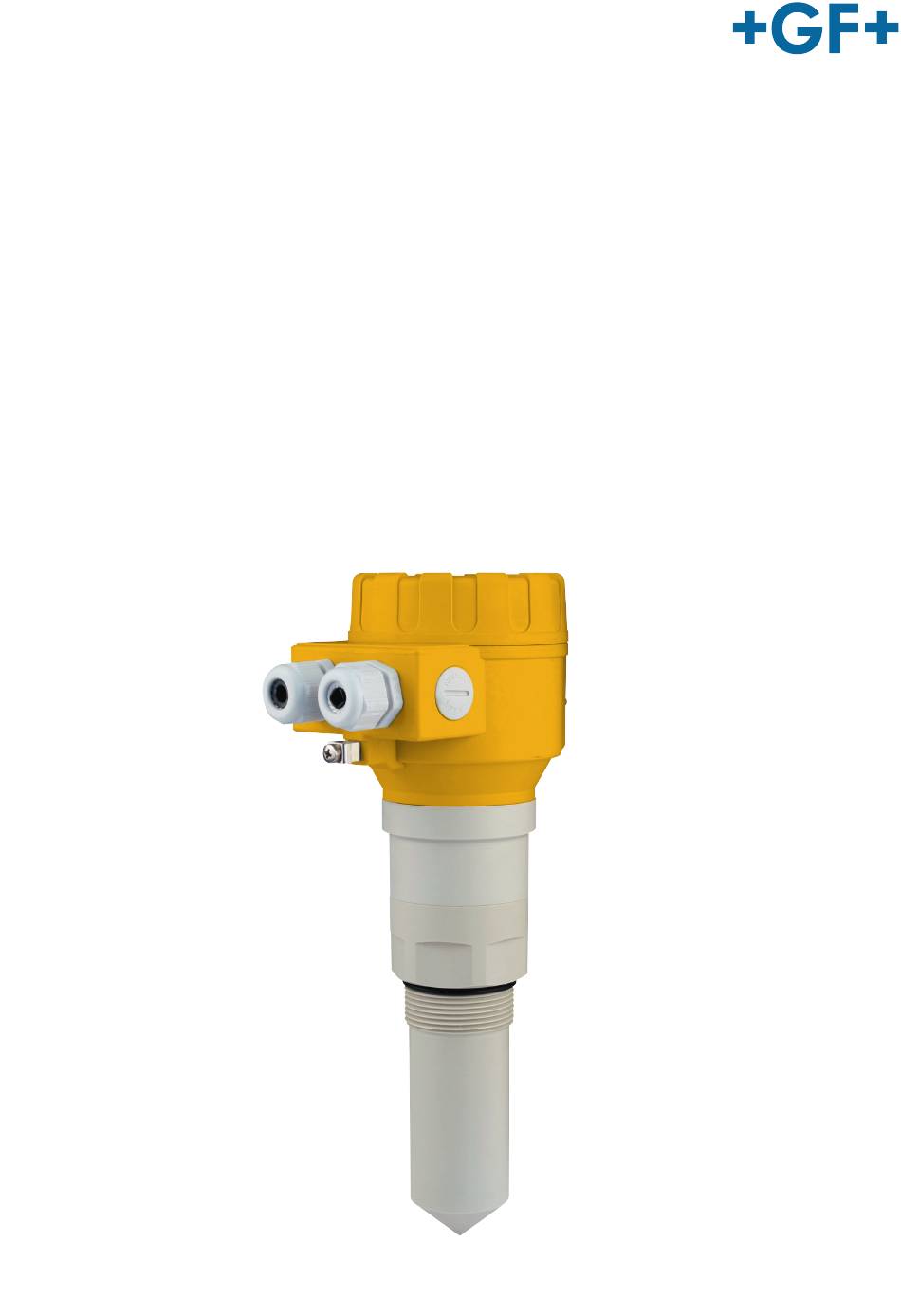

2290 Non-contact Radar Level Transmitter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2290 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GF 2290

Summary of Contents for GF 2290

  • Page 1 GF Piping Systems Instruction Manual 2290 Non-contact Radar Level Transmitter...

  • Page 3: Original Instruction Manual

    Original instruction manual Follow the instruction manual The instruction manual is part of the product and is an important element of the safety concept.  Read and follow the instruction manual.  Always keep the instruction manual available with the product. ...

  • Page 4: Table Of Contents

    Wiring ............................14 8.2.1 Wiring of the devices ......................15 8.2.2 Determine the appropriate power supply voltage ..............16 Loop current checking with hand instrument ..............17 Programming 2290 Level Transmitter ................18 The display unit ........................18 9.1.1 Information Screens ......................20 9.1.2 Echo Map ..........................21 Programming with the display module ................21...
  • Page 5 Accessories ...........................34 Error codes ...........................34 2290 W-100 Parameter table ....................35 Menu map ..........................38 Removal ..........................41 Disposal ..........................41...

  • Page 6: Intended Use

    Instruction manual Intended use The GF type 2290 non-contact microwave level transmitters provide the most advanced, new generation measurement technique of the industrial process automation field. The 2290 is an ideal solution for high precision level transmitting of liquids, slurries, emulsions and other...

  • Page 7: Transport And Storage

    Instruction manual Transport and storage Transport and storage  Protect the product against external forces during transport (impacts, knocks, vibrations etc.).  Transport and / or store the product unopened in its original packaging.  Protect the product from dust, dirt, moisture as well as heat and ultraviolet radiation. ...
  • Page 8 Design and function Instruction manual The 2290 level transmitter is a Pulse Burst Radar operating at 25 GHz (K-band) microwave frequency. The 25 GHz models’ most noticeable advantage over the lower frequency (5-12 GHz) radars are the smaller antenna size, the better focusing, lower dead-band and smaller transmission angle.

  • Page 9: Technical Data

    Instruction manual Technical data Technical data Data Kv value Measured values Level, Distance; Calculated values: Volume, Mass Frequency of the measuring signal ~25 GHz (K-band) 0.2 m – 18 m (0.65 ft – 59 ft) (depending on  of the process Measuring range liquid) <...

  • Page 10: Dimensions

    Technical data Instruction manual Explosion Protection, Ex markings, Ex limit data Type 2290 IECEx (ia) Ex ia IIB T6…T5 Ga/Gb Li: 200µH Ci: 16nF Ui:30V Ii:140mA Pi:1W ATEX (ia) II 1/2 G Ex ia IIB T6…T5 Ga/Gb Li: 200µH Ci: 16nF Ui:30V Ii:140mA Pi:1W...

  • Page 11: Determining The Maximum Measuring Range

    Technical data Determining the maximum measuring range The maximum measuring range of the 2290 radar is dependent upon the circumstances of the application environment and on the selected type of antenna enclosure. Depending on the relative dielectric constant of the measuring medium and the process conditions the maximum measurement range (achievable under the reference conditions) may decrease by even 85%.

  • Page 12: Conditions Of Safe Operation

    Conditions of safe operation Instruction manual Conditions of safe operation To avoid the danger of electrostatic charge accumulation, in case of the type 2290 (with plastic electronic housing or plastic antenna enclosure) the following safety rule shall be observed: ...
  • Page 13 Polarization plane Prior to the installation make sure The emitted radar impulses of that no objects (cooling pipes, 2290 are electromagnetic bracing elements, mixer shaft, waves. The orientation of the other sensors such as pH, polarization plane is the same...

  • Page 14: Wiring

    Installation Instruction manual Empty tank Socket, nozzle Especially in case of standing tanks with hemispherical bottom and in case of tanks which have any The process connection should be implemented equipment inside at the bottom (e.g. that the antenna end should protrude at least heating element, mixer) wrong level 10 mm out of the socket.

  • Page 15: Wiring Of The Devices

    A possible electrostatic discharge can cause damage for the instrument. Do not touch the internal terminals! Water / Vapor To achieve suitable ingress protection GF recommends using the suggested cable outer diameter and properly secure the cable gland. GF also recommends routing the connecting cables downwards to divert rain water or condensed water away from Transmitter.

  • Page 16: Determine The Appropriate Power Supply Voltage

    Connecting a 2290 to a GF Signet 9900 with an i-Go converter. 8.2.2 Determine the appropriate power supply voltage The minimal power supply voltage required by the 2290 devices is depending on the load impedance in accordance to the below diagram:...

  • Page 17: Loop Current Checking With Hand Instrument

    Instruction manual Installation Calculation example: Voltage drop calculated with 22 mA: = 22 mA x load resistance+ U minimal supply voltage (22 mA) input minimum (22 mA) = 22 mA x 250 Ohm + 9 V = 5.5 V + 13.6 V = 19.1 V minimal supply voltage (22 mA) In order to provide operation in the total current loop range the calculation should be also checked with 4 mA:...

  • Page 18: Programming 2290 Level Transmitter

    Programming with EView2 PC configuration software The 2290 include the display unit. The 2290 transmitters are fully operational without the display as well, it is only needed for local programming and / or local measurement displaying. Factory default setting 2290 Level Transmitter The 2290 level transmitters are factory programmed in the following way: ...
  • Page 19 Instruction manual Programming 2290 Level Transmitter Measurement Display Elements of the display: 1. Primary (Measured) Value (PV), in accordance to BASIC SETUP / PV. MODE. 2. Calculation mode of Primary Value (PV), in accordance to BASIC SETUP / PV. MODE.

  • Page 20: Information Screens

     The location (distance) and the amplitude of the echoes (Dist. / Amp.) are listed The listed items are the reflections detected by the 2290 (measured in dB) and the approximate distance from the process connection. The listed values are not accurate...

  • Page 21: Echo Map

    Programming 2290 Level Transmitter Instruction manual 9.1.2 Echo Map Pressing the button in the measurement screen the echo map screen will appear. This screen shows the following information: 1. Echo diagram 2. Actual measured distance 3. Maximum measuring range The echo map screen returns back to main screen after 30 seconds.
  • Page 22 Programming 2290 Level Transmitter Instruction manual Lists Navigation between the lines of a list can be done by pressing the buttons. Pressing the button activates a list item. The selected list item is marked with inverse colour. Exit from a list by pressing the button.

  • Page 23: Menu Structure

    Instruction manual Programming 2290 Level Transmitter Edit window – button combinations In the edit window the following button combinations are available: 1. Recalling the parameters to the state before editing + , pressed at same time for 3 sec.) 2. Recalling default parameters ( + , pressed for 3 sec.)
  • Page 24 Programming 2290 Level Transmitter Instruction manual Primary value mode Parameter: P01: b a Path: BASIC SETUP / PV MODE Description: This mode determines the primary value and the displayed value. It also determines the value which will be proportional to the output current.

  • Page 25: Output Setup

    Instruction manual Programming 2290 Level Transmitter 9.3.2 Output setup Output current mode Parameter: P12:b, where b: 0, 1. Path: OUTPUT SETUP / ANALOG OUTPUT / CURRENT MODE Description: Transmission mode of the current output. • AUTO The output current is calculated from the measured value, output is active.

  • Page 26: Digital Output

    Programming 2290 Level Transmitter Instruction manual Output current error mode Parameter: P12:a, a: 0, 1, 2 Path: OUTPUT SETUP / ANALOG OUTPUT / ERROR MODE Description: Error indication by the current output: • HOLD Error indication has no effect on the output current.
  • Page 27 Instruction manual Programming 2290 Level Transmitter Default value: 300 mm (11.8 inch) Echo selection Parameter: P25:a, where a: 0, 1, 2, 3 Path: OPTIMIZATION / ECHO SELECTION Description: Selection of Echo within the measuring window. In order to avoid disturbing reflections the instrument forms a so-called measuring window around the reflected signal.
  • Page 28 Programming 2290 Level Transmitter Instruction manual Background Image / Mapping function Parameter: OPTIMIZATION / BACKG.ECHO IMAGE / SAVE BACKG. IMAGE Path: The stationary disturbing objects inside the tank which generates unwanted false reflections can be blocked out from the measurement range. For this purpose the instrument needs to map the totally empty tank to create a ”background image”.

  • Page 29: Calculations

    Instruction manual Programming 2290 Level Transmitter 9.3.5 Calculations Specific gravity Parameter: Path: CALCULATION / SPECIFIC GRAVITY Description: Entering a value (other than “0”) of specific gravity in this parameter, the MASS value will be displayed instead of Volume (VOL) in the dimension of tonne or lb/tonne depending on P00 (c) and P02 (b).
  • Page 30 Programming 2290 Level Transmitter Instruction manual Entering the point pairs can be done in arbitrary order, because the device sorts according to ascending order. Both sides of the table have to be strictly monotonic increasing. In case of any errors, warning message will appear.
  • Page 31 Instruction manual Programming 2290 Level Transmitter Tank dimensions Parameter: P41- P45 Path: CALCULATION / V/M CALC. MODE / TANK FUNCTION/SHAPE Description: • DIM1 (P41) • DIM2 (P42) • DIM3 (P43) • DIM4 (P44) • DIM5 (P45) Default value: 0 Standing cylindrical tank with...

  • Page 32: Service

    This function facilitates the user to be able to check the calculations (tank formula, table), outputs, and the additional processing instruments connected to the output. 2290 transmitters can perform simulation on the value of a constant or a variable. To start simulation the instrument must return to Measurement mode.
  • Page 33 Instruction manual Programming 2290 Level Transmitter TRIANGLE WAVE Value of the simulated distance changes linearly between the lowest and highest values with an adjustable cycle time. SQUARE WAVE The simulated value jumps between the lowest and highest values with an adjustable cycle time.

  • Page 34: Repair And Maintenance

    Instruction manual Repair and Maintenance The 2290 does not require maintenance on a regular basis. Repairs during or after the warranty period are carried out exclusively at the Manufacturer. The equipment sent back for repairs should be cleaned or neutralized (decontaminated) by...

  • Page 35: 2290 W-100 Parameter Table

    Instruction manual 2290 W-100 Parameter table Message on Error description Procedure to do Code the screen modify a parameter and return to Measurement mode. If this error still remains, contact the GF service! Parameter integrity error INTEGRITY (Automatically corrected Check the programming! ERROR internal error).
  • Page 36 2290 W-100 Parameter table Instruction manual Parameter name Fix current output Fix forced value on the output current between 3.8 and 20.5 mA for loop current measuring purposes (operation mode = manual) 4 mA Measured and transmitted value (PV) assigned to 4 mA current value...
  • Page 37 Instruction manual 2290 W-100 Parameter table Parameter name Runtime after last Elapsed operating hours of the level transmitter since the last turning reset ON with 0.1 hour accuracy. Service data Number of echoes Service data Position of the Service data...

  • Page 38: Menu Map

    Menu map Instruction manual Menu map...
  • Page 39 Instruction manual Menu map...
  • Page 40 Menu map Instruction manual...

  • Page 41: Removal

     Comply with national regulations, standards and directives. A product marked with this symbol must be taken to a separate collection point for electrical and electronic devices. If you have any questions regarding disposal of the product, please contact your national agent for GF Piping Systems.
  • Page 42 Notes...
  • Page 43 Notes...
  • Page 44 GF Piping Systems Worldwide at home Our sales companies and representatives ensure local customer support in over 100 countries www.gfps.com Argentina / Southern South America France Mexico / Northern Latin America Singapore Georg Fischer Central Plastics Georg Fischer SAS Georg Fischer S.A. de C.V.
