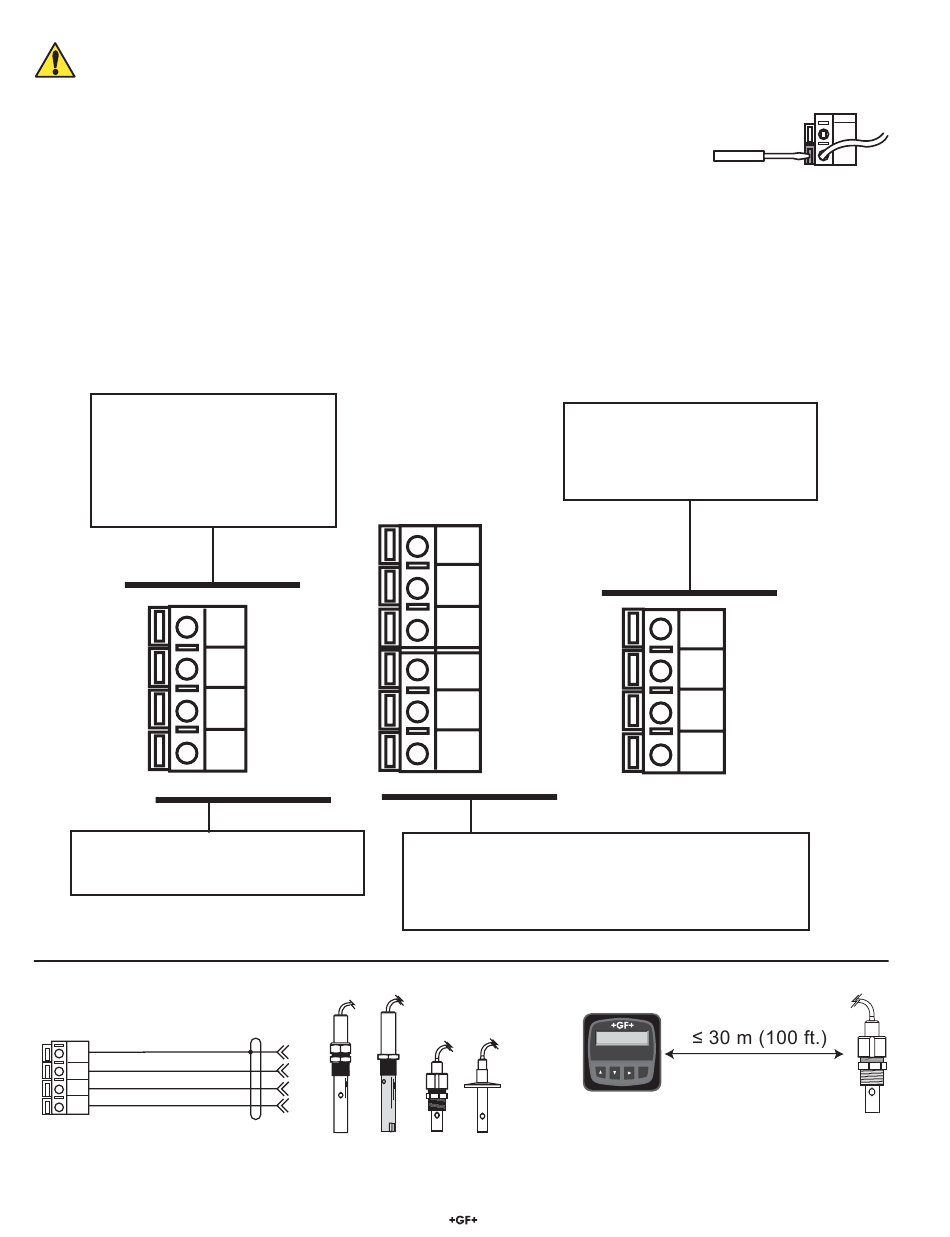

3. Electrical Connections

Caution: Failure to fully open terminal jaws before removing wire may permanently damage instrument.
Wiring Procedure
1. Remove 13 to 16 mm (0.5 to 0.625 in.) of insulation from wire end.
2. Press the orange terminal lever downward with a small screwdriver to open terminal jaws.
3. Insert exposed (non-insulated) wire end in terminal hole until it bottoms out.
4. Release orange terminal lever to secure wire in place. Gently pull on each wire to ensure a good connection.
Wiring Removal Procedure
1. Press the orange terminal lever downward with a small screwdriver to open terminal jaws.
2. When fully open, remove wire from terminal.
Wiring Tips:
• Do not route sensor cable in conduit containing AC power wiring. Electrical noise may interfere with sensor signal.
• Routing sensor cable in grounded metal conduit will help prevent electrical noise and mechanical damage.
• Seal cable entry points to prevent moisture damage.
• Only one wire should be inserted into a terminal. Splice double wires outside the terminal.
Terminals 3 and 4: Loop Power
12-24 VDC ±10% system power
and current loop output.
Max. loop impedance:
50 Ω max. @ 12 V
325 Ω max. @ 18 V
600 Ω max. @ 24 V
Terminals 1-2: Auxiliary power
Provides DC power to measurement circuit.
Required for all 8850 systems.
3.1 Sensor Input Connections
Shield (Sensor Gnd)
14
Black (Iso Gnd)
13
White (Temp In)
12
Red (Signal In)
11
Terminals
2
System Pwr
4
Loop -
System Pwr
3
Loop +
AUX
2
Power -
AUX
1
Power +
Signet 28XX-1
Standard and Certified Cells
Terminals 11-14: Sensor input
11 is conductivity input
12 is temperature input
13 is the isolated signal ground
14 is the sensor earth ground
Relay 2
10
(NO)
Relay 2
9
(COM)
Relay 2
8
(NC)
Relay 1
7
(NO)
Relay 1
6
(COM)
Relay 1
5
(NC)
Terminals 5-10: Relay Outputs
Two SPDT mechanical relays, programmable as:
• High or Low setpoint with adjustable hysteresis.
• Proportional Pulse (400 pulses per minute maximum).
• May be disabled (Off) if not used.
Sensr Gnd
14
(SHIELD)
Iso. Gnd
13
(BLACK)
Temp. IN
12
(WHITE)
Signal IN
11
(RED)
62.50 uS/cm
25.0 C
Signet
Conductivity/Resistivity
Transmitter
ENTER
Cable length is limited to 7.5 m (25 ft.)
where the operating range is above 10MΩ.
8850-2 Conductivity/Resistivity Transmitter
