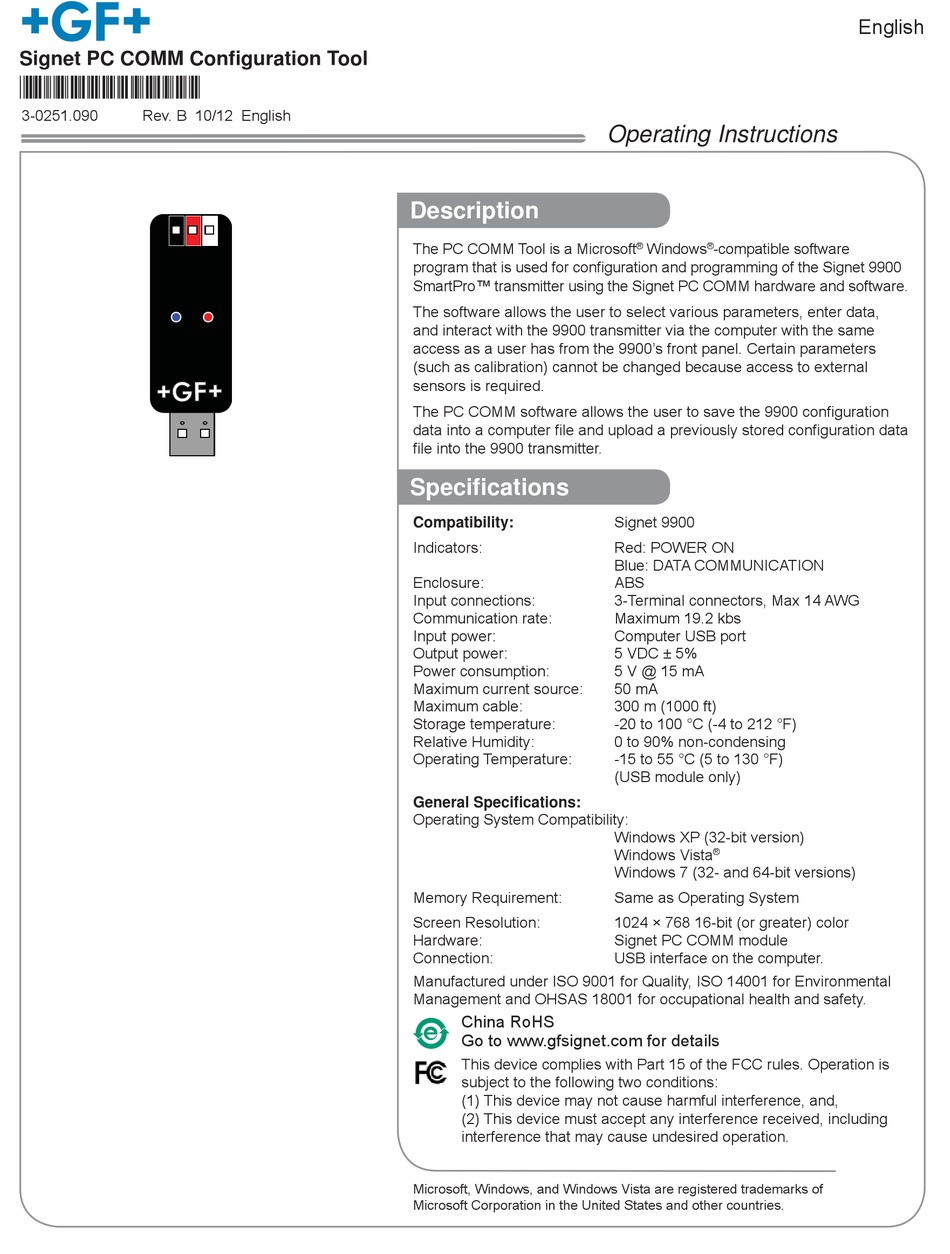

GF Signet 9900 Operating Instructions

Signet PC COMM Confi guration Tool
*3-0251.090*
3-0251.090 Rev. B 10/12 English
Description
The PC COMM Tool is a Microsoft
program that is used for confi guration and programming of the Signet 9900
SmartPro™ transmitter using the Signet PC COMM hardware and software.
The software allows the user to select various parameters, enter data,
and interact with the 9900 transmitter via the computer with the same
access as a user has from the 9900's front panel. Certain parameters
(such as calibration) cannot be changed because access to external
sensors is required.
The PC COMM software allows the user to save the 9900 confi guration
data into a computer fi le and upload a previously stored confi guration data
fi le into the 9900 transmitter.
Specifi cations
Compatibility:
Indicators:
Enclosure:
Input connections:
Communication rate:
Input power:
Output power:
Power consumption:
Maximum current source:
Maximum cable:
Storage temperature:
Relative Humidity:
Operating Temperature:
General Specifi cations:
Operating System Compatibility:
Memory Requirement:
Screen Resolution:
Hardware:
Connection:
Manufactured under ISO 9001 for Quality, ISO 14001 for Environmental
Management and OHSAS 18001 for occupational health and safety.
China RoHS
Go to www.gfsignet.com for details
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and,
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Microsoft, Windows, and Windows Vista are registered trademarks of
Microsoft Corporation in the United States and other countries.
Operating Instructions
® Windows ® -compatible software
Signet 9900
Red: POWER ON
Blue: DATA COMMUNICATION
ABS
3-Terminal connectors, Max 14 AWG
Maximum 19.2 kbs
Computer USB port
5 VDC ± 5%
5 V @ 15 mA
50 mA
300 m (1000 ft)
-20 to 100 °C (-4 to 212 °F)
0 to 90% non-condensing
-15 to 55 °C (5 to 130 °F)
(USB module only)
Windows XP (32-bit version)
Windows Vista
®
Windows 7 (32- and 64-bit versions)
Same as Operating System
1024 × 768 16-bit (or greater) color
Signet PC COMM module
USB interface on the computer.
English
