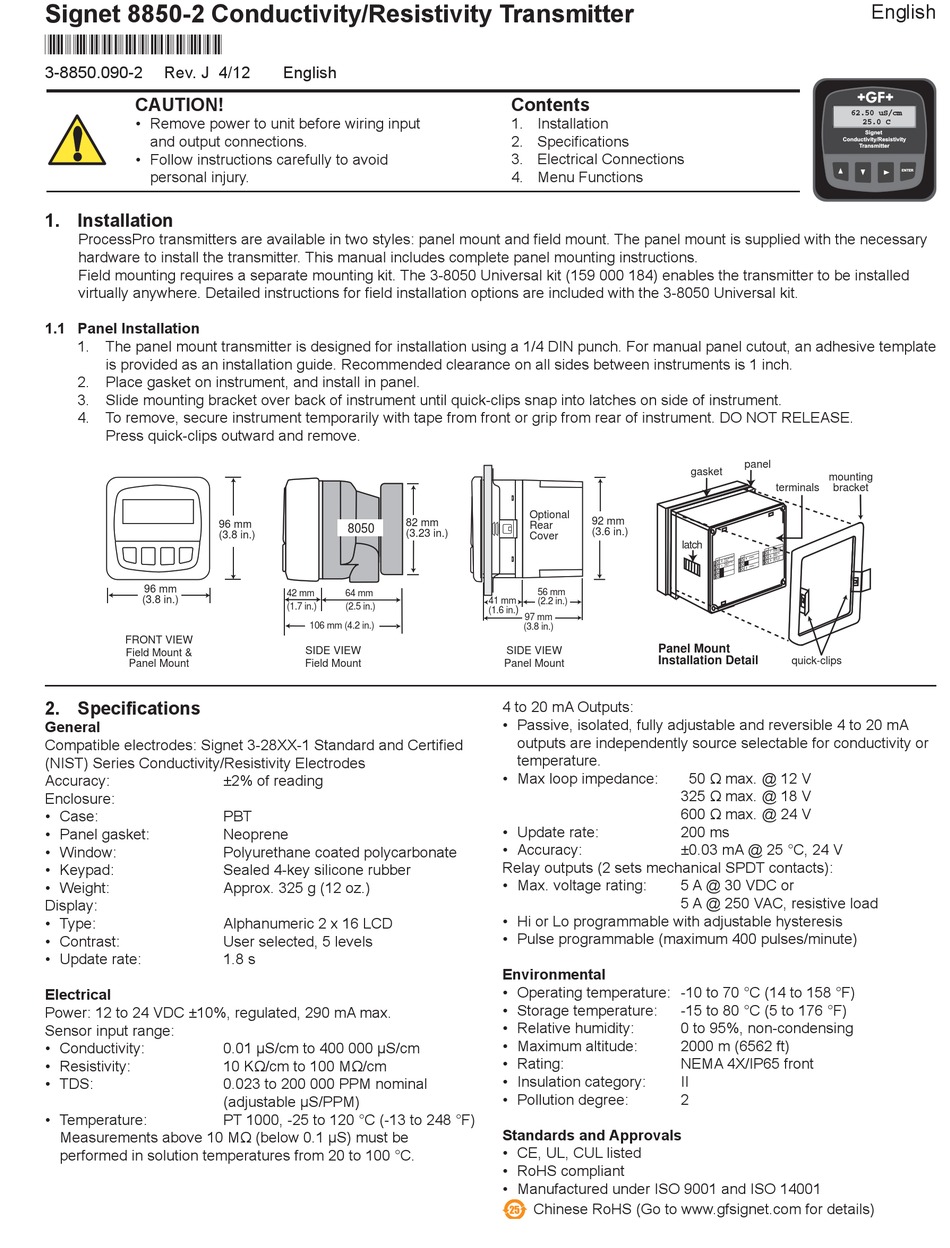

GF Signet ProcessPro 8850-2 Installation Manual

Signet 8850-2 Conductivity/Resistivity Transmitter
*3-8850.090-2*
3-8850.090-2 Rev. J 4/12
CAUTION!
• Remove power to unit before wiring input
and output connections.
• Follow instructions carefully to avoid
personal injury.
1. Installation
ProcessPro transmitters are available in two styles: panel mount and fi eld mount. The panel mount is supplied with the necessary
hardware to install the transmitter. This manual includes complete panel mounting instructions.
Field mounting requires a separate mounting kit. The 3-8050 Universal kit (159 000 184) enables the transmitter to be installed
virtually anywhere. Detailed instructions for fi eld installation options are included with the 3-8050 Universal kit.
1.1 Panel Installation
1. The panel mount transmitter is designed for installation using a 1/4 DIN punch. For manual panel cutout, an adhesive template
is provided as an installation guide. Recommended clearance on all sides between instruments is 1 inch.
2. Place gasket on instrument, and install in panel.
3. Slide mounting bracket over back of instrument until quick-clips snap into latches on side of instrument.
4. To remove, secure instrument temporarily with tape from front or grip from rear of instrument. DO NOT RELEASE.
Press quick-clips outward and remove.
96 mm
(3.8 in.)
96 mm
(3.8 in.)
FRONT VIEW
Field Mount &
Panel Mount
2. Specifi cations
General
Compatible electrodes: Signet 3-28XX-1 Standard and Certifi ed
(NIST) Series Conductivity/Resistivity Electrodes
Accuracy: ±2% of reading
Enclosure:
• Case: PBT
• Panel gasket: Neoprene
• Window: Polyurethane coated polycarbonate
• Keypad: Sealed 4-key silicone rubber
• Weight: Approx. 325 g (12 oz.)
Display:
• Type: Alphanumeric 2 x 16 LCD
• Contrast: User selected, 5 levels
• Update rate: 1.8 s
Electrical
Power: 12 to 24 VDC ±10%, regulated, 290 mA max.
Sensor input range:
• Conductivity: 0.01 μS/cm to 400 000 μS/cm
• Resistivity: 10 KΩ/cm to 100 MΩ/cm
• TDS: 0.023 to 200 000 PPM nominal
(adjustable μS/PPM)
• Temperature: PT 1000, -25 to 120 °C (-13 to 248 °F)
Measurements above 10 MΩ (below 0.1 μS) must be
performed in solution temperatures from 20 to 100 °C.
English
82 mm
8050
(3.23 in.)
42 mm 64 mm
(1.7 in.) (2.5 in.)
106 mm (4.2 in.)
SIDE VIEW
Field Mount
Contents
1. Installation
2. Specifi cations
3. Electrical Connections
4. Menu Functions
Optional
92 mm
Rear
(3.6 in.)
Cover
56 mm
41 mm (2.2 in.)
)
(1.6 in.
97 mm
(3.8 in.)
Panel Mount
SIDE VIEW
Installation Detail
Panel Mount
4 to 20 mA Outputs:
• Passive, isolated, fully adjustable and reversible 4 to 20 mA
outputs are independently source selectable for conductivity or
temperature.
• Max loop impedance:
• Update rate:
• Accuracy:
Relay outputs (2 sets mechanical SPDT contacts):
• Max. voltage rating:
• Hi or Lo programmable with adjustable hysteresis
• Pulse programmable (maximum 400 pulses/minute)
Environmental
• Operating temperature: -10 to 70 °C (14 to 158 °F)
• Storage temperature:
• Relative humidity:
• Maximum altitude:
• Rating:
• Insulation category:
• Pollution degree:
Standards and Approvals
• CE, UL, CUL listed
• RoHS compliant
• Manufactured under ISO 9001 and ISO 14001
Chinese RoHS (Go to www.gfsignet.com for details)
62.50 uS/cm
Conductivity/Resistivity
Transmitter
panel
gasket
mounting
terminals bracket
latch
quick-clips
50 Ω max. @ 12 V
325 Ω max. @ 18 V
600 Ω max. @ 24 V
200 ms
±0.03 mA @ 25 °C, 24 V
5 A @ 30 VDC or
5 A @ 250 VAC, resistive load
