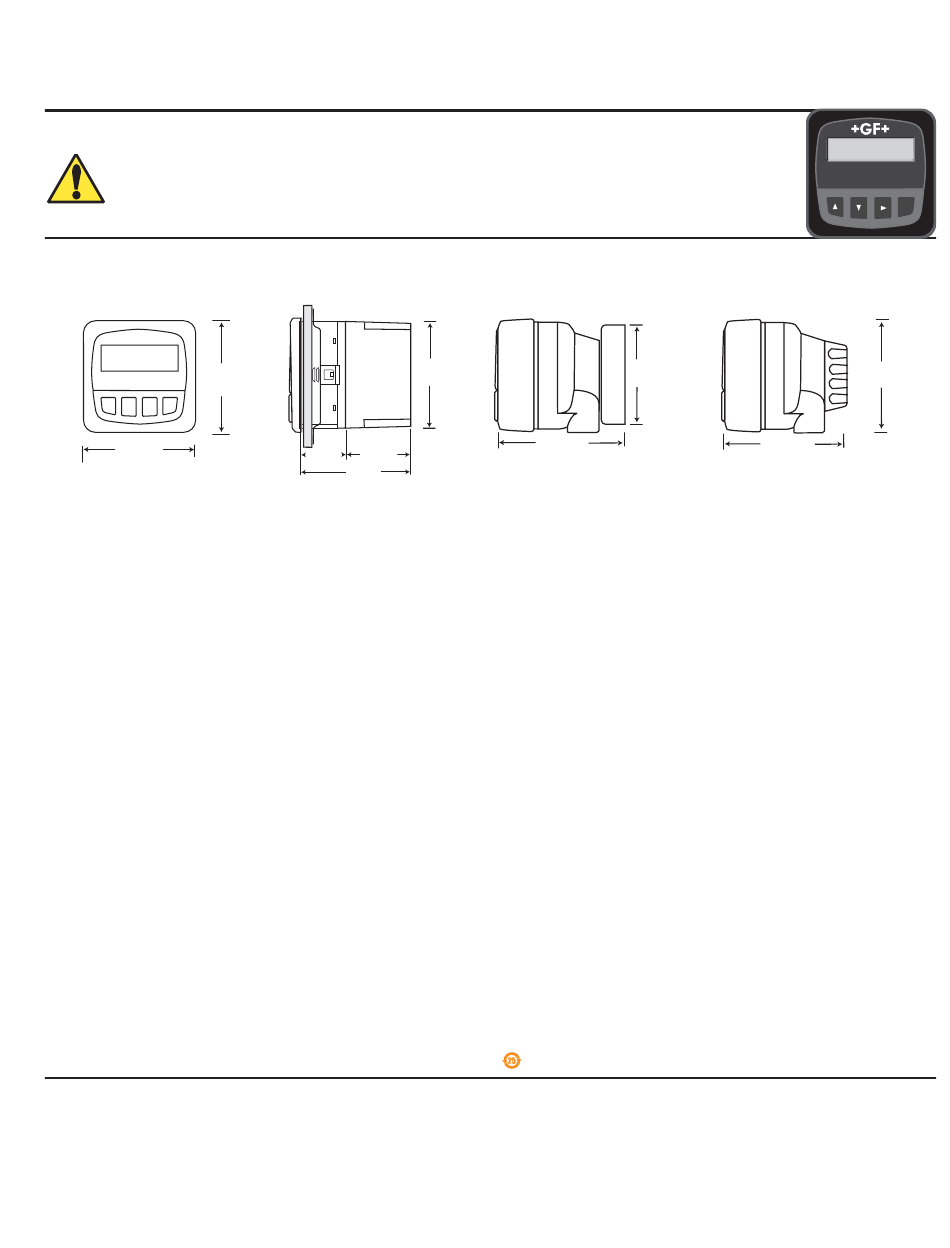

Signet 8550-2 Flow Transmitter
*3-8550.090-2*
3-8550.090-2 Rev. L 10/11 English
WARNING!
Remove power to unit before wiring
input and output connections.
Follow instructions carefully to avoid
personal injury.
1. Specifi cations
Dimensions
96 mm
(3.8 in.)
96 mm
(3.8 in.)
FRONT VIEW
Field Mount &
Panel Mount
General
Compatibility:
Enclosure:
Case:
Panel case gasket:
Window:
Keypad:
Weight:
Display:
Alphanumeric 2 x 16 LCD
Update rate:
Contrast:
Accuracy:
Thermal sensitivity shift:
Electrical
Power:
Sensor Input:
Range:
Sensor power:
Optically isolated from current loop
Short circuit protected
2. Installation
ProcessPro transmitters are available in two styles: panel mount and fi eld mount. The panel mount is supplied with the necessary
hardware to install the transmitter. This manual includes complete panel mounting instructions.
Field mounting requires one of two separate mounting kits. The 3-8051 integral kit joins the sensor and instrument together into a single
package. The 3-8050 Universal kit enables the transmitter to be installed virtually anywhere.
Detailed instructions for integral mounting or other fi eld installation options are included with the 3-8051 Integral kit or the 3-8050
Universal kit.
Optional
92 mm
Rear
(3.6 in.)
Cover
56 mm
41 mm
(2.2 in.)
)
(1.6 in.
97 mm
(3.8 in.)
SIDE VIEW
Panel Mount
Signet Flow Sensors (w/freq out)
PBT
Neoprene
Polyurethane coated polycarbonate
Sealed 4-key silicone rubber
Approx. 325 g (12 oz.)
1 second
User selected, 5 levels
±0.5% of reading @25 ºC
±0.005% of reading per ºC
12 to 24 VDC ±10%, regulated,
220 mA max current
0.5 to 1500 Hz
2-wire: 1.5 mA @ 5 VDC ± 1%
3 or 4 wire: 20 mA @ 5 VDC ± 1%
Contents
1. Specifi cations
2. Installation
3. Electrical Connections
4. Menu Functions
82 mm
(3.23 in.)
106 mm
(4.18 in.)
SIDE VIEW
Field Mount w/
8050 Universal base
Current output:
4 to 20 mA, isolated, fully adjustable and reversible
Max loop impedance:
Update rate:
Accuracy:
Relay outputs (2 sets mechanical SPDT contacts):
Maximum voltage rating: 5 A @ 30 VDC, or 5 A @ 250 VAC,
Programmable for:
• High or Low setpoint with adjustable hysteresis
• Pulse proportional to volume (max 300 pulses/minute)
Environmental
Operating temperature:
Storage temperature:
Relative humidity:
Maximum altitude:
Insulation category:
Pollution degree:
Rating:
Standards and Approvals
CE, UL listed
Immunity and Emissions: EN61326
Manufactured under ISO 9001 and ISO 14001
China RoHS (Go to www.gfsignet.com for details)
English
Flow 6.25 GPM
Total 1234567.8>
Signet Flow
Transmitter
96 mm
(3.8 in.)
102 mm
(4.0 in.)
SIDE VIEW
Field Mount w/
8051 Integral kit
50 Ω max. @ 12 V
325 Ω max. @ 18 V
600 Ω max. @ 24 V
100 ms
±0.03 mA
resistive load
-10 to 70 °C (14 to 158 °F)
-15 to 80 °C (5 to 176 °F)
0 to 95%, non-condensing
2000 m (6562 ft)
II
2
NEMA 4X/IP65 front
ENTER

Advertisement

loading
Need help?

Need help?

Do you have a question about the Signet 8550-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for GF Signet 8550-2

  • Page 1 English Signet 8550-2 Flow Transmitter *3-8550.090-2* 3-8550.090-2 Rev. L 10/11 English Contents WARNING! Flow 6.25 GPM 1. Specifi cations Total 1234567.8> • Remove power to unit before wiring Signet Flow 2. Installation input and output connections. Transmitter 3. Electrical Connections •...
  • Page 2: Electrical Connections

    • High or Low setpoint with adjustable is limited to the following products: hysteresis • 2000 • 2507 • 2551 • 2552 • Volumetric pulse based on totalizer • Open-collector Input signals • May be disabled (Off) if not used. Signet 8550-2 Flow Transmitter...
  • Page 3 No Aux Power Aux Power Sensr Gnd (SHIELD) 2000 515/3-8510-XX 2507 Sensr IN (RED) 2551 2100 Flow Flow 6.25 GPM Total 1234567.8> 2552 2536/3-8512-XX Sensr V+ (BLACK) ENTER Open Coll. Input 2540 1000 ft. (300 m) Signet 8550-2 Flow Transmitter...
  • Page 4: View Menu

    Monitor the Permanent Totalizer value. Gallons Loop Output: Monitor the 4 to 20 mA Loop output. 12.00 mA Last CAL: Monitor date for scheduled maintenance or date of last calibration. (See description in Calibrate Menu.) 02-10-09 Signet 8550-2 Flow Transmitter...
  • Page 5 Press the UP and DOWN keys simultaneously while any element is fl ashing. This will recall the Output Setpnt: Saving last saved value of the item being edited and return you to Step 3. Output Setpnt: 19.00 GPM > Signet 8550-2 Flow Transmitter...
  • Page 6 In Pulse mode, this setting defi nes the duration of the Relay pulse. The 8550 allows any value from 0.1 seconds to 999.9 seconds. 0.1 Seconds > Last CAL: Use this “note pad” to record important dates, such as annual recertifi cation or scheduled maintenance. 2-10-09 All Relay settings repeat for Relay 2. Signet 8550-2 Flow Transmitter...
  • Page 7 fl ow rate is stabilized, while the sudden shift in fl ow is refl ected 10 s 20 s 30 s 40 s 50 s 60 s 70 s very quickly. (Solid blue line) NOTE: The SENSITIVITY function is ineffective if the AVERAGING function is set to zero (seconds). Signet 8550-2 Flow Transmitter...
  • Page 8: Troubleshooting
