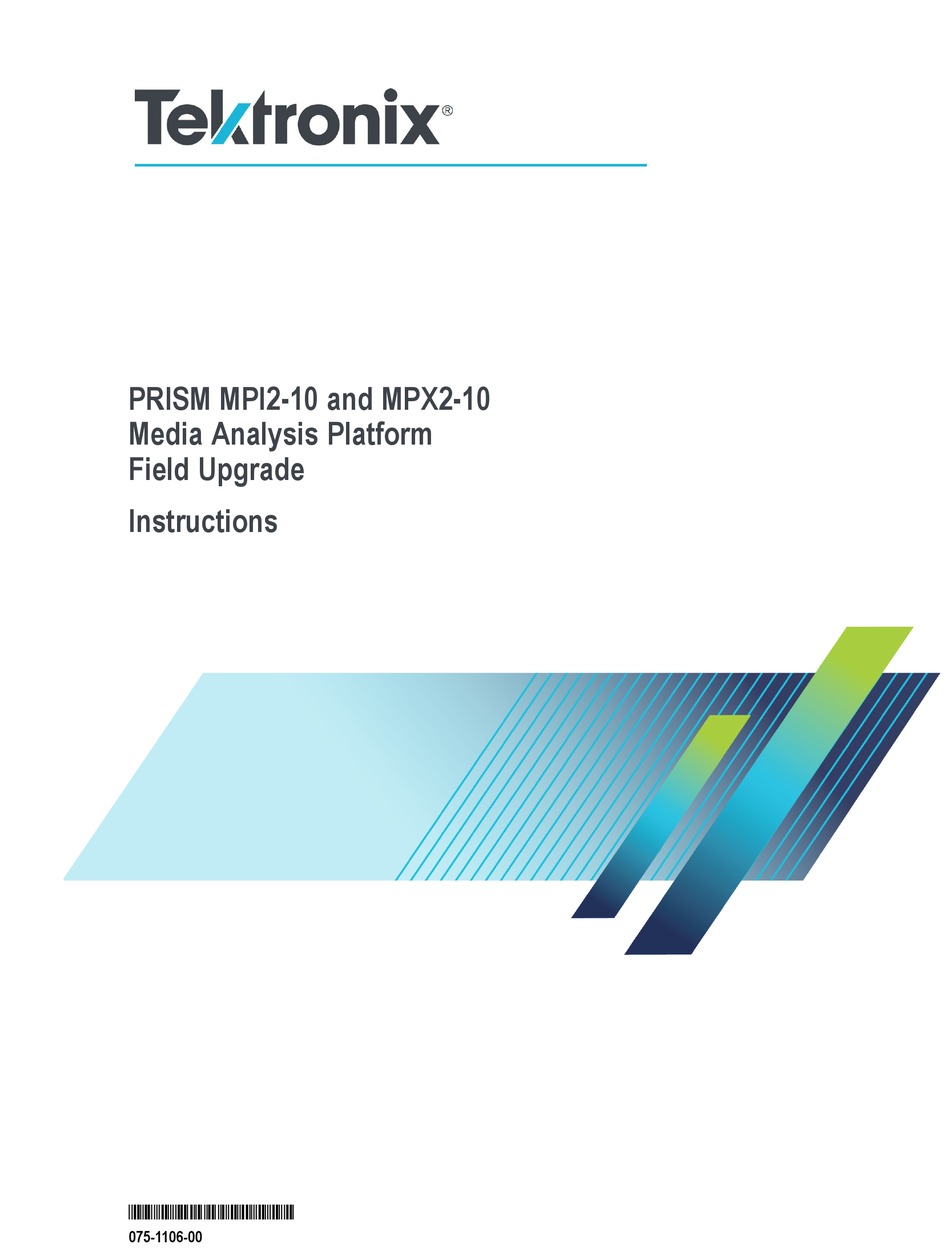

- Page 1 PRISM MPI2-10 and MPX2-10 Media Analysis Platform Field Upgrade Instructions *P075110600* 075-1106-00...
- Page 3 PRISM MPI2-10 and MPX2-10 Media Analysis Platform Field Upgrade Instructions www.tek.com 075-1106-00...
- Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 5: Table Of Contents
Upgrade the PRISM MPI2-10 Eye mezzanine board............MPX2-10 hardware upgrades ..................Recommended tool list ..................Upgrade the PRISM MPX Eye mezzanine board ............Upgrade the instrument firmware ................Upgrade the software license..................Verify the hardware upgrade ..................PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions... -
Page 6: Important Safety Information
Observe all terminal ratings. To avoid fire or shock hazard, observe all ratings and markings on the product. Consult the product manual for further ratings information before making connections to the product. PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions... - Page 7 Improper or prolonged keyboard or pointer use may result in serious injury. Be sure your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress injuries. Use only the Tektronix rackmount hardware specified for this product. PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
-
Page 8: Service Safety Summary
Warning statements identify conditions or practices that could result in injury or loss of life. CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property. PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions... -
Page 9: Symbols And Terms On The Product
find out the nature of the potential hazards and any actions which have to be taken to avoid them. (This symbol may also be used to refer the user to ratings in the manual.) The following symbol(s) may appear on the product: PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions... - Page 10 Important safety information PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
-
Page 11: Kit Description
PRISM FIELD UPGRADE INSTRUCTIONS The spacer post provided in the kit will not be needed for the MPI2-10 12G Eye board upgrade. The MPI2-10 Mixed Media board comes with a second spacer post installed. PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions... - Page 12 Kit description PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
-
Page 13: Mpi2-10 Hardware Upgrades
MPI2-10 hardware upgrades These instructions are for the qualified, trained personnel or personnel familiar with servicing the product. Contact your nearest Tektronix, Inc., Service Center or Tektronix Factory Service for installation assistance. WARNING. Dangerous voltages may be present. To prevent electrical shock, disconnect the power cord from the unit before starting the upgrade procedure. -
Page 14: Upgrade The Prism Mpi2-10 Eye Mezzanine Board
Slide the cover back and then lift it from the back to remove it from the instrument; set the cover aside. Figure 1: Remove the cover PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions... - Page 15 Figure 2: Remove the BNC hardware 4. Using a TORX-driver with a T-10 TORX tip to remove the screw securing the BNC mezzanine board. Figure 3: Remove the screw from the mezzanine board PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
- Page 16 5. Gently lift the back of the BNC mezzanine board from its connector and remove it from the Mixed Media board. Figure 4: Remove mezzanine board from Mixed Media board 6. Locate the new Eye mezzanine board from the kit (Tektronix part number 878-1285-XX). Figure 5: Eye mezzanine board...
- Page 17 The MPI2-10 Mixed Media board comes with a second spacer post installed. The spacer post in the kit will not be needed during the upgrade process. Figure 6: Connect the Eye mezzanine board PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
- Page 18 1.0 N·m (8.85 in-lb). 13. Place the top cover over the instrument and use the TORX-driver with a T-10 TORX tip to reinstall the screws. Tighten these screws to 0.9 N·m (7.97 in-lb). PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
- Page 19 NOTE. The MPI2-10-UP serial number label is included in the upgrade kit. The label lets Tektronix Service know that the instrument contains the upgrade kit. Figure 8: Installing the MPI2-10-UP serial number label 15. Upgrade the instrument firmware. (See page 21, Upgrade the instrument firmware.)
- Page 20 MPI2-10 hardware upgrades PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
-
Page 21: Mpx2-10 Hardware Upgrades
MPX2-10 hardware upgrades These instructions are for personnel who are familiar with servicing the product. Contact your nearest Tektronix, Inc., Service Center or Tektronix Factory Service for installation assistance. WARNING. Dangerous voltages may be present. To prevent electrical shock, disconnect the power cord from the unit before starting the upgrade procedure. -
Page 22: Upgrade The Prism Mpx Eye Mezzanine Board
Use a TORX-driver with a T-10 TORX tip to remove the eighteen screws securing the cover to the instrument. b. Lift the cover up to remove it from the instrument and set it aside. Figure 9: Remove the top cover PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions... - Page 23 Figure 10: Remove the rear panel plate hardware 4. Use a TORX-driver with a T-10 TORX tip to remove the four screws securing the rear panel plate to the instrument. Figure 11: Remove the four rear panel plate screws PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
- Page 24 6. Use a TORX-driver with a T-10 TORX tip to remove the two screws on either end of the back panel. 7. Pull the right side of the back panel away from the instrument. Figure 13: Remove the back panel PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
- Page 25 Slot Host board. 10. Use a TORX-driver with a T-10 TORX tip to remove the four screws on the corners of the Mixed Media board. Figure 15: Remove the Mixed Media board screws PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
- Page 26 Make sure the back panel is pulled out enough to clear the BNC connectors on the Mixed Media module. Excessive pressure on the BNCs will cause damage to the connectors on the Mixed Media and mezzanine boards. Figure 17: Remove Mixed Media board PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
- Page 27 14. Remove the mezzanine board from the connector and set it aside. Figure 18: Remove the mezzanine board 15. Refer to the following figure and install the screw from the kit (Tektronix part number 211-1117-XX) and the spacer post (Tektronix part number...
- Page 28 MPX2-10 hardware upgrades 16. Locate the new Eye mezzanine board from the kit (Tektronix part number 878-1285-XX). 17. Line up the Eye mezzanine board with both of the connectors and press down until it is fully engaged as show in the following figure.
- Page 29 23. Reinstall the rear panel hardware. Tighten the five BNC nuts to 0.9 N·m (7.97 in-lb). 24. Place the cover over the instrument and replace the top cover screws. Tighten the cover screws to 0.9 N·m (7.97 in-lb). PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
- Page 30 NOTE. The MPX2-10-UP serial number label is included in the upgrade kit. The label lets Tektronix Service know that the instrument contains the upgrade kit. Figure 22: Installing the MPX2-10-UP serial number label CAUTION.
-
Page 31: Upgrade The Instrument Firmware
Upgrade the instrument firmware Before you begin Tektronix releases updates to product firmware to add new features or to fix reported problems. You should check the Tektronix Web site regularly for new firmware releases. Perform the following steps to determine the current firmware version on your instrument: 1. - Page 32 flash memory. If the flash memory is corrupted, the instrument will have to be sent to a Tektronix factory service center to have the system firmware restored. DO NOT remove power from the instrument during the upgrade process.
- Page 33 1. Touch the Settings icon to open the Settings menu. 2. Touch Utilities to open the Utilities submenu. 3. Touch Version to open the Version display. 4. Verify the displayed firmware version matches the firmware version that you installed. PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
-
Page 34: Upgrade The Software License
A software license upgrade is required after the installation of a hardware upgrade. Obtain the software license 1. Place your order with a Tektronix sales representative for the upgrade license. Provide the email address of the person who will be responsible for generating upgrade the license key. - Page 35 If the person checking out the license is not the end user of the license, the end user information can be provided here. 7. Download the license file to your PC. 8. Use the license file to install the software upgrade license on your PRISM. PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
- Page 36 > Options menu on your PRISM to verify the Model and Host ID. The model number is called Nomenclature on your PRISM. Figure 25: Example Host ID and Nomenclature (Model) on a PRISM MPI2-10 Troubleshooting. To fix the device identifiers use the following steps: 1.
- Page 37 The IP address is case sensitive. http://xxx.xxx.xxx.xxx:9000/licensePortal.html 4. This opens the Tektronix PRISM License Installation Web page as shown below. The Web page shows the Host ID (a string that uniquely identifies the instrument) and the instrument serial number.
- Page 38 MP-IP-STD and MP-IP-MEAS. Figure 27: PRISM License Installation Web page – license upgrade information review 8. If the license information is correct, click Install to start the license installation. PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
- Page 39 1. Touch the Settings icon to open the Settings menu. 2. Touch Utilities to open the Utilities submenu. 3. Touch Options to open the Options display. 4. Verify that the displayed option(s) match the option(s) you installed. PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
-
Page 40: Verify The Hardware Upgrade
To select the signal format, push the FORMAT button. Use the left (◄) or right (►) arrow button, or push the FORMAT button repeatedly, to select the 1080 59.94i signal format. PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions... - Page 41 6. Configure the SDI input using the following steps: a. Touch the Settings icon ( ) to open the Settings menu. b. Select Inputs to open the Inputs submenu. Figure 29: Settings menu PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
- Page 42 Select Save and close the menu. 7. Double-tap any tile to display it full screen. 8. Press and hold anywhere on screen to display the application banner. Select Eye Pattern Display from the drop-down list. PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
- Page 43 10. Check for a stable eye diagram. Eye Amplitude and the actual wave shape depend on the generator signal. Eye Amplitude is typically 720 mV to 880 mV. Eye Risetime and Eye Falltime are typically 500 ps to 1500 ps. Figure 32: Eye diagram example PRISM MPI2-10 and MPX2-10 Field Upgrade Kit Instructions...
