Festo VPPM Operating Instructions

VPPM
Proportional-pressure regulator
Operating instructions
8110177
2021-11g
[8110179]
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1

Applicable Documents

All available documents for the product è www.festo.com/sp.
2

Safety

2.1

Safety instructions

– Only use the product in its original condition without unauthorised modifica-
tions.
– Only use the product if it is in perfect technical condition.
– Take into account the ambient conditions at the location of use.
– Before working on the product, switch off the power supply and secure it
against being switched on again.
– Store the product in a cool, dry environment protected from UV and corrosion.
Keep storage times short.
2.2

Intended use

The proportional-pressure regulator is intended to regulate a pressure propor-
tional to a specified setpoint value. The product is intended for use in industrial
environments.
2.3

Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers. The qualified personnel have skills and
experience in dealing with electropneumatic (open-loop) control technology.
2.4

Approvals

In combination with the UL inspection mark on the product, the information in this
section must also be observed in order to comply with the certification conditions
of Underwriters Laboratories Inc. (UL) for USA and Canada.
UL certification information
Product category code
File number
Considered standards
UL mark
Tab. 1: UL certification information
– The unit shall be supplied by a power source which fulfils the requirements
on a limited-energy circuit in accordance to IEC/EN/UL/CSA 61010-1 or on
a Limited Power Source (LPS) in accordance to IEC/EN/UL/CSA 60950-1 or
IEC/EN/UL/CSA 62368-1 or a Class 2 circuit in accordance to NEC or CEC.

Electrical data and ambient conditions

Supply voltage
Max. power VPPM-6, VPPM-8
Max. power VPPM-12
Rated pressure
Max. installation height
Tab. 2: Electrical data and ambient conditions
3 Additional information
– Contact the regional Festo contact if you have technical problems
è www.festo.com.
– Accessories and spare parts è www.festo.com/catalogue.
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
QUYX, QUYX7
E322346
UL 610101, CAN/CSAC22.2 No. 610101
24 V DC
7 W
12 W
up to 1.1 MPa
2000 m
4

Product overview

4.1

Function

The proportional-pressure regulator controls the pressure proportionally to a
specified setpoint value. A built-in pressure sensor records the pressure at the
working port and compares this value with the setpoint value. If there are devia-
tions between the setpoint value and actual values, the proportional-pressure
regulator is actuated until the output pressure has reached the setpoint.

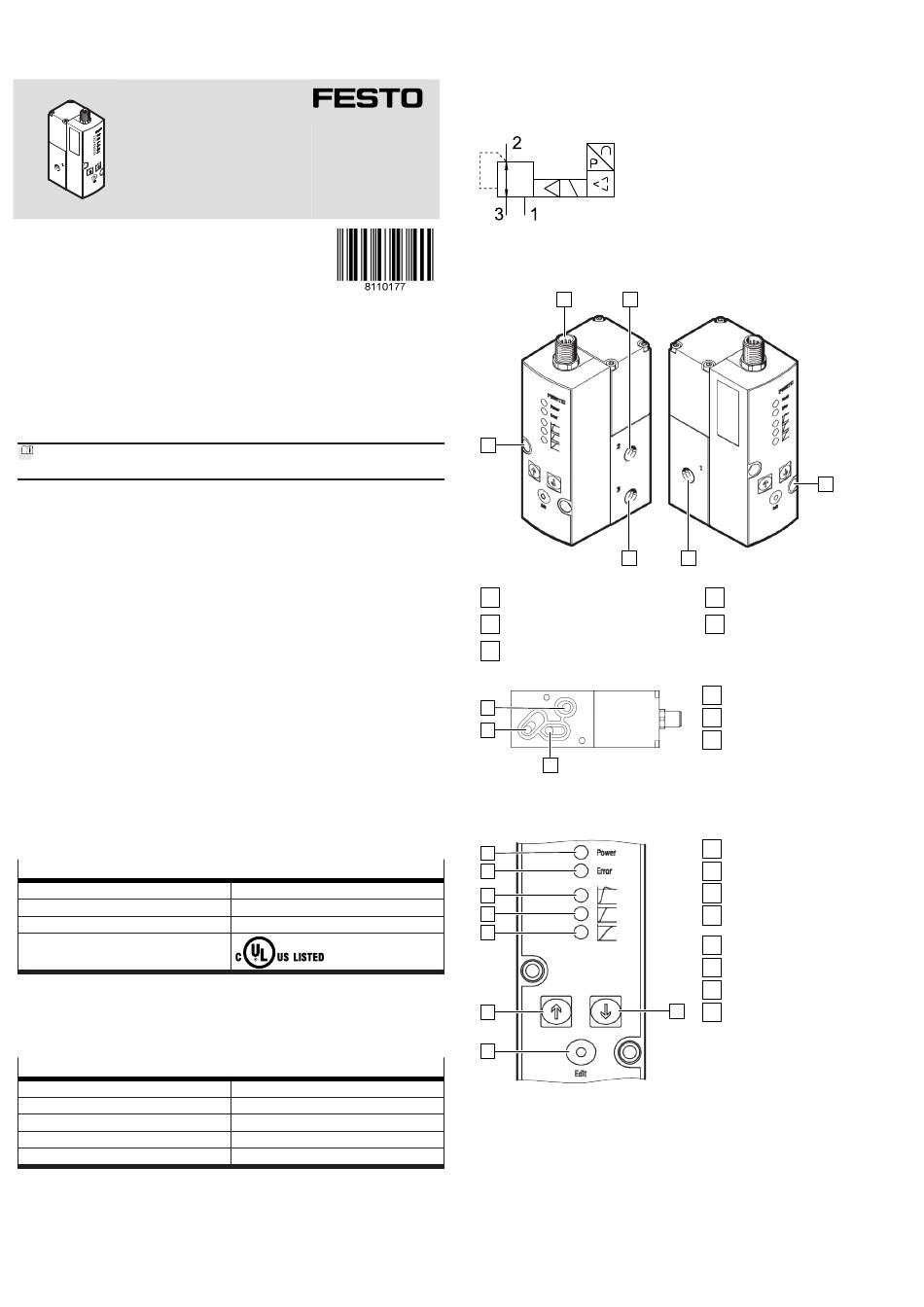

Fig. 1: Pneumatic circuit symbol
4.2

Structure

4.2.1

Product design

2 3
1
5
Fig. 2: Connections and mounting holes (in-line valve)
1 Through-holes for fastening
2 Electrical connecting plug
3 Working air port (2)
2
1
3
Fig. 3: Pneumatic ports (sub base
valve)
4.2.2

Display and control elements

7
6
5
4
3
2
1

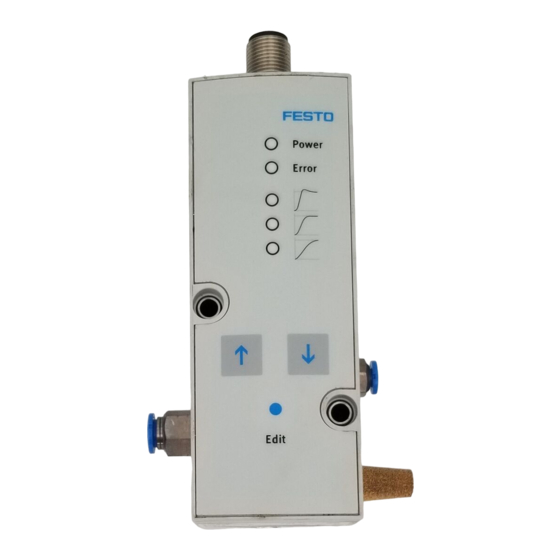

Fig. 4: Display and control elements
5 Transport
Store and transport the product in its original packaging. Observe the weight, the
dimensions and the ambient conditions.
6 Assembly
6.1 Mounting Clearances
During assembly make sure that there is sufficient space for the cable connection
and the tubing connections. Place the device as close to the consumer as pos-
sible. This leads to better control accuracy and shorter response times.
1
4
4 Compressed air port (1)
5 Exhaust air port (3)
1 Exhaust air port (3)
Working air port (2)
2
Compressed air port (1)
3
[Edit] key
1
[UP] key
2
Yellow LED: precise control response
3
Yellow LED: universal control response
4
(factory setting)
5 Yellow LED: fast control response
6 Red LED [error]
7 Green LED [power]
8 [DOWN] key
8
