Festo VEAB Instructions

VEAB
Proportional-pressure regulator
Instructions | Assembly, Installation, Operating
8080725
2018-05a
[8080669]
Translation of the original instructions
1 Further applicable documents
All available documents for the product è www.festo.com/pk.
User documentation
Name, type
H-rail mounting, VAME-P7-T
Mounting plate, VAME-P...-Y
Manifold rail, VABM-P6-15.../-P7-18...
Tab. 1 Documentation on the product
2 Safety
2.1 Safety instructions
– Only use the product in original status without unauthorised modifications.
– Only use the product if it is in perfect technical condition.
– Take into consideration the ambient conditions at the location of use.
– Prior to mounting, installation and maintenance work: Switch off power sup-
ply and secure it from being switched back on.
2.2 Intended use
The proportional-pressure regulator is intended to regulate a pressure propor-
tional to a specified setpoint value.
The product is intended for use in industrial environments.
2.3 Training of skilled personnel
Installation, commissioning, maintenance and disassembly should only be con-
ducted by qualified personnel.
The specialized personnel must be familiar with the installation and operation of
electrical and pneumatic control systems.
3 Further information
– Accessories è www.festo.com/catalogue.
4 Service
Contact your regional Festo contact person if you have technical questions
è www.festo.com.
5 Product overview
5.1 Functional principle
A built-in pressure sensor records the pressure at the working port and compares
this value with the setpoint value. In the event of deviations between the setpoint
value and actual value, the valve regulates until the outlet pressure has reached
the setpoint value.
Fig. 1 Pneumatic circuit symbol
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8080725
Table of contents
Assembly instructions
Assembly instructions
Assembly instructions

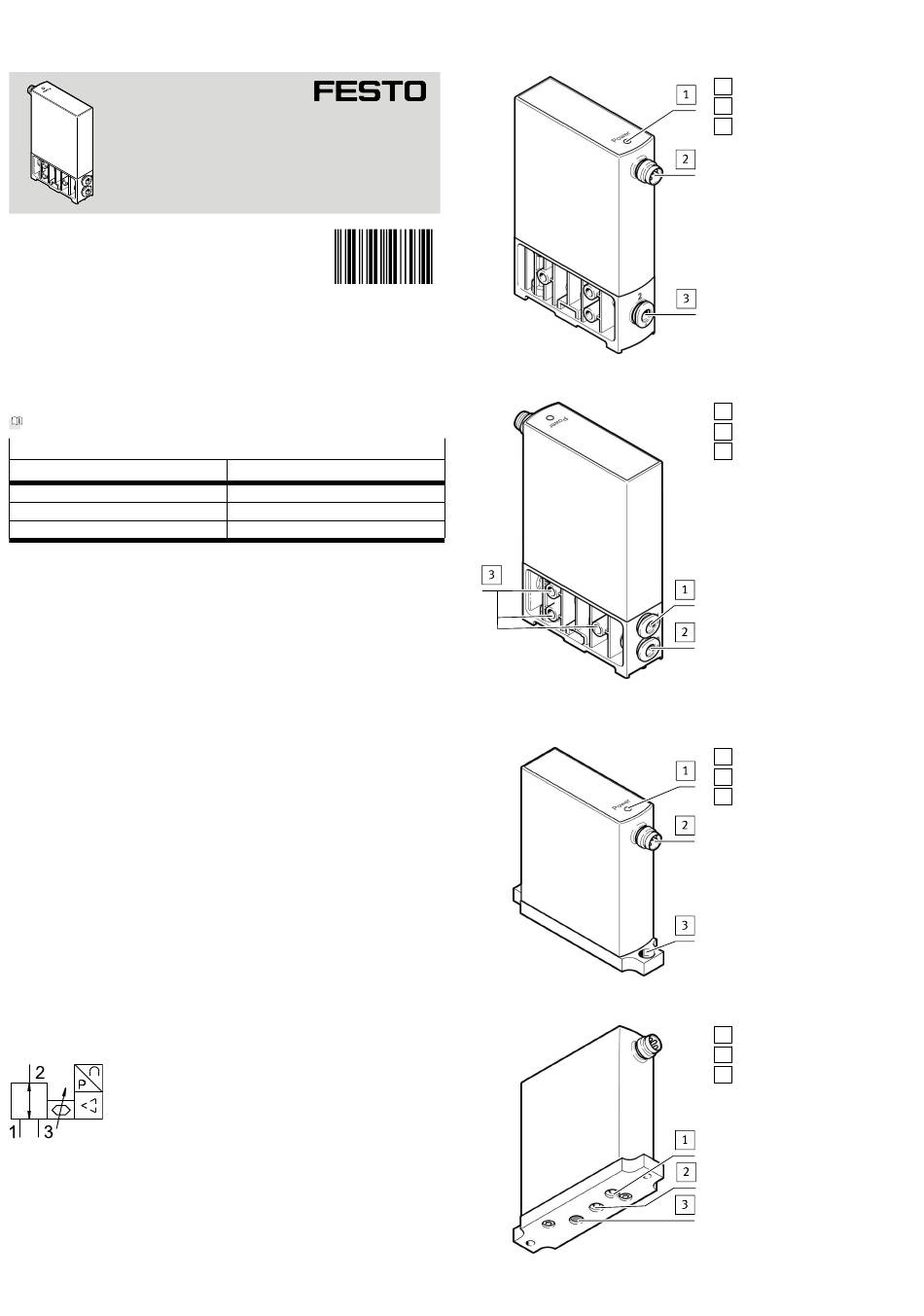

5.2 Configuration
5.2.1 Product design
In-line valve
Fig. 2 Front view
Fig. 3 Rear view
Sub-base valve
Fig. 4 Front view
Fig. 5 Bottom view
1 LED
2 M8 plug
3 Air connection (2)
1 Compressed air connection (1)
2 Exhaust air connection (3)
3 Through-holes for fastening the
valve
1 LED
2 Electrical connection, M8 plug
3 Through-holes (2x) for fastening
the valve to the sub-base
1 Air connection (2)
2 Exhaust air connection (3)
3 Compressed air connection (1)
