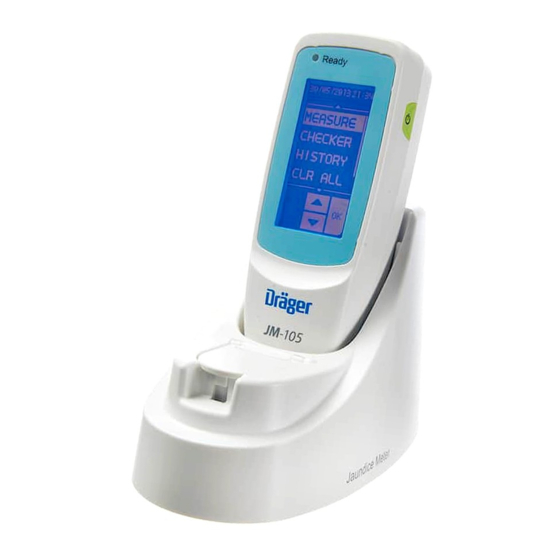

Dräger JM-105 User Quick Reference Manual

Jaundice meter
Hide thumbs Also See for JM-105:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
User Quick Reference Guide
JM-105 Jaundice Meter
Device Operation
WARNING! This quick guide is intended for informational purposes only. It is not a
replacement or substitute for the Instructions for Use. Any use of this medical device
requires a full understanding and strict observation of the Instructions For Use.
SCAN QR code for FAQs, product and application information, usage and reprocessing of
the Dräger medical device.
CONTACT your local representative for further information
© Drägerwerk AG & Co. KGaA

Advertisement

loading
Need help?

Need help?

Do you have a question about the JM-105 and is the answer not in the manual?

Questions and answers

Mandy Johnson
June 30, 2025

what is the expected life of the equipment JM-105 ?

0
Rene Gonzalez
May 23, 2025

does the JM-105 need to be calibrated yearly

0

Subscribe to Our Youtube Channel

Related Manuals for Dräger JM-105

Summary of Contents for Dräger JM-105

  • Page 1 User Quick Reference Guide JM-105 Jaundice Meter Device Operation WARNING! This quick guide is intended for informational purposes only. It is not a replacement or substitute for the Instructions for Use. Any use of this medical device requires a full understanding and strict observation of the Instructions For Use.
  • Page 2 Device Operation Description and Intended Use The Dräger Jaundice Meter JM-105 is intended for use as a screening device for jaundice in the newborn and can be used before, during and after phototherapy. The Jaundice Meter JM-105 provides a transcutaneous measurement of bilirubin in μmol/L, identifying neonates who require a serum bilirubin measurement.

  • Page 3: Select Measure

    Forehead (inpatient) or sternum (outpatient) Place probe tip flat against the baby’s skin, not at an angle, and press lightly until you hear a click. Lift the Jaundice Meter JM-105 from the skin between measurements and pause until the green READY light illuminates again.
  • Page 4 Light Source Checker Recommended the light source checker is performed once a day Select CHECKER Remove the Jaundice Meter JM-105 from the docking station. Press the power switch on. Select MENU, select CHECKER, and press OK. Open the checker lid on the charging unit.
  • Page 5 If so, the unit is ready to use. If not, clean the tip and repeat. If values are still out of range, do not use the device. (contact the Draeger Service department). Measurement Range The Jaundice Meter JM-105 has a measurement range of 0.0 μmol/L to 340 μmol/L. Display Range - >340 - blinks in the measured value field, the measured value is outside the display range.

  • Page 6: Corporate Headquarters

    CORPORATE HEADQUARTERS Drägerwerk AG & Co. KGaA Moislinger Allee 53-55 23558 Lubeck, Germany www.draeger.com AUSTRALIA NEW ZEALAND MELBOURNE (Head Office) AUCKLAND Draeger Australia Pty Ltd Draeger New Zealand Ltd 8 Acacia Place Unit 4, 24 Bishop Dunn Place Notting Hill VIC 3168 East Tamaki, Auckland Tel 1800 372 437 Tel 0800 372 437...
