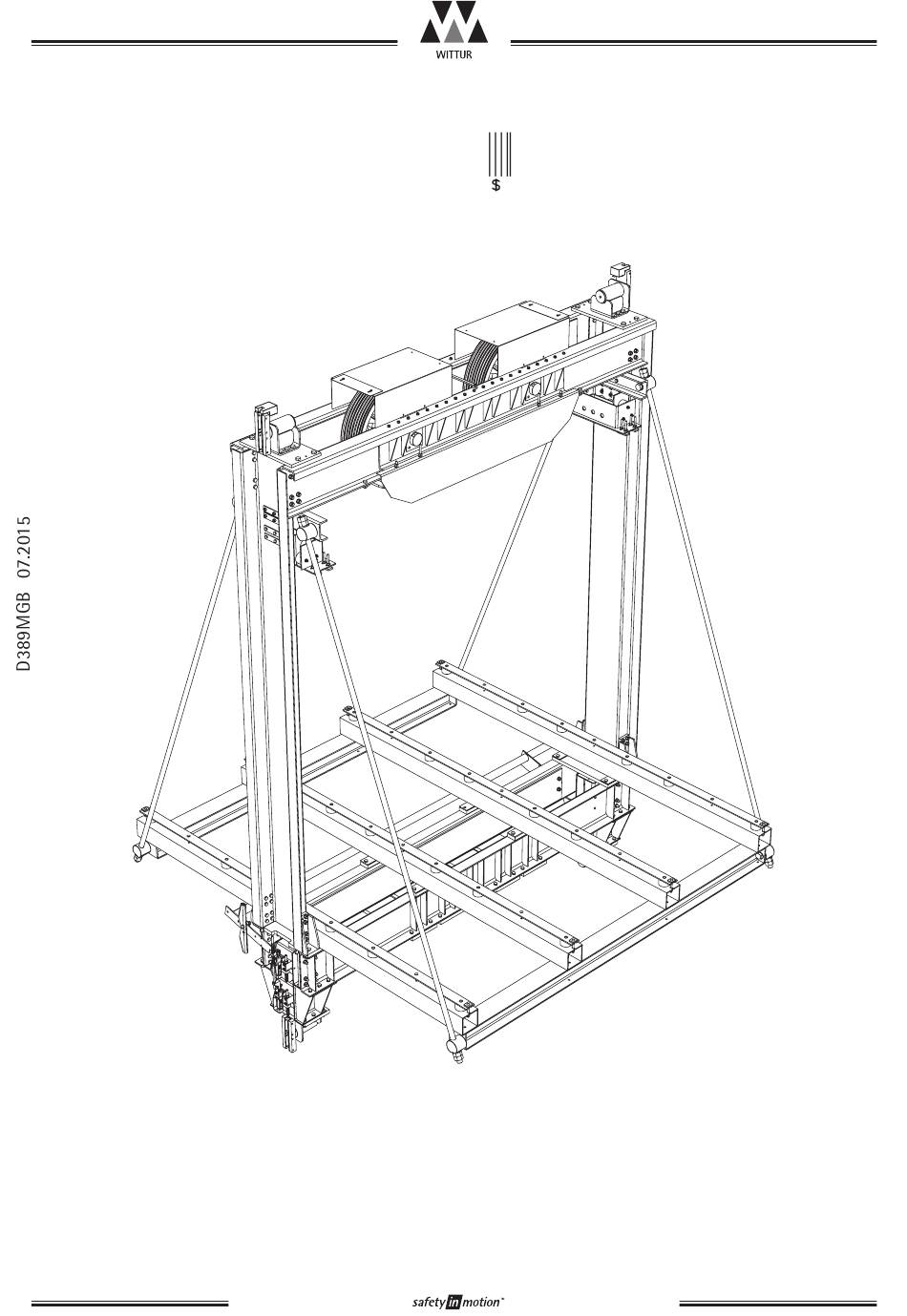

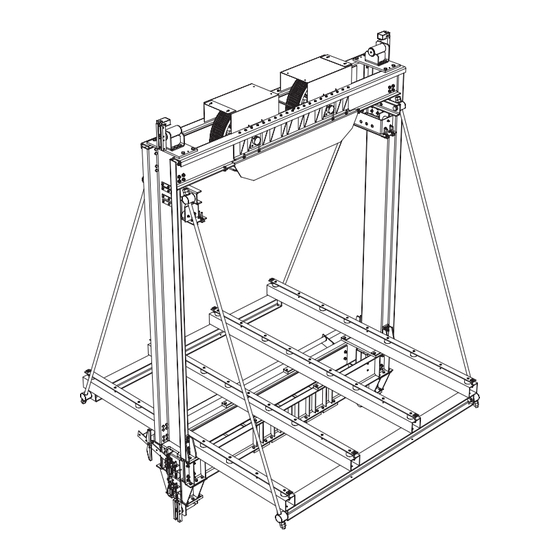

Car Frame WCS60
Suspension 2:1 / 4:1
Operating instructions
Car Frame WCS60 Suspension 2:1 / 4:1
No part of this publication may be reproduced or
translated, even in part, without prior written
permission from WITTUR Austria GmbH.
Änderungen vorbehalten!
*D389MGB 111*
WITTUR Austria GmbH
Sowitschstrasse 1 • A-3270 Scheibbs, Austria
Tel. +43 (0) 7482/42542-0 • Fax +43 (0) 7482/42542-232
http://www.wittur.com • E-Mail: info.at@wittur.com
fa råáèìÉ PM.3.002352.EN
Blatt/ sheet
Datum/ date
Stand/ version C-23.07.2015
Geprüft/ approved WAT/FLE
We reserve the right to make alterations with respect
to the specifications and figures in this manual.
D389MGB.000
11.02.2002
Subject to change without notice!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WCS60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WITTUR WCS60

Summary of Contents for WITTUR WCS60

  • Page 1 Suspension 2:1 / 4:1 Stand/ version C-23.07.2015 Geprüft/ approved WAT/FLE *D389MGB 111* Operating instructions Car Frame WCS60 Suspension 2:1 / 4:1 WITTUR Austria GmbH Sowitschstrasse 1 • A-3270 Scheibbs, Austria Tel. +43 (0) 7482/42542-0 • Fax +43 (0) 7482/42542-232 http://www.wittur.com • E-Mail: info.at@wittur.com...
  • Page 2 Blatt/ sheet D389MGB.001 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions Contents Page 1 General information prior to installation Description and functions ......... . .D389MGB.002 Liability and guarantee .

  • Page 3: General Information Prior To Installation

    Operating instructions General information prior to installation Description and functions The car frame WCS60 is a car frame used for pas- The built-in safety devices are set, synchronized senger-goods and freight elevators with nominal and lead sealed ex-works, according to the order.

  • Page 4: Safety Precautions

    (i.e. machine room). that the factory and order number correspond the rail head width and model The proper assembly and installation of WITTUR the total load (G) car frames requires correspondingly well trained the tripping speed fitting engineers.
  • Page 5 Blatt/ sheet D389MGB.004 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions Safety gear name plate The safety gear device identification indicators are located near the safety block. These consist of a Type test designation name plate and a identification sticker.

  • Page 6: Content Of Supply

    Operating instructions Geprüft/ approved WAT/FLE Geprüft/approved WAT/FLE Operating instructions Operating instructions Operating instructions Car Frame WCS60 Suspension 2:1 / 4:1 Progr. type safety gear Sliding guide shoes Electronic Load Weighing Device SGB01, SGB02, SGB03, SGB05 for car frame and counterweight...
  • Page 7 Blatt/ sheet D389MGB.006 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions Uprights Platform supports incl. lower car fixing material (optional) Accessories: Upper car fixing (incl. isolation buffer) Guide shoes Screw packages...

  • Page 8: Installation

    The safety gear is bolted and synchronized. (1a) (1) If WCS60 is delivered with duplex (double) safety gear, remove one guide rail. Mark the location of the guide before removing. (1a)If WCS60 is delivered with progressive type safety gear, set the cross beam at an angle (see Fig.).
  • Page 9 Blatt/ sheet D389MGB.008 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions (7) Lift OSG-lever by hand and (7-8) (8) ... secure it with a rope or wire around nearest guide fixing...
  • Page 10 Blatt/ sheet D389MGB.009 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 09.09.2003 Geprüft/ approved WAT/FLE Operating instructions Installing Crosshead beam The crosshead beam is delivered pre-assembled. It (3) Fit the guide shoe to the adapter plate (for...
  • Page 11 Geprüft/ approved WAT/FLE Operating instructions Installing isolated platform sup- ports (1-3) If the WCS60 is delivered with isolated platform support beams ... (1) Fit the platform support to the lower cross beam Tighten the screw joints loosely only! (2) Check that the support beams are in horizontal position.
  • Page 12 Blatt/ sheet D389MGB.011 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions Installing the diagonal rods (1) Bolt the fixing brackets to the uprights Use upper fixing holes in the upright (lower group is used for upper car isola- tion).
  • Page 13 Blatt/ sheet D389MGB.012 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions Travelling cable hanger and com- pensation chain fixings Before installing the car, fix the cable hanger and chain fixings to lower cross beam (for position refer to layout draw- ing).
  • Page 14 Blatt/ sheet D389MGB.013 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions Car installation (isolated platform support) (1) Lift the car floor (A) onto the fixing plates (B) (4) Adjust the car floor horizontally of the platform support beams.
  • Page 15 Blatt/ sheet D389MGB.014 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions Car installation (non-isolated platform support) (1) Lift the car floor (A) onto the support plates (4) Install the ring beams below the car floor.
  • Page 16 Blatt/ sheet D389MGB.015 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions 2.10 Finalizing Car installation (1) Fix the upper car isolation to the car roof channel (handtighten T-bolts) (2) Fix the upper car isolation to the upright...
  • Page 17 Ensure 3mm gap between rope guard and ropes. The car must be in the topmost floor (5) If WCS60 is delivered with pulley safety cover when adjusting the cover plates. (D), mount it together with fixing nuts of the rope guards (B).
  • Page 18 Blatt/ sheet D389MGB.017 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions 2.14 Overspeed governor rope fixing (1) Install the rope housing to the safety gear lift- ing lever. Progressive type...
  • Page 19 Blatt/ sheet D389MGB.018 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions 2.15 Adjustment of safety gear syn- chronization (6) Adjust the safety gear in accordance with the The safety gear device (safety gear, synchroniza- operating instruction manual tion, safety gear contact) is delivered pre-adjusted.
  • Page 20 Blatt/ sheet D389MGB.019 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions 2.16 Load weighing device WLWD-M For setup of the load weighing device WLWD-M refer to the operating instruction manual.

  • Page 21: Function Testing

    Blatt/ sheet D389MGB.020 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions Function testing Operational reliability of the installation is assured, Static & dynamic function testing assuming that all guide lines were adhered to dur- ing proper installation.

  • Page 22: Maintenance, Inspection And Repair

    Geprüft/ approved WAT/FLE Operating instructions Maintenance, inspection and repair Maintenance and inspection The WITTUR lift car frame requires little servicing. The lift installation must be immediately taken out of use should any damage or Inspection checks must be carried out at regular...

  • Page 23: Carrying Out Repairs

    Changing the rope pulleys utmost care in order to guarantee safe installation operation. Please contact WITTUR if for any reason something is unclear, or you encounter Follow all the local safety instructions dur- damage that cannot be repaired with the ing the maintenance work.

  • Page 24: Spare Parts List

    Blatt/ sheet D389MGB.023 Car Frame WCS60 Datum/ date 11.02.2002 Suspension 2:1 / 4:1 Stand/ version 11.02.2002 Geprüft/ approved WAT/FLE Operating instructions Spare parts list Component Type Spare part Number... Art. No. Sliding guide shoe SLG4 Guide shoe rail width 29 mm...
