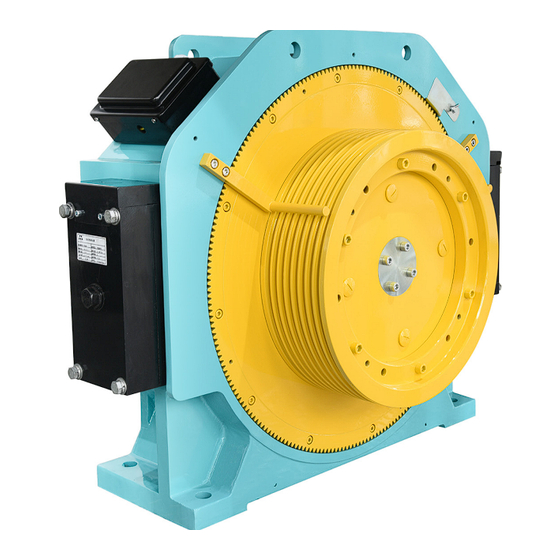

WITTUR WSG-10 Operating And Maintenance Manual

Gearless synchronous lift machines
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating and Maintenance Manual
WSG-10
Gearless Synchronous
Lift Machines
No part of this publication may be reproduced
or translated, even in part, without prior written
permission from WITTUR.
Subject to change without notice!
www.wittur.com
任何书面形式的印刷、翻译或复印需经威特集团
的书面确认。
威特集团保留修改本说明的权利，而不另行通知！
Code
J40069
Version
Date
11.29.2016
info.cn@wittur.com
www.wittur.com
© Copyright WITTUR 2015
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSG-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WITTUR WSG-10

Summary of Contents for WITTUR WSG-10

  • Page 1 Gearless Synchronous Date 11.29.2016 Lift Machines No part of this publication may be reproduced 任何书面形式的印刷、翻译或复印需经威特集团 info.cn@wittur.com or translated, even in part, without prior written 的书面确认。 www.wittur.com permission from WITTUR. © Copyright WITTUR 2015 Subject to change without notice! 威特集团保留修改本说明的权利，而不另行通知！ www.wittur.com...
  • Page 2 WSG-10 with block brake WITTUR reserves the right to correct or change the contents of this manual and these product details without prior notice. We expressly reserve the right to make technical changes which improve the lift machines or their safety standards without prior notice.

  • Page 3: Table Of Contents

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 Index 1. GENERAL SAFETY INSTRUCTIONS......3 2. PRODUCT DESCRIPTION..........5 3. NAMEPLATE..............6 4. TYPE CODE..............7 5. TECHNICAL DATA............8 6. DIMENSION DRAWING..........10 7. SCOPE OF SUPPLY............10 8. TRANSPORT AND STORAGE........11 9.

  • Page 4: General Safety Instructions

    Note The WSG-10 lift machines are intended for use in an Intended use enclosed, lockable machine room or shaft to which only qualified personnel and personnel authorised The WSG-10 lift machines have been manufactured by the customer have access.
  • Page 5 Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 • High surface temperatures may occur on the external parts of the machine. Therefo re, no temperature-sensitive parts may be Warning in contact with these parts or attached to them.

  • Page 6: Product Description

    Code J40069 2. PRODUCT DESCRIPTION The gearless WSG-10 lift machines are designed by seats (5) which designed for mechanical evacuation. outer rotor for gearless traction lifts with or without The wheels is intent to adapt to the system for the a machine room.

  • Page 7: Nameplate

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 3. NAMEPLATE The nameplate of the lift machine is on the motor. The nameplate of the brake is on the brake. Subject to changes without notice!

  • Page 8: Type Code

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 4. TYPE CODE Example G - 10 . G - 10 . X3X4 X5X6X7 X8X9 Synchronous motor Frame type Overall length Identifyed by: 1, 2, 3, 4...

  • Page 9: Technical Data

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 5. TECHNICAL DATA Site conditions Duty type S3 - 60% Up to 1,000 m Sheave Ø450mm Max. Attitude (At high altitude decrease this value) Traction sheave hardness Min.
  • Page 10 Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 Synchronous 32-pole Motor Type WSG-10.2 Suspension Rated Torque [Nm] S3-60%, 240s/h Groove profile Sheave Ø Dt[mm] Loads Q [kg] up to 1250 v[m/s] [rpm] [kW] [Hz] 19.7...

  • Page 11: Dimension Drawing

    WSG- 10.2 WSG- 10.3 WSG- 10.4 Position Grooves 7. SCOPE OF SUPPLY • Lift machine WSG-10 according to order specification Options: • Operating instructions • Mechanical evacuation • Delivery note • Brake remote release system (for MRL solution) • Quali cation certi cate •...

  • Page 12: Transport And Storage

    Operating and Maintenance Manual Code J40069 8. TRANSPORT AND STORAGE The WSG-10 lift machines leave the factory in perfect condition after being tested. Make a visual check for any external damage immediately upon their arrival on site. If any damage incurred in transit is found, make a notice of claim in the presenceof the carrier.

  • Page 13: Installation

    The machine or base frame should be mounted Degree of protection on rubber pads for vibration damping. WSG-10 Lift machines are designed with degree of The machine is fastened using 4 × M24 bolts Note protection IP 41. Make sure that the cable entries to (strength class 8.8).

  • Page 14: Electrical Connection

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 10. ELECTRICAL CONNECTION 10.1 General 10.2 Motor connection / Winding protection The electrical connection of the motor and the The electrical connection may only be winding monitoring devices is made in the terminal made by a quali ed electrician.
  • Page 15 1. Loose the screw terminal by anticlockwise rotation The currents speci ed under the machine data for the series WSG-10 refer to duty type S3-60%. This 2. Plug the SUPU terminal in the bonding hole. must be taken into account when selecting the cable 3.

  • Page 16: Speed/Position Measuring System

    Code J40069 10.3 Speed/Position measuring system PTC-thermistor Lift machine of WSG-10 are equipped with ECN1313 The PTC thermistor of stator iron must be EnDat or ERN1387 encoder from Heidenhain GmbH. evaluated by the elevator control system in or encoder of TS5213N2503 from TAMAGAWA.

  • Page 17: Measuring System Ecn 1313 Endat

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 10.3.3 Measuring system TS5213N2503 (TAMAGAWA) 10.3.1 Measuring system ECN 1313 EnDat Resolution : 2048 Resolution : 2048 Operating voltage: Operating voltage: Data interface: sine and cosine...

  • Page 18: Brake

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 10.4 Brake Monitoring the brakes The brakes are supplied and held with 110V DC . The switching state of the brakes is monitored 75-80V DC for holding voltage is preferred for best using dust-proof micro switches with gold contacts.

  • Page 19: Commissioning

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 11. COMMISSIONING The following points should be checked or completed: • Remove all securing, auxiliary and installation tools from the danger area. • Check that the lift machine is used for its intended purpose and that the permissible ambient conditions are met.

  • Page 20: Operation And Maintenance

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 12. OPERATION AND MAINTENANCE 12.1 General 12.2 Maintenance intervals The regulations concerning operation, maintenance Relubricate the bearings see section 12.3 and inspection in accordance with the applicable...

  • Page 21: Lubricating Instructions

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 12.3 Lubricating instructions 12.4 Brake remote release for MRL solution After working 7,000 hours need to inject grease for A brake remote release system would be required lubricating bearing again.

  • Page 22: Mechanical Evacuation Device

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 12.5 Mechanical evacuation device When the mechanical evacuation device ordered, a Assembly fixed gear is mounted on the traction sheave. In urgent • Clean the traction sheave and the rotor ange.

  • Page 23: Brake

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 12.7 Brake Electromagnetic brakes is a kind of special Procedure of assembling and adjustment product for lift using. It is always pre- 1. Screw the adjustment sets into the bottom place of adjusted before delivery.
  • Page 24 Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 5. When the gap is about 0.55mm, use a feeler gauge 7. After setting, power on the brake. The moving plate measuring the gap (operation gap) between the would be pulled in.
  • Page 25 Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 Operation and safety instruction Maintenance • Ensure working situation of brake is inside the • The WB brake requires a high quality of installation min. Ambient condition...

  • Page 26: Replacing The Measuring System

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 12.8 Replacing the measuring system The measuring system (ECN1313 & ERN1387) Disassembly is only accessible from the rear side of the • Remove the cable cover from the measuring motor.
  • Page 27 Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 Assembly TS5213N2503 Disassembly • Plug in the measuring system • Loosen the clamping ring on the measuring system (2mm Allen screw). • Insert the M5×45 fastening screw in the hollow •...

  • Page 28: Replacing The Measuring System

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 12.9 Replacing the measuring system Fault Possible cause Remedy • Motor not connected in proper phase sequence • Connect motor correctly • Measuring system not properly connected •...

  • Page 29: Accessories

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 13. ACCESSORIES 13.1 Connecting cable for measuring systems Converter Connection Encoder Order number Emerson Unidrive ECN1313 EnDat Z320WSGS30010V0X Yaskawa-L1000 Schneider Altivar Z320WSGS30006V0X Monarch ERN1387 Meiden VT...

  • Page 30: Mechanical Evacuation

    Gearless Synchronous Lift Machines Page Date 11.29.2016 WSG-10 Version Operating and Maintenance Manual Code J40069 13.3 Mechanical evacuation 13.5 Brake manual release In urgent situation, like power off or emergency In order to open the brake in the shaft, a manual brake rescure, in case the system weight at car side equals release is needed.

  • Page 31: Sapre Parts

    W007598 (for manual) Brake (WSG-10.2) ×2+ Brake (WSG-10.3) W007599 (for manual) Brake (WSG-10.4) ×2+ Brake (WSG-10.1) with remote release W009963 (5m) Brake (WSG-10.2) with remote release W009964 (7m) ×2+ Brake (WSG-10.3) with remote release W009965 (5m) Brake (WSG-10.4) with remote release W009966 (7m) ×2+...
  • Page 33 YOUR GLOBAL PARTNER FOR COMPONENTS, MODULES AND SYSTEMS IN THE ELEVATOR INDUSTRY More information about Wittur Group available on-line.
