AXIOMTEK CEM312 Quick Installation Manual page 2

Connectors
Connector Description
SODIMM1 Channel 1 DDR3L SO-DIMM Socket
SODIMM2 Channel 0 DDR3L SO-DIMM Socket
SS1 COM Express
SS2 COM Express

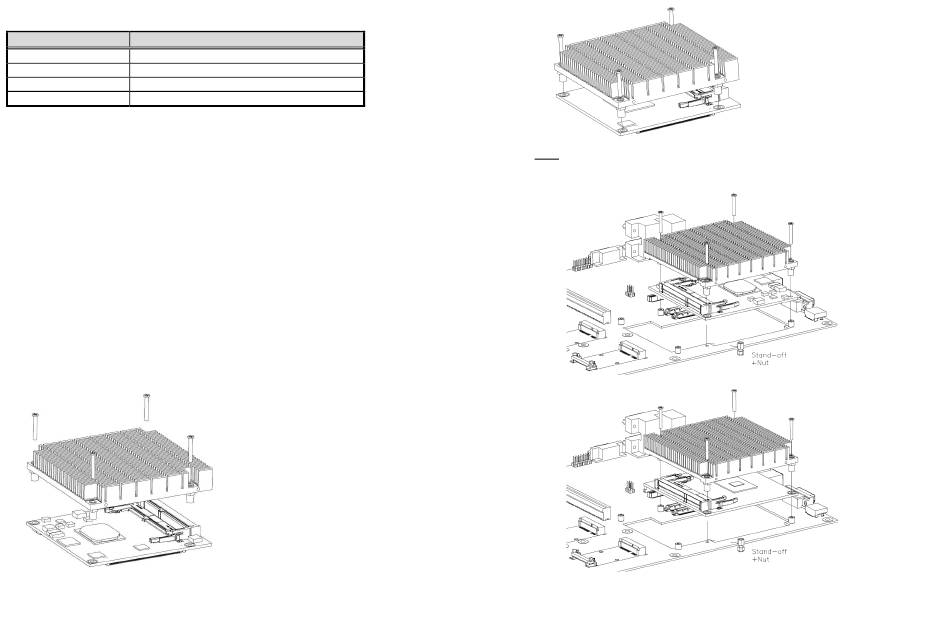

Installing Thermal Solution
For thermal dissipation, a thermal solution enables the CEM312/313's
components to dissipate heat efficiently. All heat generating components
are thermally conducted to the heatsink in order to avoid hot spots. Figure
below illustrates how to install the thermal solution on CEM312/313.
1. There is a protective plastic covering on the thermal pads. This must
be removed before the heatsink can be mounted.
2. Each heatsink is designed for a specific CEM module. The thermal
pads on the heatsink are designed to make contact with the necessary
components on the CEM module. When mounting the heatsink you
must make sure that the thermal pads on the heatsink make complete
contact (no space between thermal pad and component) with the
corresponding components on the CEM module. This is especially
critical for CEM modules that have higher CPU speeds (for example
1.46GHz or more) to ensure that the heatsink acts as a proper thermal
interface for cooling solutions.
3. Before installing the heatsink to the CPU module, please apply thermal
grease on the CPU die. This CPU module has four assembly holes for
installing heatsink plate. Use the four screws to secure the heatsink
plate to the CEM312/313. Be careful not to over-tighten the screws.
2
TM
Connector
TM
Connector
Black Anodized
Heatsink
Aluminum
CEM312
9418D312010E
©
Copyright 2018 Axiomtek Co., Ltd.
Version A2 November 2018
Printed in Taiwan
Note: When installing CEM312/313 on CEB94006 or CEB94011, please
add stand-off and secure with nut. Then, use the screws to
secure heatsink plate to CEM312/313 as indicated in images
below.
9418D312010E
©
Copyright 2018 Axiomtek Co., Ltd.
Version A1 November 2018
Printed in Taiwan
Silver Anodized
Aluminum Heatsink
CEM313
CEM312
CEM313
