Installation, Operation and
Maintenance Instructions

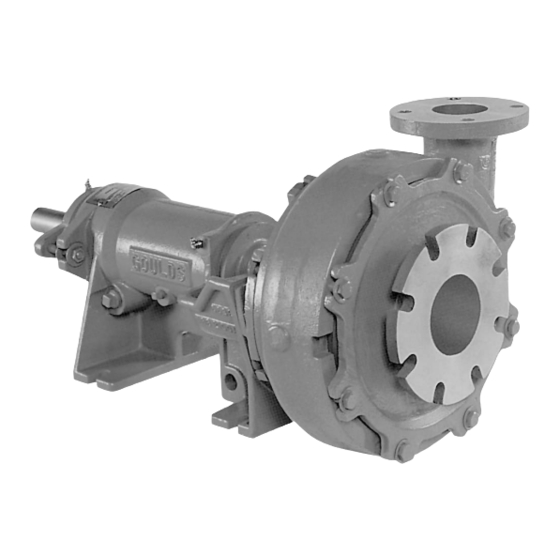

Model JC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Goulds pumps JC and is the answer not in the manual?

Questions and answers

Related Manuals for ITT Goulds pumps JC

Summary of Contents for ITT Goulds pumps JC

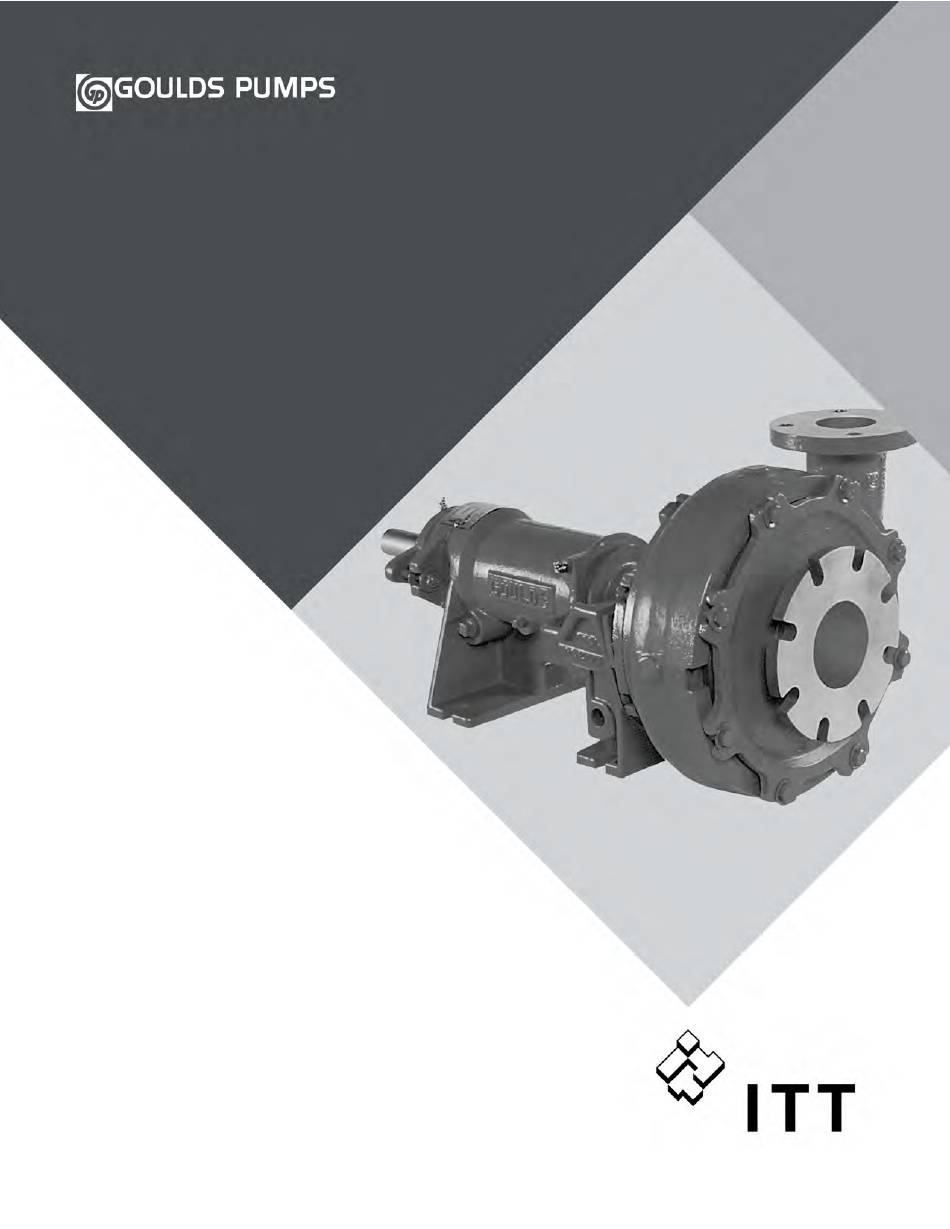

  • Page 1 Installation, Operation and Maintenance Instructions Model JC...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1 Introduction and safety............................. 3 1.1 Important Safety Notice..........................3 1.2 Safety warnings............................3 1.3 Safety ................................ 4 1.4 General precautions ..........................5 1.5 ATEX Considerations and Intended Use....................8 1.6 Parts ................................ 10 2 General Information ............................
  • Page 4 Table of Contents 4.4.6 Water hammer..........................24 4.4.7 Freezing ............................24 4.5 Locating problems ........................... 24 4.5.1 Conditions leading to insufficient or no discharge................. 24 4.5.2 Conditions leading to excessive power consumption..............24 5 Preventative Maintenance ..........................27 5.1 General comments ..........................27 5.2 Maintenance schedule ..........................

  • Page 5: Introduction And Safety

    ITT Goulds pumps will provide safe, trouble-free service when properly installed, maintained, and operat- Safe installation, operation, and maintenance of ITT Goulds Pumps equipment are an essential end user responsibility. This Pump Safety Manual identifies specific safety risks that must be considered at all times during product life.

  • Page 6: Safety

    Trapped liquid can rapidly expand and result in a violent explosion and injury. ITT Goulds Pumps will not accept responsibility for physical injury, damage, or delays caused by a failure to observe the instructions for installation, operation, and maintenance contained in this Pump Safety Manual or the current IOM available at http://www.gouldspumps.com/literature.

  • Page 7: General Precautions

    Personal injuries will result if procedures outlined in this manual are not followed. ITT Goulds Pumps will not accept responsibility for physical injury, damage or delays caused by a failure to observe the instructions in this manual and the IOM provided with your equip- ment.
  • Page 8 Lift equipment only at specifically identified lifting points or as instructed in the current IOM. Current manuals are available at www.gouldspumps.com/literature_ioms.html or from your local ITT Goulds Pumps sales representative. Note: Lifting devices (eyebolts, slings, spreaders, etc.) must be rated, selected, and used for the entire load being lifted.
  • Page 9 1.4 General precautions WARNING Make sure to properly lubricate the bearings. Failure to do so may result in ex- cess heat generation, sparks, and / or premature failure. CAUTION The mechanical seal used in an ATEX classified environment must be proper- ly certified.

  • Page 10: Atex Considerations And Intended Use

    Maintenance manual (IOM) can cause serious personal injury or damage to the equipment. This in- cludes any modification to the equipment or use of parts not provided by ITT Goulds Pumps. If there is any question regarding the intended use of the equipment, please contact an ITT Goulds representative before proceeding.
  • Page 11 The code classification marked on the equipment must be in accordance with the specified area where the equipment will be installed. If it is not, do not operate the equipment and contact your ITT Goulds Pumps sales representative before proceeding.

  • Page 12: Parts

    Move equipment to a safe/non ATEX environment for repairs/adjustments or use spark resistant tools and work methods. ITT disclaims all responsibility for work done by untrained and unauthorized personnel. 1.6 Parts The use of genuine Goulds parts will provide the safest and most reliable operation of your pump.

  • Page 13: General Information

    2 General Information 2 General Information 2.1 Introduction This instruction manual is intended to assist those involved with the installation, operation and mainte- nance of Goulds slurry pumps. It is recommended that this manual be thoroughly reviewed prior to instal- ling or performing any work on the pump or motor.

  • Page 14: Installation

    3 Installation 3 Installation 3.1 Installation WARNING: • Equipment that will operate in a potentially explosive environment must be installed in ac- cordance with the following instructions. • All equipment being installed must be properly grounded to prevent unexpected static electric discharge.

  • Page 15: Foundation

    3.3 Foundation 3.3 Foundation The foundation must be a permanent, rigid support for the subbase or floorplate. It should be an industri- ally accepted design capable of absorbing excessive vibration. Foundations are typically concrete with anchor bolts cast in to secure the pump. An anchor bolt assembly consists of a bolt and washer with a sleeve 2-½...

  • Page 16: Install Pump, Driver, And V-Belt Drive

    3.4 Install pump, driver, and v-belt drive Figure 3: Leveling with wedges When the grout has hardened and the anchor bolts are permanently secured, recheck level. NOTICE: On large subbases/floorplates, shimming is recommended to be at 61cm | 24" spacing. Figure 4: Leveling with blocks and shims 3.4 Install pump, driver, and v-belt drive 3.4.1 Install and align the sheaves...

  • Page 17: Install And Tension The Belt

    3.4 Install pump, driver, and v-belt drive Mount and fasten the pump on the pedestal spacer, foundation, or baseplate as applicable. Use appropriate hardware. For a motor that is mounted overhead, install the overhead motor mount. For a motor that is mounted to the side of the pump, fasten the motor slide base on the baseplate or pump.

  • Page 18: Pump-Driver Alignment

    3.5 Pump-driver alignment Figure 6: V-belt tension Many v-belt drive manufacturers offer tension measurement tools that can aid in setting proper belt tension. Contact the v-belt drive manufacturer for more information. Secure the overhead motor mount on slide base in place once the belts are properly tensioned. Install the unit after installation to ensure that the belts and sheaves do not come into contact with the guard.
  • Page 19 3.5 Pump-driver alignment Figure 7: Checking angular alignment A check for parallel alignment is made by placing a straight edge across both coupling rims at the top, bottom, and at both sides. The unit will be in parallel alignment when the straight edge rests evenly on the coupling rim at all positions.

  • Page 20: Alternate Method Of Alignment

    3.5 Pump-driver alignment When the units are lined up cold, it may be necessary to make an allowance for the vertical rise of the driver and/or pump caused by heating. Goulds Pumps recommendations should be obtained and fol- lowed. 3.5.3 Alternate method of alignment An approved method for putting the coupling halves in final accurate alignment is by the use of a dial indicator.

  • Page 21: Preparation For Shipment

    3.6 Preparation for shipment • Springing of the baseplate by heat from an adjacent steam pipe or from a steam turbine. • Shifting of the building structure due to variable loading or other causes. • Loose nuts or bolts on the pump or driver assembly. 3.6 Preparation for shipment Goulds pumps are prepared at the factory for shipment under covered conditions.

  • Page 22: Operation

    4 Operation 4 Operation 4.1 Preparation for start-up 4.1.1 Stuffing boxes In the conventional stuffing box, mechanical seals and packing seal between the stationary and rotating components of the pump. Generally, a clear liquid such as water is forced through the stuffing box to lu- bricate the sealing elements.

  • Page 23: Packing Procedure

    4.2 Packing procedure Packing (106) Lantern ring (105) Shaft sleeve (126) Stuffing box cover (184) Gland (107) Shaft (122) Figure 10: Typical stuffing box 4.2 Packing procedure Stuffing box and shaft sleeve must be clean and free of grit. Form packing over shaft or mandrel of same diameter. Carefully cut to packing length. Discard rings cut too short.

  • Page 24: Mechanical Seals

    4.2 Packing procedure After packing and seal cage are properly installed, insert gland into stuffing box. Tighten gland nuts finger-tight only. Shaft should turn freely. NOTICE: Do not over tighten gland nuts. Packing may set permanently and require removal. Over tight- ened packing causes excessive friction between packing and sleeve, and will result in dam- aged components.

  • Page 25: Pump Start-Up

    4.3 Pump start-up 4.3 Pump start-up WARNING: • Service temperature in an ATEX classified environment is limited to the area classification specified on the ATEX tag affixed to the pump (reference Table 2: Temperature class def- initions on page • The coupling used in an ATEX classified environment must be properly certified.

  • Page 26: Lubricating Lines To Stuffing Box

    4.5 Locating problems WARNING: Lock out driver power to prevent electric shock, accidental start-up and physical injury. WARNING: When installing in a potentially explosive environment, ensure that the motor is properly certi- fied. 4.4.4 Lubricating lines to stuffing box Lubricating liquid must be flowing to the stuffing box before the pump is started. Both mechanical seals and packing require lubrication for continuous service.
  • Page 27 4.5 Locating problems • Mechanical binding or rubbing of rotating element. • Pumpage specific gravity and/or viscosity too high WARNING: • Do not operate pump below minimum rated flows or with suction and/or discharge valve closed. These conditions may create an explosive hazard due to vaporization of pumpage and can quickly lead to pump failure and physical injury.
  • Page 28 4.5 Locating problems • Cavitation–Damage to internal surfaces of pump • Observe pump for vibration levels, bearing temperature and excessive noise. If normal levels are exceeded, shut down and resolve. Model JC Installation, Operation and Maintenance Instructions...

  • Page 29: Preventative Maintenance

    5 Preventative Maintenance 5 Preventative Maintenance 5.1 General comments A routine maintenance program can extend the life of your pump. Well maintained equipment will last longer and require fewer repairs. It is recommended maintenance records be kept, this will help pinpoint potential causes of problems.

  • Page 30: To Assemble The Liquid End

    5.3 Liquid end WARNING: When handling hazardous and/or toxic fluids, proper personal protective equipment should be worn. If pump is being drained, precautions must be taken to prevent physical injury. Pumpage must be handled and disposed of in conformance with applicable environment regulations. Remove cap screws or bolts which fasten suction disc (182)to casing (100).

  • Page 31: Power End

    5.4 Power end 5.4 Power end 5.4.1 "J " type bearing The "J" type bearing assembly uses medium-heavy ball bearings. On the small size "J" bearings, double row ball bearings are used for combined loading. The larger sizes utilize separate radial and thrust ball bearings.

  • Page 32: Methods To Determine Impeller Nose Clearance

    5.6 Maintenance of Bearings 5.5.1 Methods to determine impeller nose clearance During Installation Or Repair With a feeler gauge, measure the gap between the nose of the impeller and the casing liner on the suc- tion side. During Normal Service Move impeller toward suction side of casing liner until parallel surfaces slightly rub.

  • Page 33: Oil Lubrication

    ATEX certified and the listed temperature exceeds the applicable value shown in Table 1 under ATEX identification, then that temperature is not valid. Should this situation occur, please consult with your ITT/Goulds representative. For ATEX applications bearing replacement (all) is recommended after 17,500 hours of oper- ation.
  • Page 34 5.6 Maintenance of Bearings Installing A Bearing The bearings have sufficient grease for at least 24 hours of operation after start-up. The bearings will run hotter than normal for the first few hours until the grease is worked out of the ball path and the bearings have “run in”.
  • Page 35 5.6 Maintenance of Bearings 332 - Thrust bearing seal 134A - Thrust bearing housing 496 - Seal ring 382 - Thrust bearing lockwasher 112C - Thrust bearing 122 - Shaft 119B - Radial bearing retainer 332 - Radial bearing seal 126 - Shaft sleeve 123C - Radial bearing slinger 228 - Bearing frame...

  • Page 36: To Disassemble The "J" Bearing

    5.6 Maintenance of Bearings The running temperature for a bearing assembly depends on many factors such as speed, bearing loads, ambient air temperature, and condition of bearings. Temperatures higher than the human hand can tolerate are very satisfactory for good bearing operation and should not cause alarm. For a given speed and loading, the bearing housing temperature will stabilize at some temperature, usu- ally below 93°C | 200ºF, which will be the normal temperature for that installation.
  • Page 37 5.6 Maintenance of Bearings Install lockwasher (382) and locknut (136) before bearings cool. When bearings cool to room temperature, retighten locknut and secure with lockwasher tang. To install thrust bearing housing (134A): Double row ball thrust bearing: Lubricate seal (332) and O-ring (496) on thrust bearing housing (134A). Carefully slide housing (134A) onto shaft (122) over thrust bearing.

  • Page 38: Spare Parts

    6 Spare Parts 6 Spare Parts 6.1 Ordering spare parts To ensure against possible long and costly downtime periods, especially on critical services, it is advisa- ble to have spare parts on hand. Parts orders will be handled most promptly if the following directions are followed. Include pump model and size and its serial number as shown on the nameplate.
  • Page 39 6.2 Parts list TYPICAL Item QTY/Pump Part Name Alternate Part Name Packing Ring Gland 112C Thrust Bearing 119B End Cover Bearing Retainer Shaft 123C Deflector Slinger 1(2) Shaft Sleeve 134A Bearing Housing Locknut 168C Radial Bearing Suction Cover Suction Disc Stuffing Box Cover Hub Disc 193B...

  • Page 40: Jc Sectional View

    6.3 JC sectional view 6.3 JC sectional view Figure 15: Model JC Sectional Assembly - all sizes except 10x12-22, Grease Lube 1J, 2J, 3J, 4J Bearings Figure 16: Grease lubrication - Size 10x12-22, 5J Model JC Installation, Operation and Maintenance Instructions...
  • Page 41 Visit our website for the latest version of this document and more information: www.gouldspumps.com ITT - Goulds Pumps Vertical Products Operation 240 Fall Street Seneca Falls, NY 13148 Form IOM.JC.en-US.2021-10 ©2021 ITT Inc. or its wholly-owned subsidiaries The original instruction is in English. All non-English instructions are translations of the original instruction.
