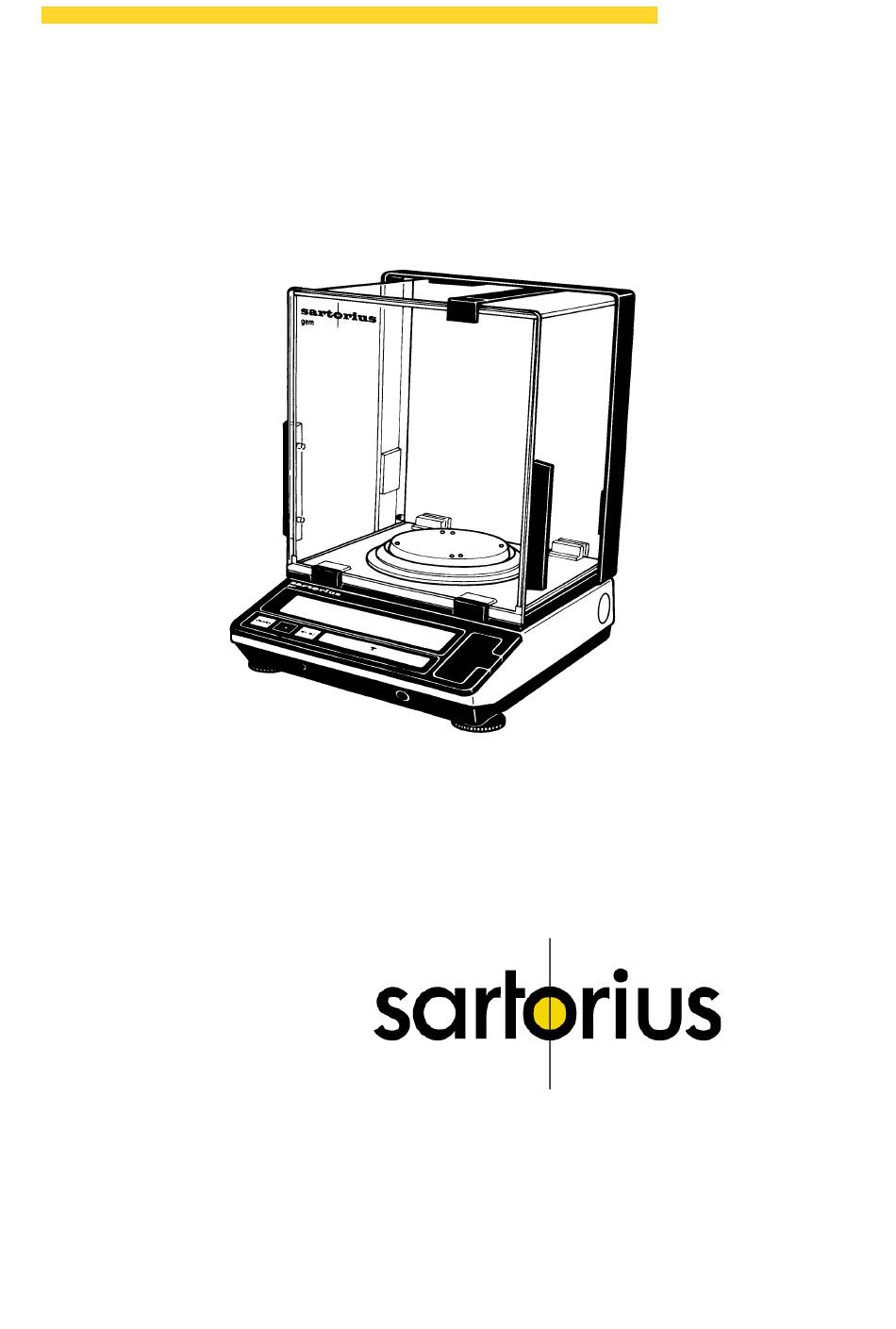

- Page 1 98648-002-26 Sartorius G 150 D, G 200 D, G 500 Electronic Gem Scales Installation and Operating Instructions...
- Page 2 Base plate of the weighing chamber Power receptacle Weight display level indicator ON/OFF key Gem tray CAL key Range selector (W1/W2) Tare compensating weight Tare control Pan support Menu access switch Protective ring (for scale operating program) Level foot...
-
Page 3: Table Of Contents
Contents Page About the Product (Warranty) Calibration Storage and Shipping Conditions Scale Operating Menu Equipment Supplied Accessing the Scale Operating Menu Reading a menu Code Setting Installation Instructions (List Mode) Ambient Conditions Changing a Menu Code Setting Connecting Electronic Devices (Change Mode) (Peripherals) List of the Programmable... -
Page 4: About The Product (Warranty)
About the Product With this Sartorius scale, you have acquired a high-quality electronic weighing instrument that will ease your daily workload. Please read through these installation and operating instructions carefully before operating your new scale. Pursuant to the German Directive for the Implementation of Regulations for Prevention of Accidents "Elektrische Anlagen... -
Page 5: Storage And Shipping Conditions
Storage and Shipping Conditions Storage temperature: -40°C...+70°C -40°F...+158°F The packaging has been designed to ensure that the scale will not get damaged even if it is dropped from a height of 80 cm maximum (about 32 inches). Carefully unpack the scale, and check the equipment immedi- ately for any visible damage as a result of rough handling during shipment. -
Page 6: Equipment Supplied
The equipment supplied includes the components listed below: - Scale - Draft shield - AC adapter - Dust cover - Pan - Tare compensating weight, ring-shaped (not included with G 150 D) - Pan support - Protective ring - Gem tray... -
Page 7: Installation Instructions
The components used in the scale are rated to at least Class KSF according to DIN 40040. Your Sartorius scale provides accurate readouts even when it is exposed to unfavorable ambient conditions. You can adapt the scale to your requirements simply by changing the code settings in the scale operating menu. -
Page 8: Startup
Standard you use, please contact your Sartorius dealer. Important Note Only use original Sartorius AC adapters identified by the Sarto- rius label. Use of AC adapters supplied by other manufacturers, even if these have a registered approval rating from a national testing laboratory, requires the consent of a certified Sartorius technician. -
Page 9: Voltage Selection
Voltage Selection You can select the voltage only if you use our portable power supply (6970903) that has a European-type plug (rounded prongs). Safety Precautions The power supply or AC adapter rated to Class 2 (double insulated) can be plugged into a wall outlet without taking any additional safety precautions. -
Page 10: Operating The Scale
After the power has been turned on, a test of the electronic circuitry will be run automatically. This self-test ends with the following readout: Weighing Range 1 Weighing Range 2 G 150 D 0.000 ct 0.000 g G 200 D 0.000 ct 0.00 ct... -
Page 11: Taring
Weighing The scale features 2 weighing ranges that can be selected conven- iently at the touch of a key (W1 /W2): Weighing Range 1 Weighing Range 2 G 150 D 152.000 ct 111.000 g G 200 D 201.000 ct 505.00 ct G 500 505.000 ct... -
Page 12: Calibration
Calibration Calibration must be done independently for each weighing range (W1/W2). To calibrate, unload the scale and tare. Press the CAL key (5) once the display indicates a zero readout. The Status symbol "C" will now be indicated in the weight display. lf "CE"... -
Page 13: Scale Operating Menu
Scale Operating Menu The scale operating menu enables you to adapt your scale to various ambient conditions and weighing applications and to select the unit(s) of weight commonly used in your country. We have factory-set the codes for a Standard program, which is pro- tected by a locking function to prevent accidental changes. -
Page 14: Changing A Menu Code Setting (Change Mode)
The scale has an automatic zero tracking function, known as "Auto Zero" (can be turned off by menu code - see "Scale Operating Menu"). Any changes off the zero ≤ 0.5 digit (for the G 150 D) ≤ 1 digit (for the G 200 D) ≤... -
Page 15: List Of The Programmable Menu Code Settings
You can choose any weight unit as long as it can be displayed in the particular weighing range you selected (for example do not set the code for "kg" when you are using a 0.1 mg balance). not for the G 200 D/ G 150 D... -
Page 16: Troubleshooting Guide
Troubleshooting Guide Problem ... Causes ... Remedy No segments are indicated in the No AC power is available Check the AC power supply weight display (2) The AC adapter is not plugged Plug in the AC adapter Weight display shows “L” or “CH2” The pan support and/or weigh- Place the pan support and/or ing pan is not in place... -
Page 17: Care And Maintenance
In this case, notify the Sartorius Service Center or International Tech- nical Support Group based in Goettingen, Germany. Only service technicians who are authorized by Sartorius and have access to the required manuals are allowed to perform maintenance and repair work on the equipment. -
Page 18: Accessories (Options)
Accessories (Options) Data Interface YDO 01 A Data printer YDP 02-0DV1 with date/time and statistics functions Print speed approx. lines7sec. printer housing (W x D x H) in mm 150x138x43 Remote Display (can be connected via the data interface) — LCD, reflective 7371 01A —... -
Page 19: Specifications
Specifications Model G 150 D Weighing range structure DualRange Weighing range ct/g 152/111 Readability ct/g 0.001/0.01 starting with serial no. 38050001 0.001/0.002 g Reproducibility ct/g ≤±0.001/0.01 (standard deviation) starting with serial no. 38050001 ≤±0.001/0.002 g Linearity ct/g ≤±0.002/0.02 starting with serial no. 38050001 ≤±0.002/0.006 g... - Page 20 Specifications Model G 200 D G 500 Weighing range structure DualRange DualRange Capacity ct/g Capacity ct/g Readability ct/g 0,001 0,001 Readability ct/g 0,01 0,01 Tare range ct/g -201 -501 (by subtraction) ct/g -501 -101 Reproducibility ct/g ≤±0,001 ≤±0,001 (standard deviation) ct/g ≤±0,01 ≤±0,01...
- Page 22 All rights reserved. No part of this publication may be printed or translated in any form or by any means without the prior written permission of Sartorius AG. Sartorius AG reserves the right to make change to the technology, features, specification and design of the equipment without notice.
