Soundoff Signal nFUSE Manual page 5

nFUSE™ LED Lightbar
F
Figure 1.
E
D
Figure 2.
C
B
Figure 3.
A
5.
Headache Rack Mount
1. Place the T-Slot bolts in the extrusion slots
on the underside of the lightbar.
2. Insert the ½" hex head bolt into the center
hole of the bracket.
3. Place the bracket on the T-Slot bolts and
loosely secure with flat washers and nylon
locking nuts.
4. Measure and drill appropriate sized holes
on the desired moun�ng surface, spaced
evenly for securing the lightbar.
5. Place the plas�c spacer over each moun�ng
hole.
6. Place lightbar and bracket assembly into the
holes and install the flat washer, lock washer
and hex nut on the ½"hex bolt, �ghten to
compress lock washer. (Torque may vary
depending on the moun�ng surface).
7. Complete the installa�on by �ghtening the
¼-20 lock nuts to 40-60 in-lbs, DO NOT OVER
TIGHTEN.
8. Follow the appropriate lightbar Owner's
Manual for addi�onal instruc�ons and
installa�on.
PNFLBK02
Headache Rack Mount
1. Place the T-Slot bolts in the extrusion slots
on the underside of the lightbar.
2. Insert the ½" hex head bolt into the center
hole of the bracket.
3. Place the bracket on the T-Slot bolts and
loosely secure with flat washers and nylon
locking nuts.
4. Measure and drill appropriate sized holes
on the desired moun�ng surface, spaced
Headache Rack Mount
1. Place the T-Slot bolts in the extrusion slots
on the underside of the lightbar.
2. Insert the ½" hex head bolt into the center
hole of the bracket.
3. Place the bracket on the T-Slot bolts and
loosely secure with flat washers and nylon
locking nuts.
4. Measure and drill appropriate sized holes
on the desired moun�ng surface, spaced
evenly for securing the lightbar.
5. Place the plas�c spacer over each moun�ng
hole.
6. Place lightbar and bracket assembly into the
holes and install the flat washer, lock washer
and hex nut on the ½"hex bolt, �ghten to
compress lock washer. (Torque may vary
depending on the moun�ng surface).
7. Complete the installa�on by �ghtening the
¼-20 lock nuts to 40-60 in-lbs, DO NOT OVER
TIGHTEN.
8. Follow the appropriate lightbar Owner's
Manual for addi�onal instruc�ons and
installa�on.

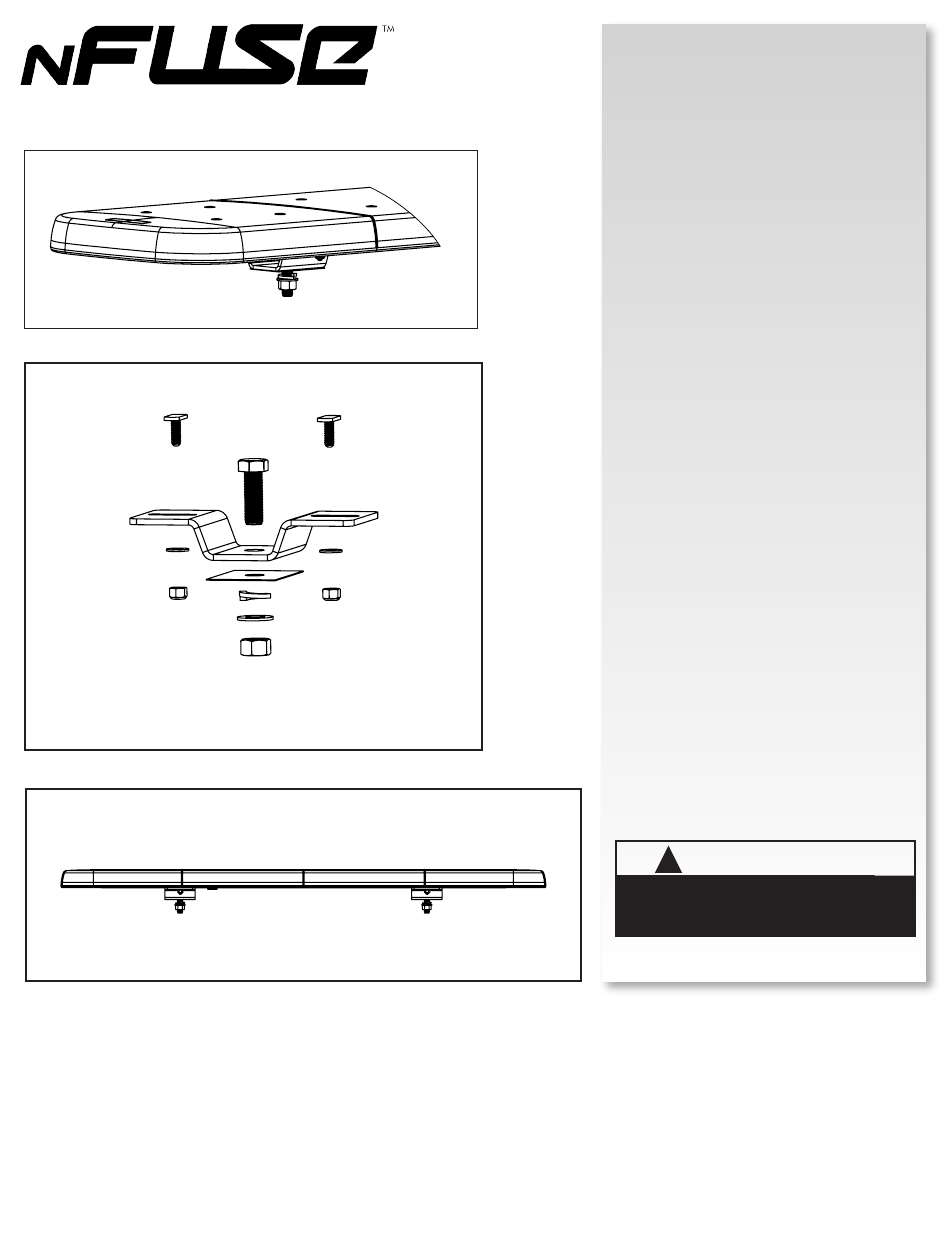

HEADACHE RACK MOUNTING
(PNFLBK02)
1. Place the T-Slot bolts in the extrusion slots on the
underside of the lightbar.
2. Insert the ½" hex head bolt into the center hole of
the bracket.
3. Place the bracket on the T-Slot bolts and loosely
secure with flat washers and nylon locking nuts.
4. Measure and drill appropriate sized holes on the
desired mounting surface, spaced evenly for
securing the lightbar.
5. Place the plastic spacer over each mounting hole.
6. Place lightbar and bracket assembly into the holes
and install the flat washer, lock washer and hex nut
on the ½"hex bolt, tighten to compress lock washer.
(Torque may vary depending on the mounting
surface.)
7. Complete the installation by tightening the ¼-20
lock nuts to 40-60 in-lbs, DO NOT OVER TIGHTEN.
8. Follow the appropriate lightbar Owner's Manual for
additional instructions and installation.
WARNING
!
Route wires only in locations that are not subjected to
potential wear. Make sure to avoid routing wires in the
deployment area of your air bag. Refer to your vehicle's
owner's manual for airbag deployment zone.
nFUSE Lightbar English 0520
