Bottom View - Soundoff Signal nFUSE Manual

nFUSE™ LED Lightbar

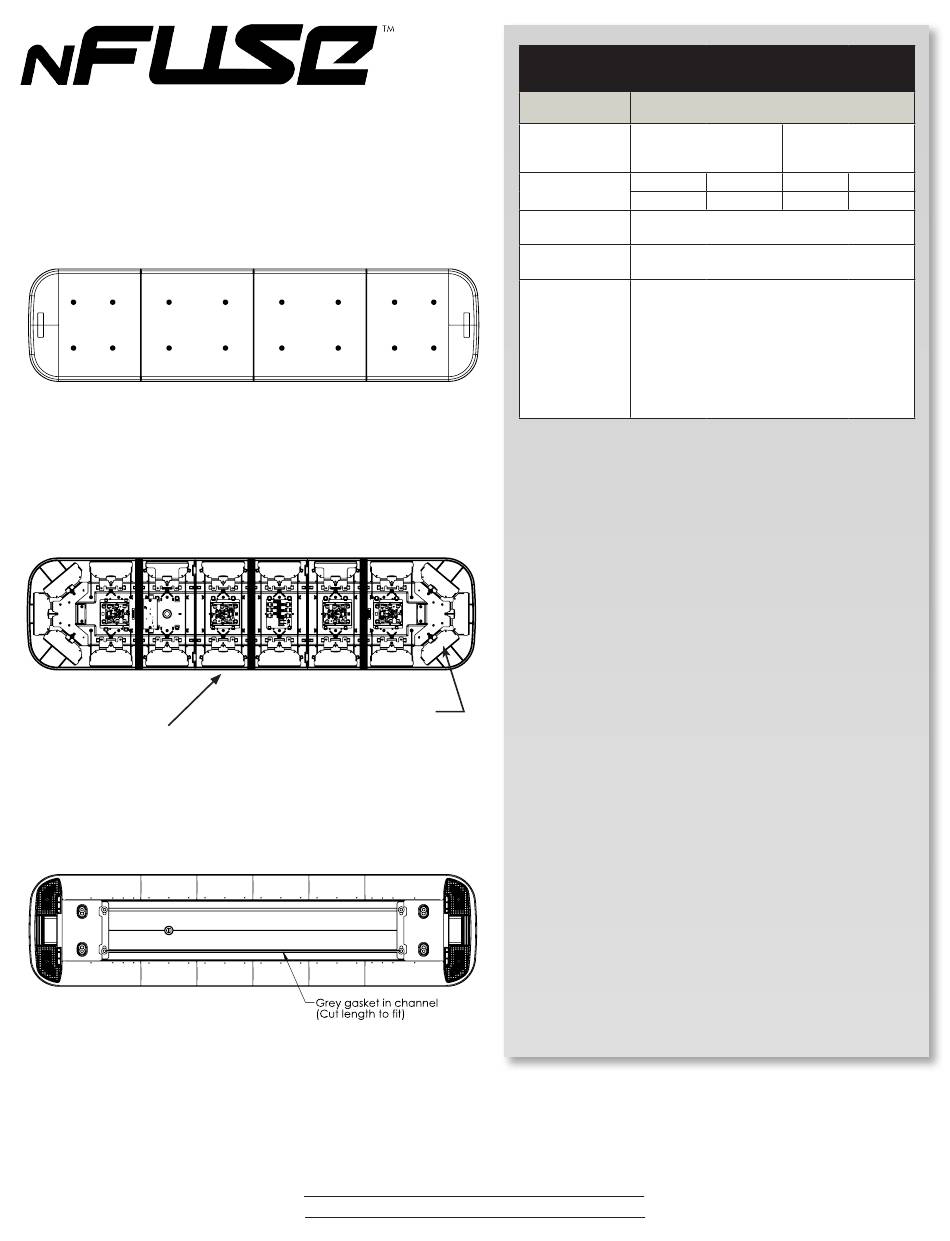

TOP VIEW WITH COVERS ON
TOP VIEW WITH COVERS OFF
TOP VIEW (LENS REMOVED)
TOP VIEW (LENS REMOVED)
INBOARD LED MODULES

BOTTOM VIEW

GASKET MOUNTING INSTRUCTIONS
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
3.
TOP VIEW
TOP VIEW
CORNER MODULE
BOTTOM VIEW
REAR
BOTTOM VIEW
FRONT
Improper use or installation may void warranty coverage.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
POWER SPECIFICATIONS
Input Voltage Range:
Light Bar Component
Standby Current
Reverse Polarity
Load Dump
Wiring
NOTICE:
10 - 32 Vdc
Current Draw Power Consumption
(Average = Flashing)
Ignition ON Ignition OFF Ignition ON Ignition OFF
0.010 Amps 0.002 Amps 0.13 Watts 0.03 Watts
Protected
Protected
TECHNICAL SPECIFICATIONS
Power Cable
15ft 10 AWG Wires, (+) Red, (-) Black
25ft 10 AWG Wires, (+) Red, (-) Black
Data Cable
15ft 22 AWG Wire, Green
C
25ft 22 AWG Wire, Green
TECHNICAL SPECIFICATIONS
C
ENULBXXXXXXX
LED MODULE
6 LED SINGLE COLOR
12 LED DUAL COLOR
ENULBXXXXXXX
ENULBXXXXXXX
nFUSE Lightbar English 0520
(Watts)
F
E
F
D
E
C
F
D
B
E
C
A
D
SHEET
B
C
A
SHEET
B
A
SHEET
