WARNING:
DO NOT USE THIS BIKE CARRIER ON A
th
TRAILER OR 5
WHEEL R.V.
ASSEMBLY INSTRUCTIONS:
1.
Unfold the two side arms as shown and insert the lock pins.
Ensure that the pins are all the way in (Diagram 1).
2.
Slide the four (4) wheel-holder trays onto the side arms alternating
the direction of the trays (Diagram 2). Install the carriage bolt, flat
washer and thumb knob through holes in mounting bracket on
each wheel-holder tray. Do not tighten at this time as they will
have to be adjusted to fit each bike.
3.
Slide the long hook onto the center upright arm first, then slide the
short hook onto the center upright alternating the direction
(Diagram 2).
4.
Insert the square receiver bar into the 2" square section on the
bottom of the rack as shown. Insert the ½" bail lock pin and secure
bail wire.
5.
Install the two set-screws in the bottom of rack and tighten to
secure the receiver bar tight against the square section. Check the
set-screws periodically to ensure they are tight.
6.
Install entire bike rack assembly into your vehicle's receiver hitch
and secure using the 5/8" pin and clip.
LOADING BIKES ONTO CARRIER:
1.
First, pull the lock pin on the center upright arm
and fold down. This allows easy access to load
the inside bike onto the rack. (Diagram 3)
NOTE: Do not drop or let the upright arm fall
freely. Make sure that your hands and
fingers are clear of the hinging area during
this operation.
2.
Adjust the trays to the bike wheels so that they
are all the way in the tray. Once the trays are
adjusted, tighten the thumb knobs until the trays
are secure and cannot slide.
3.
Raise the center upright arm back into the
upright position and insert the lock pin.
4.
Push the hook down onto the bike frame. Press
the red button on the hook to slide it more easily
into place. Release the button when hook is
securely holding the bike. Make sure the hook
is locked in place such that it will not slide on
the upright arm.
5.
Install the outside bike with the handle bars on
the opposite side. Follow steps 2 & 4 to
properly secure bike to rack.
NOTE: After complete installation check and make
sure that all pins are secured, tighten all
thumb knobs, and ensure that the bikes are
tightly secured on the rack.
The hooks are designed to accept an optional
padlock – sold separately.
Cequent Towing Products - Plymouth, MI
Technical Service: (888) 521-0510
ITEM:
DESCRIPTION
:
5/8" pin
63131

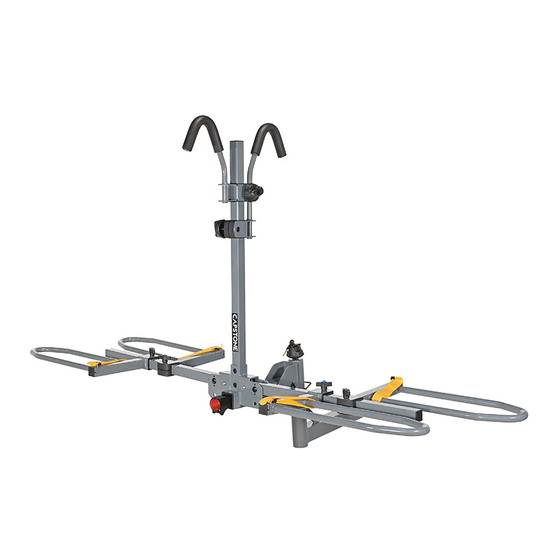

TWO PLACE BIKE CARRIER,
RAIL RACK, 2" MOUNT
Lock Pin
Lockable
Long Hook
Clip
Thumb
Knob

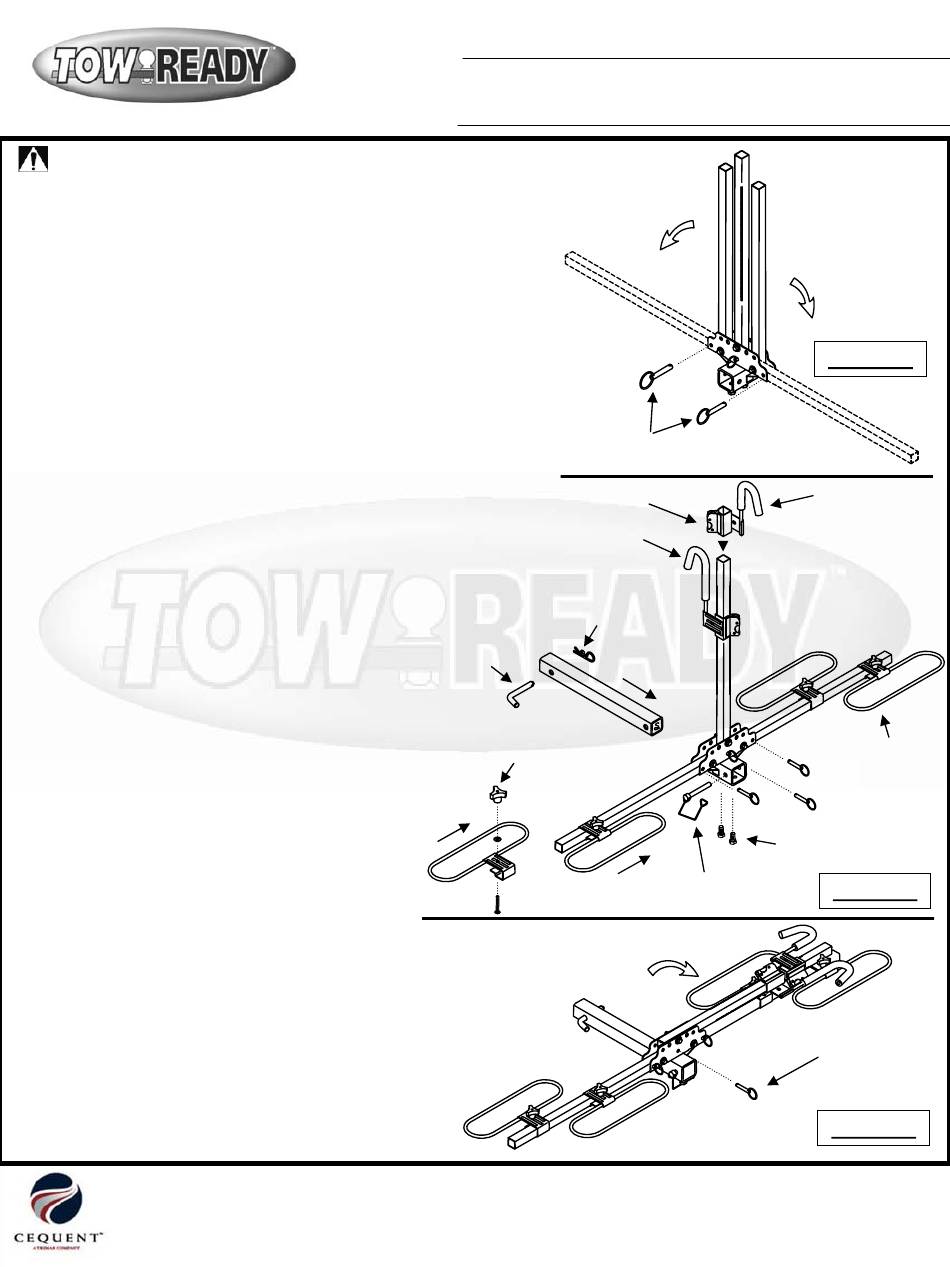

Diagram 1
Short Hook
Set-Screws
Diagram 2
Bail Lock Pin
Lock Pin
Diagram 3
63131N 11-29-05 Rev A
