Please read all instructions carefully before assembly, installation and/or use of this product.
WARNING: The Maximum basket content weight capacity is 60 Kg.
DO NOT EXCEED the lowest of vehicle manufacturer's cross bar rating or basket content weight limit
of 60 Kg.
WARNING: Not for transport of people, animals, or flammable liquids.
WARNING: Distribute your load evenly inside the basket.
WARNING: Securely fasten load to cargo carrier. Make sure all bolts, screws, straps and plastic knobs are firmly
attached before every trip and check regularly during the trip.
WARNING: Check security of all cargo carrier attachments and load at fuel and rest stops.
WARNING: Check for clearance between sunroof and cargo carrier before operating sunroof. (if equipped)
WARNING: Do not carry any loads wider than your vehicle.
WARNING: Do not drill or weld to this product.
Vehicle Manufacturer's cross bar rating
(B)
(G)
(H)
PART
A
B
C
D
E
F
G
H
(C)
(D)
DESCRIPTION

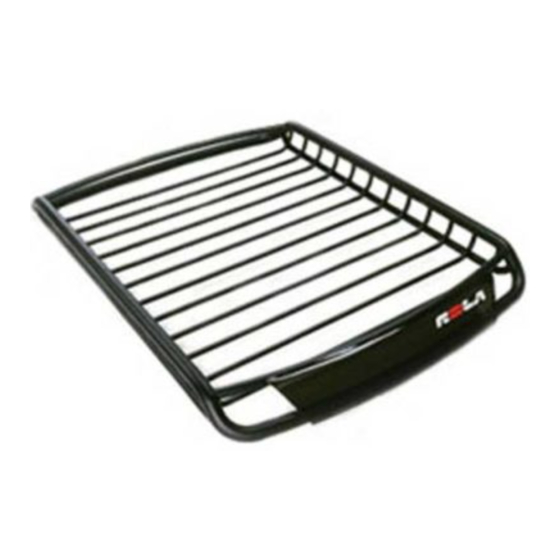

Cargo Carrier Basket
Air Deflector
Plastic Knob
Top Mounting Bracket
Spacer Block
U-Bolt
Screw, #10-32 (Self Tapping)
Rubber Washer
Product Name:
Product Code:
LOAD RATING LIMITS:
-
PARTS LIST:
(A)
(E)
(F)
QTY.
1
1
8
4
4
4
4
4
Page 1
Vortex Luggage Tray
LTVX
Basket Weight (17 Kg)
TOOLS REQUIRED:
Phillips Screwdriver
Tape Measure
www.rola.com.au

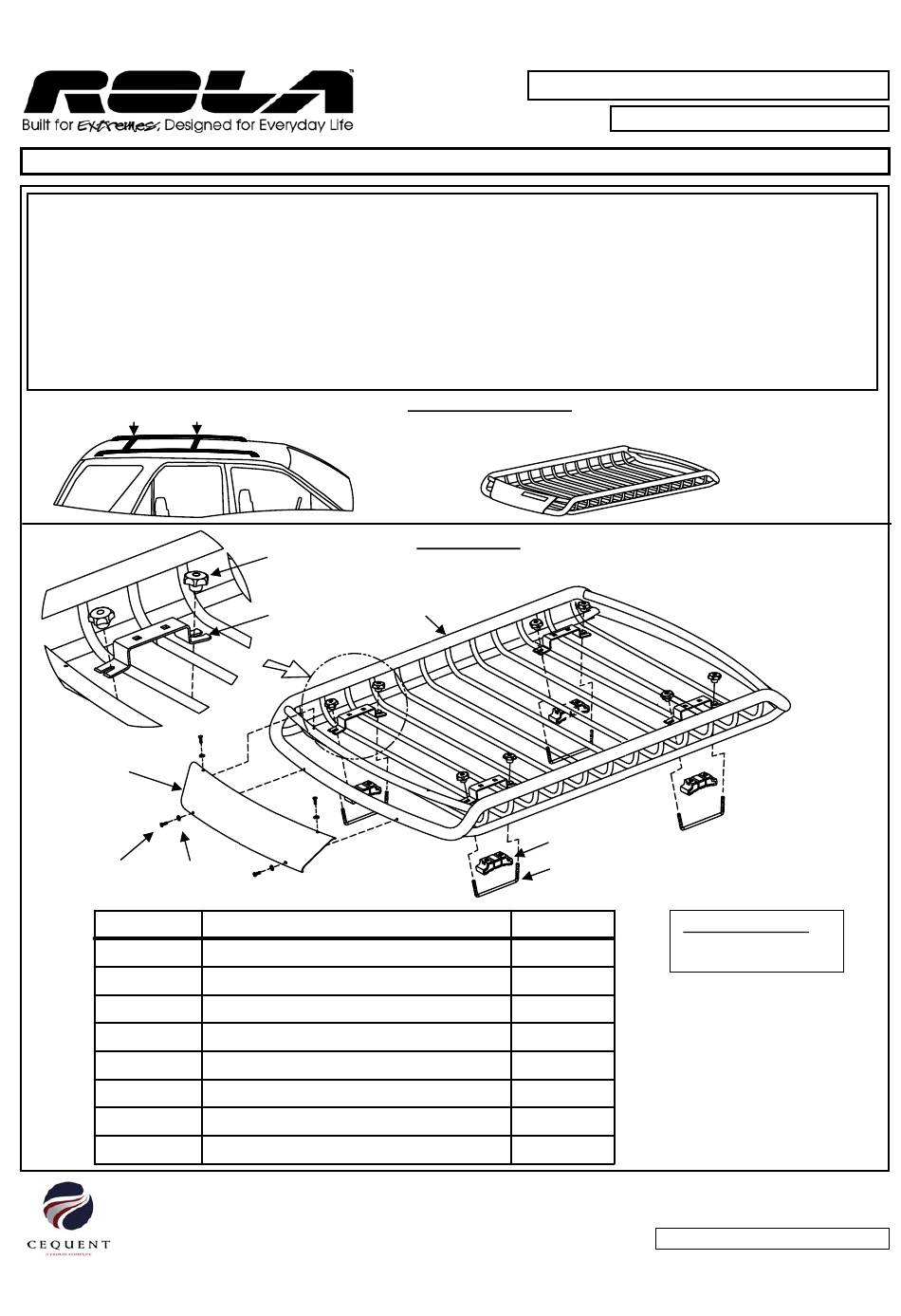

LTVX Rev B 26-3-07 pg 1 of 4 598
Cargo Carrier
=
Weight Limit
