THIS GOOSENECK WILL ONLY ATTACH TO 2011 FORD SUPER DUTY RAIL
DEALER/INSTALLER:
(1) Provide this Manual to end user.
(2) Physically demonstrate procedures in this Manual to end user.
(3) Have end user demonstrate that he/she understands procedures.
END USER:
(1) Read and follow this Manual every time you use Hitch.
(2) Save this Manual for future reference.
(3) Pass on copies of Manual to any other user or owner of Hitch.
PART
1.
GOOSENECK ASSEMBLY
¾" x 2.0" CARRIAGE BOLTS
2.
¾" CONICAL WASHERS
3.
¾" HEX NUT
4.
Reese™ Elite Gooseneck
2011 Ford Super Duty
QTY.
1
4
4
4
KIT

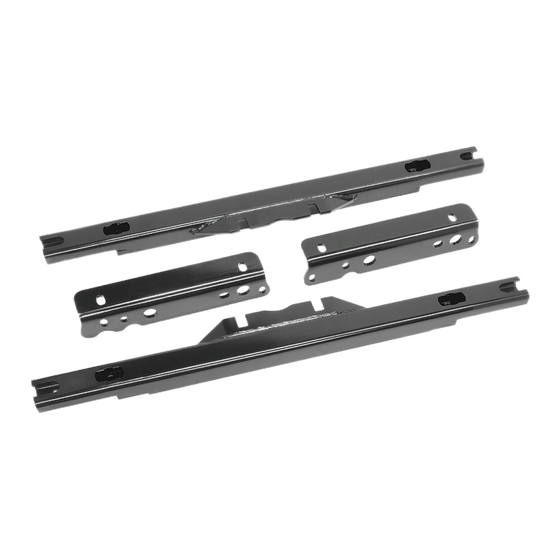

Rail kit sold separately
Fig. 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cequent Reese Elite
Summary of Contents for Cequent Reese Elite
- Page 1 ASSEMBLY INSTRUCTIONS Reese™ Elite Gooseneck 2011 Ford Super Duty THIS GOOSENECK WILL ONLY ATTACH TO 2011 FORD SUPER DUTY RAIL DEALER/INSTALLER: (1) Provide this Manual to end user. (2) Physically demonstrate procedures in this Manual to end user. (3) Have end user demonstrate that he/she understands procedures. END USER: (1) Read and follow this Manual every time you use Hitch.
- Page 2 *Trailer weight should be the lowest of these recorded ratings for safe towing conditions. Cequent Performance Products, Inc. hitches are designed for use with recreational gooseneck trailers only. Hitch applications other than recreational gooseneck trailers must be approved in writing by Cequent Performance Products, Inc. Engineering Department.
- Page 3 5. Trucks come in many different configurations. Cequent Performance Products, Inc. recommends the use of long bed (8ft) light trucks for the best combination in truck - trailer turning clearance. Rule of thumb: The distance from the back of the truck cab to the center of the rear truck axle (“X”...
- Page 4 Hitch height determination: With trailer leveled and on level ground measure from the ground to the coupler, Dimension “A” in Fig. 6. Secondly, measure from the height of the inside of the truck bed to the ground, Dimension “B” in Fig. 6. Dimensions “C”...
- Page 5 REESE™ Elite Series GOOSENECK ASSEMBLY TOOLS 3 ½” Hole Saw Safety Glasses Impact Wrench Torque Wrench 1-1/8” Box or End Wrenches or socket Check all the boxes for all the components listed in Figure 1 and become familiar with component terminology. Locate the “dimple”...
- Page 6 Once the top of the gooseneck receiver tube is located in the hole (See figure 9), then tighten the hardware to a torque of 180 ft/lbs. It might be helpful to lower the spare tire to get extra room to swing the torque wrench. Installed gooseneck in truck bed. Fig. 9 CEQUENT TRAILER HITCHES HITCH MOUNTS...
