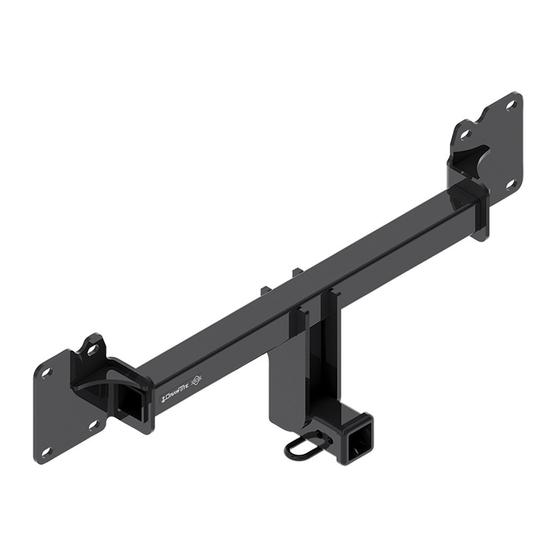

Cequent Draw-Tite 76026 Installation Instructions Manual

Cequent Draw-Tite 76026 Installation Instructions Manual

Advertisement

Quick Links

Cequent
Performance Products, Inc.
To prevent SERIOUS INJURY, DEATH or PROPERTY DAMAGE:
ALWAYS read, understand and follow warnings and instructions
for your hitch BEFORE installation. Keep for future reference.
DO NOT cut, weld or modify this receiver.
CHECK all fasteners are tight and your hitch is securely mounted
to your vehicle periodically.
ALWAYS read, understand and follow all warnings and
instructions for your vehicle and for other accessories you will use
with your hitch BEFORE use.
LOAD the trailer heavier in front.
DO NOT exceed lower of towing vehicle manufacturer's rating or:
Hitch Type
Max Gross Trailer
Weight Carrying
6000 lb. (2724 kg)
Weight Distributing
ALWAYS wear your seatbelt.
SLOW DOWN when towing, NEVER exceed any posted speed limit.
If EXCESS SWAY occurs, take your foot off the gas pedal and hold
the steering wheel as steady as possible. DO NOT apply your
brakes and DO NOT speed up.
Installation Instructions
PART NUMBERS: 76026, 84026, CQT76026
Max Tongue
Weight
Weight
900 lb. (409 kg)
N/A
N/A
LIMITED LIFETIME WARRANTY
Limited Lifetime Warranty ("Warranty"). Cequent Performance Products, Inc. ("We",
1.
"Us" or "Our") warrants to the original consumer purchaser only ("You" or "Your") that the
product will be free from material defects in both material and workmanship, ordinary wear
and tear excepted. The Warranty is valid only if (a) the products are returned to Us for
inspection and testing; (b) Our inspection discloses to Our satisfaction that any alleged
nonconformance are material and have not been caused by misuse, neglect, wear and tear,
improper installation, unsuitable storage, improper repair, alteration, or accident; and (c) the
products were installed, maintained and used in accordance with Our instructions. THE
WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED (OTHER THAN THE WARRANTY OF TITLE AS PROVIDED BY THE
UNIFORM COMMERCIAL CODE IN EFFECT IN MICHIGAN), INCLUDING
WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, SAID WARRANTIES BEING EXPRESSLY
DISCLAIMED.
2.
Obligations of Purchaser. To make a Warranty claim, contact Us , identify the product by
model number, and follow the claim instructions that will be provided. Any returned product
that is replaced by Us becomes our property. You may be responsible for return shipping
costs. Please retain your purchase receipt to verify date of purchase and that You are the
original consumer purchaser. The product and the purchase receipt must be provided to Us in
order to process Your Warranty claim.
3.
Exclusive Remedy. Product replacement is Your sole and exclusive remedy under this
Warranty. We shall not be liable for service or labor charges incurred in removing or
replacing a product. IN NO EVENT WILL WE BE RESPONSIBLE FOR ANY INDIRECT,
SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES.
4.
Assumption of Risk. You acknowledge and agree that any use of the product for any
purpose other than the specified use(s) stated in the product instructions is at Your own risk.
5.
Governing Law. This Warranty gives You specific legal rights, and You also may have
other rights which vary from state to state. This Warranty is governed by the laws of the
State of Michigan, without regard to rules pertaining to conflicts of law. The state courts
located in Oakland County, Michigan shall have exclusive jurisdiction for any disputes
relating to this Warranty.
