Cequent
™
Performance Products, Inc.
Applications:
Years
Make
2015-Current* Jeep
*Visit our website for the most up to date
information regarding application years
and trim levels.
Equipment Required:
21 mm
3 / 4 ''
Safety
Ratchet
Sockets
Glasses
Pliers
Socket
Drill
Extension
DO NOT EXCEED LOWER OF TOWING VEHICLE
MANUFACTURER'S RATING OR:
Hitch Type
Weight Carrying
Weight Distributing
PART NUMBERS: 36587, 90247, 06947
Installation Time: 30MIN
Models
The time listed above is the average time
for professional installers. If you do not
Renegade
feel comfortable performing this
installation on your own or are in need of
assistance, please contact a professional
installer.
Flat
Torque
Head Screw
Wrench
Driver
1" Holesaw
Max Gross Trailer Weight
3500 lb. (1587 kg)
N/A
Max Tongue Weight
300lb. (136 kg)
N/A
Representative Vehicle Photo
Front of
Vehicle
Hitch
Illustration
Advertisement
Table of Contents
Related Manuals for Cequent Draw-Tite 36587
Summary of Contents for Cequent Draw-Tite 36587

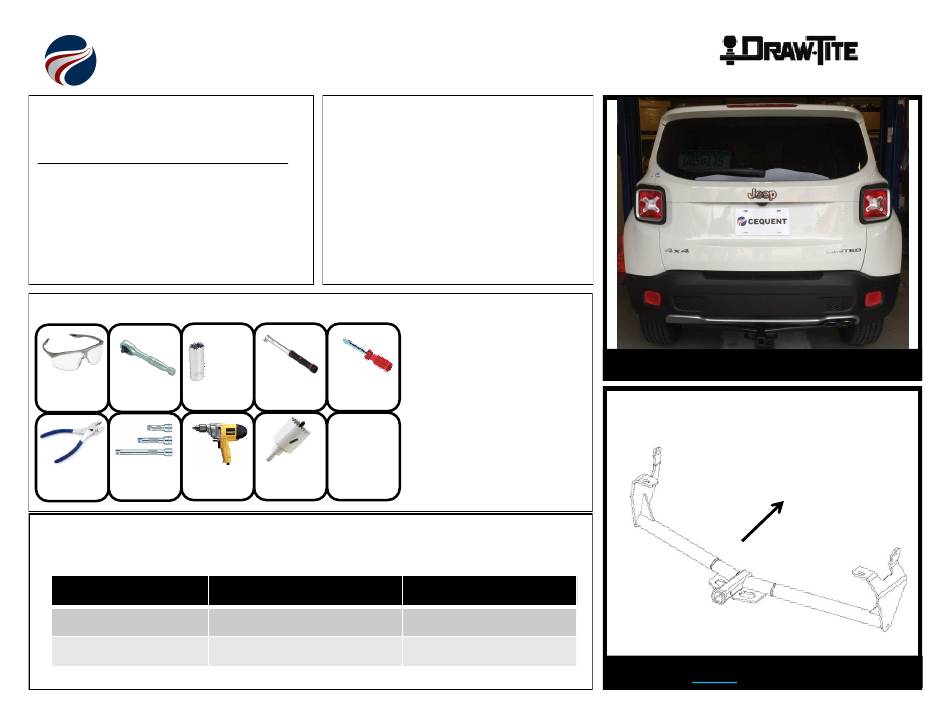

- Page 1 Cequent ™ Performance Products, Inc. Installation Instructions PART NUMBERS: 36587, 90247, 06947 Applications: Installation Time: 30MIN Years Make Models The time listed above is the average time for professional installers. If you do not 2015-Current* Jeep Renegade feel comfortable performing this...
- Page 2 Always wear SAFETY GLASSES ① Qty.(4) Carriage bolt Installation Instructions ½”-13 x 1.75 GR5 when installing hitch PART NUMBERS: 36587, 90247, 06947 ② Qty. (4) Hex Nut ½” Authorized Drawbar Kit: Qty. (4) Spacer 1” x 2” 36071 (Sold Separately) Drill 1”...
- Page 3 2. Using a 1” holesaw drill an access hole for the fasteners. Locate the area between exhaust 1. Remove rubber plugs from attachment holes., 1 at the end of the frame rail and one on hanger bracket and suspension mount on the frame rail. (You may need to use pliers to bend the outside of the frame rail forward of the exhaust hanger.
- Page 4 5. Raise hitch into position, guiding the fishwire ends thru the attachment hole on the hitch. 6. Fishwire the second carriage bolt and spacer thru the access hole and thru the attachment Once the hitch is in place remove the fishwire and install the conical washer (teeth side against hole in the frame rail and hitch, install the conical washer (teeth side against hitch) and nut.
- Page 5 Always wear SAFETY GLASSES Installation Instructions when installing hitch PART NUMBERS: 36587, 90247, 06947 Authorized Drawbar Kit: 36071 (Sold Separately) Drawbar must be used in the RISE position only. Existing This page is for vehicles with existing M14 Bolt towhooks Frame rail Existing M14 Bolt...
- Page 6 1. Remove existing M14 bolts from attachment holes., 1 at the end of the frame rail and one 2. Scrape frame rails to remove any caulk near the attachment holes. on the outside of the frame rail forward of the exhaust hanger. Scrape frame rails to remove any caulk near the attachment holes.
