Kit Contents:
Main Support Assembly
Upper Support Tube
Lower Support Tube
Upper / Lower Hook Straps 4
Cradle Strap
Assembly Instructions:
1.
Align mounting holes of upper support tube with holes in main support assembly. Use a supplied ¼
carriage bolt and ¼ Nylon locking nut to fasten upper support tube to main support. DO NOT OVER
TIGHTEN. Support tube must be able to rotate freely. (Fig. 1)
2.
Align mounting holes in upper support tube with adjustment slot in main support assembly. Use a
supplied ¼ carriage bolt and adjustment knob, to fasten tube to main support. (Fig. 1)
3.
Repeat steps 1 & 2 for lower support tube.
4.
Pass side cam buckle straps through side strap slots on main support assembly side brackets and
through slot on trunk hook. (Fig. 3)
5.
Thread upper / lower hook straps through cam buckles of main support assembly. (Fig. 2)
Adjustment Knob
¼ Carriage Bolt
Cequent Consumer Products
29000-2 Aurora Road
Solon, Ohio 44087
Customer Service: (800) 234-6992
ITEM
DESCRIPTION
1
Side Cam Buckle Straps
1
Trunk Hook
1
Adjustment Knobs
¼-20 x 1 ½ Carriage Bolt
6
¼-20 Nylock Nut
¼ Carriage Bolt

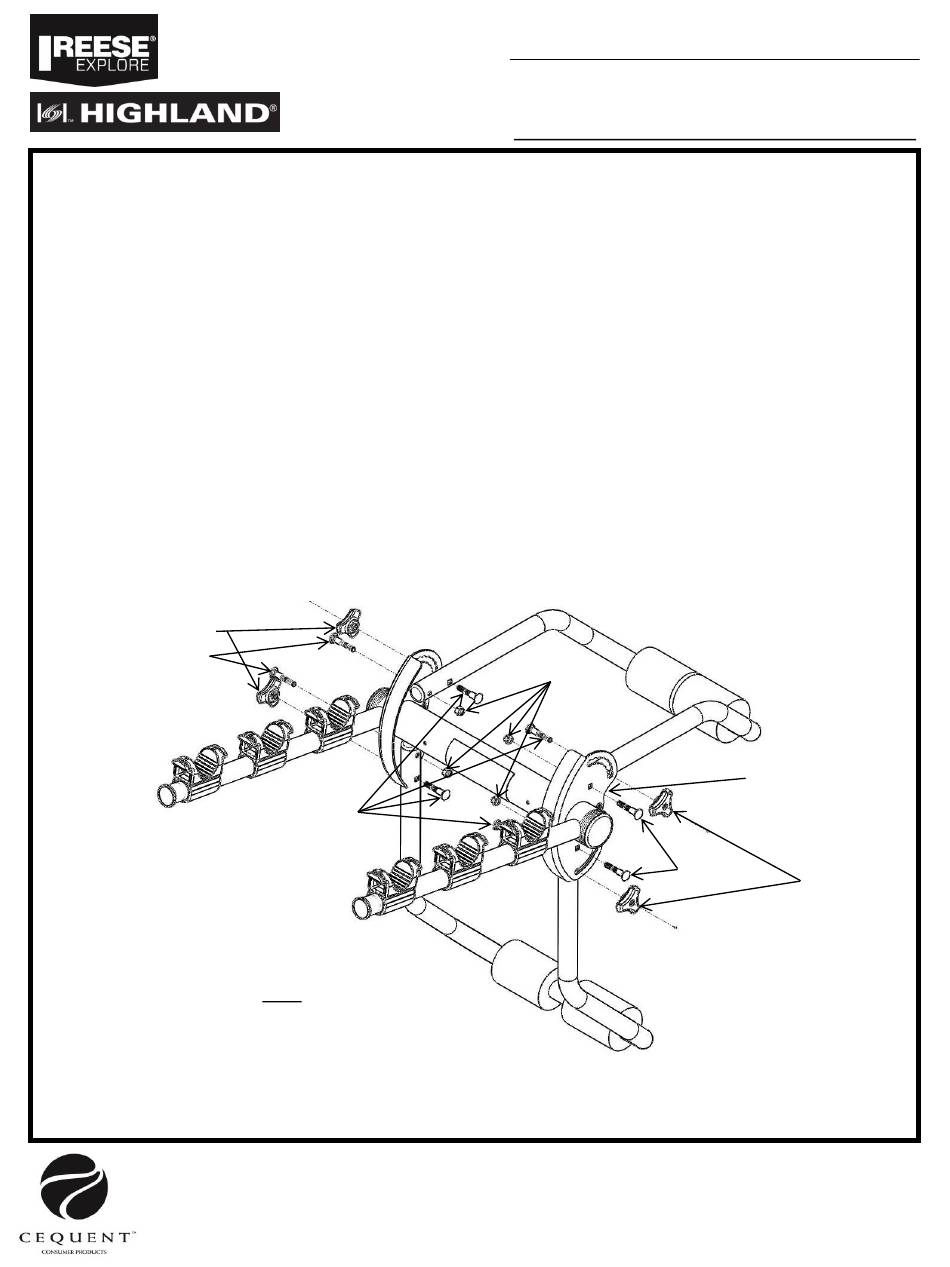

FIG. 1
Upper Support Tube
13740 & 13903
:
:
Trunk Mount 3 Bike Carrier
¼ Nylon Lock Nut
Page 1 of 12
2
2
4
8
4
Upper Support Tube
Main Support Assembly
¼ Carriage Bolt
Adjustment Knob
#3393000
Rev D
3-5-14
Printed in China
