MA297 (de_en)
Montageanleitung
PV-Kupplungsbuchse PV-KBT4-EVO ST/...
PV-Kupplungsstecker PV-KST4-EVO ST/...
MC4-Evo stor
Inhalt
Sicherheitshinweise ���������������������������������������������������������������������2
Erforderliches Werkzeug ��������������������������������������������������������������3
Vorbereitung der Leitung ��������������������������������������������������������������4
Leitfaden zur Konfiguration der Steckverbinder ����������������������������4
Crimpen ��������������������������������������������������������������������������������������6
Montageprüfung ��������������������������������������������������������������������������7
Stecken und Trennen �������������������������������������������������������������������8
Hinweise zur Installation ���������������������������������������������������������������9
Technische Daten ����������������������������������������������������������������������10
Notizen ������������������������������������������������������������������������������11 - 12
PV-KBT4-EVO ST
MA297 (de_en)
Assembly instructions

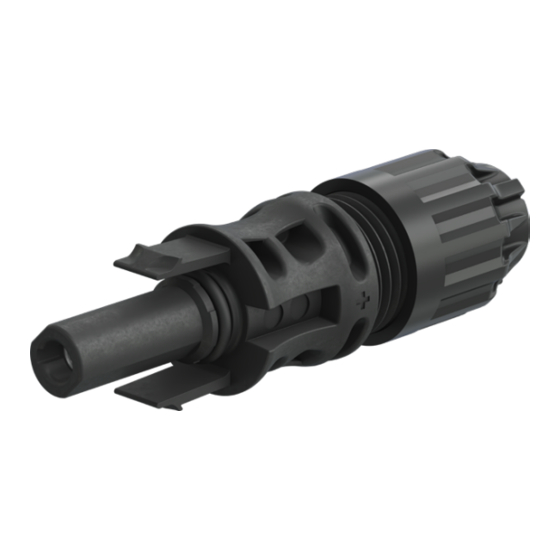

PV female coupler PV-KBT4-EVO ST/...
PV male coupler PV-KST4-EVO ST/...
MC4-Evo stor
Content
Safety Instructions �����������������������������������������������������������������������2
Tools required ������������������������������������������������������������������������������3
Cable preparation ������������������������������������������������������������������������4
Guideline for configuring the connectors ��������������������������������������4
Crimping ��������������������������������������������������������������������������������������6
Assembly check ��������������������������������������������������������������������������7
Mating and disconnecting ������������������������������������������������������������8
Notes on installation ��������������������������������������������������������������������9
Technical Data ���������������������������������������������������������������������������10
Notes ��������������������������������������������������������������������������������11 - 12
Verschlusskappen/Sealing caps
PV-BVK4
PV-SVK4
32.0716
32.0717
PV-KST4-EVO ST
1 / 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV-KBT4-EVO ST Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Staubli PV-KBT4-EVO ST Series

  • Page 1: Table Of Contents

    MA297 (de_en) MA297 (de_en) Montageanleitung Assembly instructions PV-Kupplungsbuchse PV-KBT4-EVO ST/... PV female coupler PV-KBT4-EVO ST/... PV-Kupplungsstecker PV-KST4-EVO ST/... PV male coupler PV-KST4-EVO ST/... MC4-Evo stor MC4-Evo stor Inhalt Content Sicherheitshinweise ���������������������������������������������������������������������2 Safety Instructions �����������������������������������������������������������������������2 Erforderliches Werkzeug ��������������������������������������������������������������3 Tools required ������������������������������������������������������������������������������3 Vorbereitung der Leitung ��������������������������������������������������������������4 Cable preparation ������������������������������������������������������������������������4 Leitfaden zur Konfiguration der Steckverbinder ����������������������������4...
  • Page 2: Sicherheitshinweise

    Dabei können andere Anforderungen und Spezifi kationen als in document� diesem Dokument beschrieben anwendbar werden� For more information, contact Stäubli • Für mehr Informationen Stäubli kontaktieren www�staubli�com/electrical • www�staubli�com/electrical Anforderungen an das Personal Requirements for personnel Die Montage und Installation dürfen ausschließlich von einer...
  • Page 3: Erforderliches Werkzeug

    Order no. 1.5/2.5/4/6 mm² PV-AZM-156 32.6027-156 (14/12/10 AWG) 4/6/10 mm² PV-AZM-410 32.6027-410 (12/10/8 AWG Hinweis: Note: Bedienungsanleitung MA267, Operating instructions MA267, www�staubli�com/electrical www�staubli�com/electrical (ill. 2) (ill. 2) Crimpzange PV-CZM��� und Lokator� Crimping pliers PV-CZM��� and locator� Crimpbereich Crimpzange Lokator Crimping range Crimping pliers Locator 2.5/4/6 mm²...
  • Page 4: Vorbereitung Der Leitung

    Vorbereitung der Leitung Cable reparation (ill. 7) (ill. 7) Es müssen Anschlussleitungen mit Cables with a strand class 5 and 6 einem flexiblen Litzenaufbau der Klas- shall be connected� Use tinned copper sen 5 und 6 angeschlossen werden� cables only� Ausschließlich ver zinnte Kupferleitungen verwenden�...
  • Page 5 2. MC4-Evo ST Produktkonfiguration in Kombination mit UL 2. MC4-Evo ST Product configuration in combination with UL Bei Verwendung von ausschließlich UL-zertifizierten Leitungen Select the suitable configuration in Tab� 2 by using UL certified passende Konfiguration anhand Tab� 2 auswählen: cables only: Tab.
  • Page 6: Crimpen

    Crimpen Crimping (ill. 9) (ill. 9) Klemmbügel (K) öffnen und festhalten� Open clamp (K) and hold tight� • • Kontakt in den passenden Quer- Insert the contact in the appropriate • • schnittsbereich einlegen� cross-section range� Crimplaschen (C) nach oben drehen� Turn the crimping flaps (C) upwards�...
  • Page 7: Montageprüfung

    Montageprüfung Assembly check (ill. 13) (ill. 13) Angecrimpten Kontakt von hinten in die Insert the crimped-on contact into the Isolation bis zum Einrasten einführen� insulator of the male or female coupler Es ertönt ein „Klick“-Geräusch, sobald until engaged� er vollständig eingefügt ist� You will typically hear a “click”...
  • Page 8: Stecken Und Trennen

    Stecken und Trennen Mating and disconnecting (ill. 16) (ill. 16) Stecken: Mating: Leitungskupplungen zusammenstecken Mate the cable coupler until a „click“ bis ein „Klick“ hörbar ist� Korrektes can be heard� Check correct engage- Einrasten durch Ziehen an der Leitungs- ment by lightly pulling on the connector kupplung kontrollieren (Zugkraft max�...
  • Page 9: Hinweise Zur Installation

    Hinweise zur Installation Notes on installation Allgemeine Installationshinweise General notes on installation Nicht gesteckte Steckverbinder sind mit Verschlusskappen Unmated connectors must be protected from environmental • • (Buchse PV-BVK4, Bestell-Nr� 32�0716; Stecker PV-SVK4, impact (moisture, dirt, dust, etc�) with sealing caps (socket Bestell-Nr�...
  • Page 10: Technische Daten

    Technische Daten Technical Data PV-KST4-EVO ST/xy Typenbezeichnung Type designation PV-KBT4-EVO ST/xy Steckverbindersystem Connector system Ø 4 mm DC 1500 V (IEC 62852:2014+Amd.1:2020) Bemessungsspannung Rated voltage DC 1500 V (UL 6703) 32 A (2.5 mm²) 42 A (4.0 mm²) Bemessungsstrom (IEC) Rated current (IEC) 47 A (6.0 mm²) 62 A (10.0 mm²)
  • Page 11: Notizen

    Notizen/Notes: 11 / 12...
  • Page 12: Notes

    Notizen/Notes: Hersteller/Manufacturer: Stäubli Electrical Connectors AG Stockbrunnenrain 8 4123 Allschwil/Switzerland Tel. +41 61 306 55 55 +41 61 306 55 56 mail ec.ch@staubli.com www.staubli.com/electrical 12 / 12...
