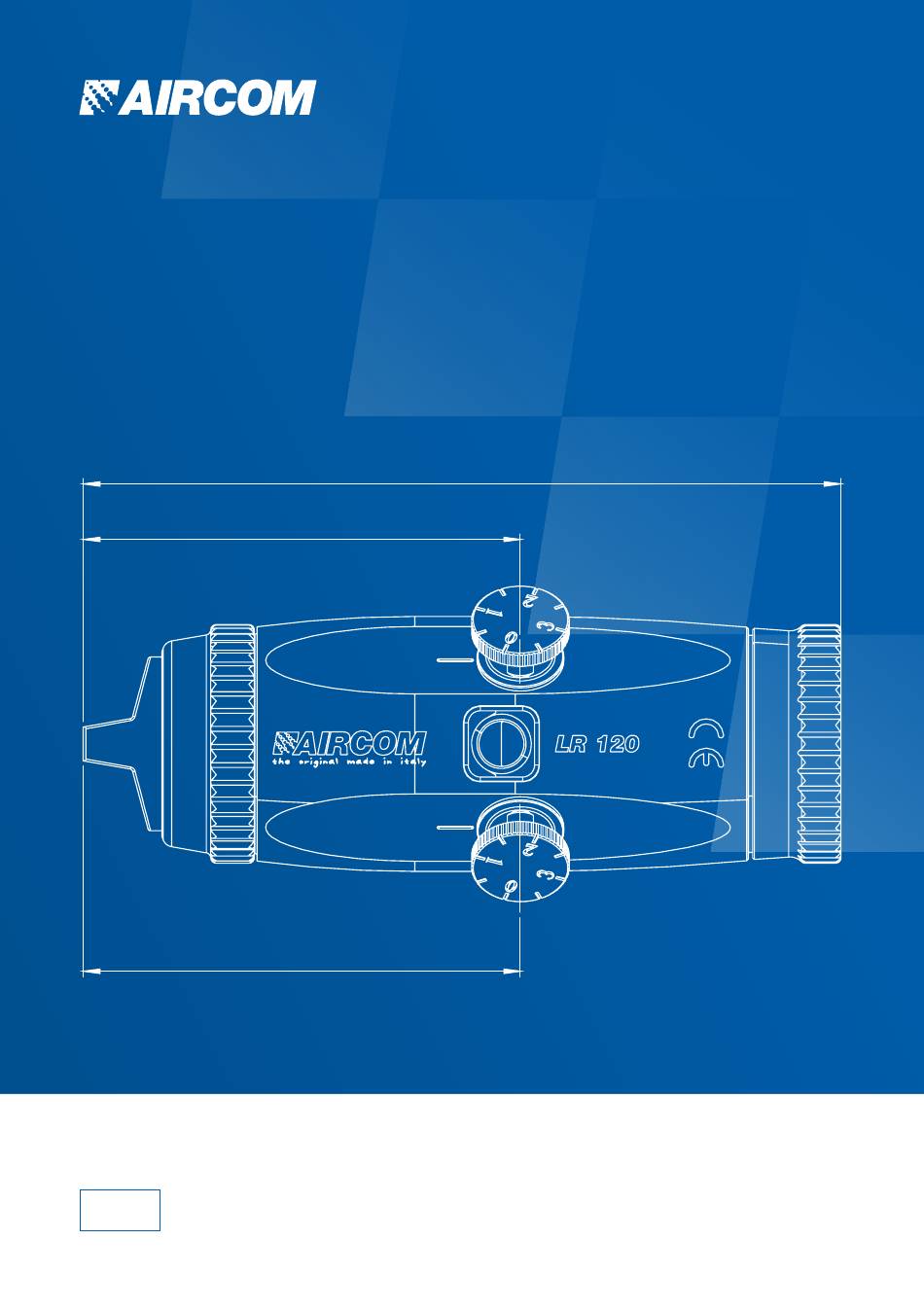

- Page 1 CONVENTIONAL SPRAY GUNS LR series Instruction manual mod. LR110, LR110-Q, LR120, LR120-Q aircom.it...
- Page 2 AVAILABLE MODELS mod. LR110 Fan adjustment mod. LR110-Q Possibility of using the quick release block, the AIRCOM® QRB mod. LR120 Fan and atomization air adjustment mod. LR120-Q Fan and atomization air adjustment and possibility of using the quick release block, the AIRCOM®...
-
Page 3: Table Of Contents
LR series LR series Index Instruction Manual Warnings Maintenance and cleaning Installation and start-up Technical data Troubleshooting Spare parts and components Certified quality Support Notes WARNINGS! Carefully read and follow all instructions and safety precautions before using the product. MANUALS Our manuals are available at aircom.it/en/support/manuals/... -
Page 4: Warnings
6-8. Do not use the compressed air supply, and the acids, alkaline solutions or other cleaning liquid supply. Use only original AIRCOM agents containing sodium hydroxide, ® accessories, spare parts, and related... - Page 5 LR series INSTALLATION TECHNICAL SPECIFICATIONS Connection hole diameter: 10,2 mm. Size of pipe junctions: • Control air inlet: = ¼ gas • Atomizing air inlet: = ¼ gas • Product inlet: = ¼ gas Gun weight: 0,65 kg Gun size:...
-
Page 6: Installation And Startup
LR series INSTALLATION AND STARTUP Before using a new gun or a new product, clean the gun thoroughly with an appropriate solvent. Powering should be done with dry, filtered air and regulated to constant pressure. DIRECTIONS FOR GUN OPERATION Pipe Ø 6 ÷ 8 Plunger opening ≥... - Page 7 LR series SEQUENZA REGOLAZIONI Lock the gun to the system using the fastening bracket and orient the head towards the appropriate coverage direction. When using the -Q version, lock the system block first, and then hook the gun. Connect the atomization air, control...
-
Page 8: Technical Data
LR series TECHNICAL DATA HEAD B-A HEAD SHOTS FLOW RATE OF ATOMIZATION ø NOZZLE THE FLUID PRESSURE CONSUMPTION (g/min) (kg/cm²) (L/min) ø ø ø ø NOTES Pump pressure 0.8 to 1.0 Kg/cm². Liquid used for testing: water. Ford cup viscosity 4 = 11 sec. -
Page 9: Troubleshooting
LR series TROUBLESHOOTING Anomaly Problem / Solution No pressure is getting to the gun Check air system No atomization Supply valve kit part. [G5] worn out Replace supply valve kit part. [G5] worn out The head part. [79], the nozzle part [73] and the rod part [B11] are worn out. -
Page 10: Spare Parts And Components
CONVENTIONAL SPRAY GUNS LR series mod. LR110, LR110-Q, LR120, LR120-Q Spare parts and components aircom.it... - Page 11 LR series SPARE PARTS mod. LR110 DETAILS LIST [x1] Spring [x1] Spring [x1] Ferrule [x1] Nozzle [x1] Head [x1] Plunger [x1] Threaded insert [x1] Hand wheel [x1] Rod [x1] Stopper with a skip [x1] Gasket [x1] Gasket kit [x1] Supply valve kit...
- Page 12 LR series SPARE PARTS mod. LR110-Q DETAILS LIST [x1] Spring [x1] Spring [x1] Ferrule [x1] Nozzle [x1] Junction [x2] Junction [x1] Head [x1] Lock pin [x1] Plunger [x1] Threaded insert [x1] Hand wheel [x1] Rod [x1] Stopper with a skip...
- Page 13 LR series SPARE PARTS mod. LR120 DETAILS LIST [x1] Spring [x1] Spring [x1] Ferrule [x1] Nozzle [x1] Head [x1] Plunger [x1] Threaded insert [x1] Hand wheel [x1] Rod [x1] Stopper with a skip [x1] Gasket [x1] Gasket kit [x1] Supply valve kit...
- Page 14 LR series SPARE PARTS mod. LR120-Q DETAILS LIST [x1] Spring [x1] Spring [x1] Ferrule [x1] Nozzle [x1] Junction [x2] Junction [x1] Head [x1] Lock pin [x1] Plunger [x1] Threaded insert [x1] Hand wheel [x1] Rod [x1] Stopper with a skip...
- Page 15 LR series COMPATIBLE CNN Cap-Nozzle-Needle mod. LR110, LR110-Q, LR120, LR120-Q NOZZLE NEEDLE aircom.it Spare parts and components - 15...
-
Page 16: Certified Quality
LR series CERTIFIED QUALITY CERTIFICATIONS THREE-COLOR INSERT AIRCOM products certified Each gun is marked with a three-color ® according to norm EN 13 966 - 1 (VDMA- three-dimensional seal. It represents an Einheisblatt 366) therefore additional guarantee of authenticity and... -
Page 17: Notes
LR series NOTES aircom.it Instruction Manual - 17... - Page 18 LR series NOTES 18 - Instruction Manual aircom.it...
- Page 19 AIRCOM SRL © 2022 - ALL RIGHTS RESERVED...
- Page 20 DISCOVER ALL PRODUCTS Follow us aircom.it...
