netvox RA02C User Manual
  1. Manuals
  2. Brands
  3. netvox Manuals
  4. Security Sensors
  5. RA02C
  6. User manual

netvox RA02C User Manual

Wireless co detector
Hide thumbs Also See for RA02C:
Table of Contents

Advertisement

Quick Links

Download this manual

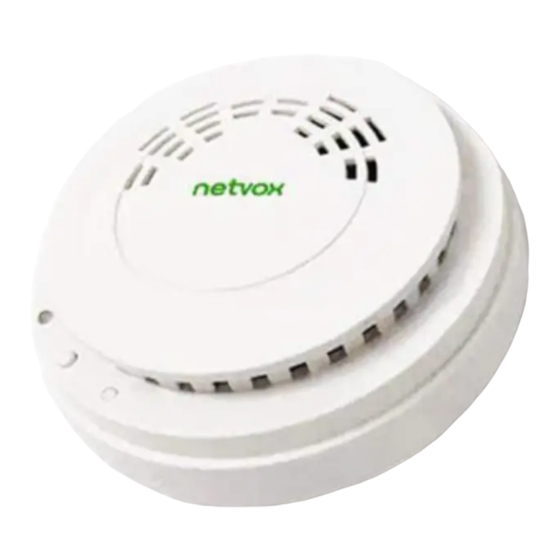

Model: RA02C
Wireless CO Detector
Wireless CO Detector
RA02C
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall
be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written
permission of NETVOX Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RA02C and is the answer not in the manual?

Questions and answers

Related Manuals for netvox RA02C

Summary of Contents for netvox RA02C

  • Page 1 User Manual Copyright©Netvox Technology Co., Ltd. This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written...

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ............................2 2. Appearance ............................3 3. Main Feature............................3 4. Set up Instruction ..........................4 5. Data Report ............................5 5.1 Example of ReportDataCmd ....................... 6 5.2 Example of ConfigureCmd ......................6 5.3 Example for MinTime/MaxTime logic ..................7 6.

  • Page 3: Introduction

    1. Introduction RA02C is a CO/temperature detector for Netvox Class-A devices based on the LoRaWAN open protocol and is compatible with the LoRaWAN protocol. LoRa Wireless Technology: LoRa is a wireless communication technology famous for its long-distance transmission and low power consumption. Compared with other communication methods, LoRa spread spectrum modulation technique greatly extend the communication distance.

  • Page 4: Appearance

     Applicable to the third-party platforms: Actility/ ThingPark, TTN, MyDevices/ Cayenne  Low power consumption and long battery life Note: Battery life is determined by the sensor reporting frequency and other variables. Please refer to http://www.netvox.com.tw/electric/electric_calc.html. On this website, users can find various types of batteries in different configurations.

  • Page 5: Set Up Instruction

    4. Set up Instruction On/Off Power on Insert batteries. (Users may need a screwdriver to open the cover) Press any function key to turn on the device. After releasing the key, the red and green indicators Turn on will flash at the same time to indicate that it turns on successfully. Press and hold both keys for 5 seconds till the green indicator flashes and then release;...

  • Page 6: Data Report

    (The fire alarm bit is 0.) Note: (1) The device report interval will be programmed based on the default firmware. (2) The interval between two reports must be the minimum time. The reported data is decoded by the Netvox LoRaWAN Application Command document and http://cmddoc.netvoxcloud.com/cmddoc...

  • Page 7: Example Of Reportdatacmd

    Version– 1 byte –0x01——the Version of NetvoxLoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device The devicetype is listed in Netvox LoRaWAN Application Devicetype doc ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype NetvoxPayLoadData– Fixed bytes (Fixed =8bytes)

  • Page 8: Example For Mintime/Maxtime Logic

    Reserved 0x01 ReportReq (2bytes Unit: s) (2bytes Unit: s) (1byte Unit: 0.1v) (4Bytes, Fixed 0x00) Config Status Reserved 0x81 ReportRsp (0x00_success) (8Bytes, Fixed 0x00) RA02C 0x11 ReadConfig Reserved 0x02 ReportReq (9Bytes, Fixed 0x00) ReadConfig MinTime MaxTime BatteryChange Reserved 0x82 ReportRsp...
  • Page 9 Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V. MaxTime Sleeping (MinTime) sleeping sleeping sleeping Wakes up and Wakes up and Wakes up and Wakes up and Wakes up and collects data collects data collects data collects data collects data...

  • Page 10: Important Maintenance Instruction

    6. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture, or any liquid might contain minerals and thus corrode electronic circuits. If the device gets wet, please dry it completely.

Table of Contents
