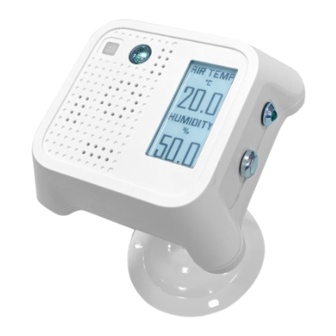

Wireless multifunction co2 sensor
Hide thumbs Also See for RA08B Series:
Table of Contents

Advertisement

Quick Links

Download this manual
RA08B Series
Wireless Multifunction CO
Sensor
2
Wireless Multifunction CO
Sensor
2
RA08B Series
User Manual
Copyright© Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict
confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The
specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading

Related Manuals for netvox RA08B Series

Summary of Contents for netvox RA08B Series

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ................3 2. Appearance ................. 3 3. Features ..................4 4. Set-up Instruction ............... 4 4.1 On/Off .................. 4 4.2 Network Joining ..............4 4.3 Function Key ................ 5 4.4 Sleeping Mode ..............5 4.5 Low Voltage Warning ............5 5.

  • Page 3: Introduction

    1. Introduction RA08B series is a Class A device based on LoRaWan open protocol. It could be used for temperature, CO , PIR, air pressure, illuminance, and TVOC detection. Data collected by sensors would be shown on the E-ink display. Users are able to know the data through one quick peek.

  • Page 4: Features

    ⚫ Reading data and setting alarms on SMS or email by configuring parameters through third-party platforms (optional) ⚫ Support third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne ⚫ Low-power design for longer battery life Note: Please refer to http://www.netvox.com.tw/electric/electric_calc.html for battery life calculation and other detailed information 4. Set-up Instruction 4.1 On/Off Power on Insert batteries.

  • Page 5: Function Key

    4.3 Function Key Turn off Long press the function key for 5 seconds and the green indicator flashes once. Press and hold for 5 Release the function key and the green indicator flashes 10 times. seconds The green indicator remains off: Fail Reset to factory setting / Turn off The green indicator flashes 20 times: Success Press and hold for 10...

  • Page 6: Data Report

    2. TVOC level Very good < 150 ppm Good 150-500 ppm Medium 500-1500 ppm Poor 1500-5000 ppm > 5000 ppm 3. Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://www.netvox.com.cn:8888/cmddoc to resolve uplink data.

  • Page 7: Example Of Reportdatacmd

    Version– 1 bytes –0x01——the Version of NetvoxLoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device The devicetype is listed in Netvox LoRaWAN Application Devicetype V1.9.doc ReportType –1 byte–the Presention of the NetvoxPayLoadData，according the devicetype NetvoxPayLoadData– Fixed bytes (Fixed =8bytes) Tips 1.
  • Page 8 Bit22-31:Reserved) Uplink: Data #1 01A0019F097A151F020C01 1st byte (01): Version byte(A0): DeviceType 0xA0 － RA08B Series byte (01): ReportType byte(9F): Battery－3.1V (Low Voltage) Battery=0x9F, binary=1001 1111, if bit 7= 1, it means low voltage. The actual voltage is 0001 1111 = 0x1F = 31, 31*0.1v =3.1v byte(097A): Temperature－24.26℃, 97A (Hex)= 2426 (Dec), 2426*0.01℃...
  • Page 9 000032 (Hex) = 50 (Dec), 50*1Lux = 50Lux Data #3 01A0039FFFFFFFFF000007 byte (01): Version byte(A0): DeviceType 0xA0 － RA08B Series byte (03): ReportType byte(9F): Battery－3.1V (Low Voltage) Battery=0x9F, binary=1001 1111, if bit 7= 1, it means low voltage.

  • Page 10: Example Of Configurecmd

    5.2 Example of ConfigureCmd FPort: 0x07 Description Device CmdID DeviceType NetvoxPayLoadData ConfigReport MinTime MaxTime Reserved 0x01 (2bytes Unit:s) (2bytes Unit:s) (2Bytes,Fixed 0x00) ConfigReport Status 0x81 Reserved (8Bytes,Fixed 0x00) (0x00_suA0ess) ReadConfigR 0x02 Reserved (9Bytes,Fixed 0x00) eportReq ReadConfigR MinTime MaxTime Reserved 0x82 eportRsp (2bytes Unit:s) (2bytes Unit:s)
  • Page 11 (3) Calibrate CO sensor parameters Downlink: 03A00103E8000000000000 //Choose Target-calibrations (calibrate as the CO level reaches 1000ppm) (CO level could be configured) 03A0020000000000000000 //Choose Zero-calibrations (calibrate as the CO level is 0ppm) 03A0030000000000000000 //(calibrate as the CO level is 400ppm) 03A0040000000000000000 //Choose ABC-calibrations (Note: The device would auto-calibrate as it turns on.

  • Page 12: Readbackupdata

    5.3 ReadBackUpData Fport: 0x12 Description CmdID PayLoad ReadBackUpDataReq 0x01 Index (1Byte) ReadBackUpDataRsp 0x81 None WithOutData Temperature Humidity Occupy ReadBackUpDataRsp illuminance (3Bytes, 0x91 (Signed2Bytes, (2Bytes, (1Byte 0:Un Occupy WithDataBlock (2Byte, 1ppm) unit:1Lux) unit: 0.01°C) unit:0.01%) 1: Occupy) TVOC ReadBackUpDataRsp AirPressure 0x92 (3Bytes, Reserved(3Bytes,fixed 0x00) WithDataBlock...

  • Page 13: Example Of Globalcalibratecmd

    5.4 Example of GlobalCalibrateCmd FPort ： 0x0E Sensor Description CmdID PayLoad(Fix =9 Bytes) Type Channel (1Byte) Multiplier Divisor DeltValue Reserved SetGlobalCalibrateReq 0x01 0_Channel1 (2bytes, (2bytes, (2bytes, (2Bytes, 1_Channel2, etc Unsigned) Unsigned) Signed) Fixed 0x00) Channel (1Byte) Status SetGlobalCalibrateRsp 0x81 0_Channel1 (1Byte, Reserved (7Bytes,Fixed 0x00) 1_Channel2,etc...

  • Page 14: Set/Getsensoralarmthresholdcmd

    Response:8206000001000100640000 (3) Calibrate the RA08B CO sensor by decreasing 100ppm SensorType: 0x06; channel: 0x00; Multiplier: 0x0001; Divisor: 0x0001; DeltValue: 0xFF9C SetGlobalCalibrateReq: Downlink: 01060000010001FF9C0000 Response: 8106000000000000000000 GetGlobalCalibrateReq: Downlink: 0206000000000000000000 Response: 82060000010001FF9C0000 (4) ClearGlobalCalibrateReq: Downlink: 0300000000000000000000 Response: 8300000000000000000000 5.5 Set/GetSensorAlarmThresholdCmd Fport:0x10 CmdID CmdDescriptor Payload (10Bytes) (1Byte)

  • Page 15: Installation

    SensorHighThreshold SensorLowThreshold Channel(1Byte, SensorType (4Bytes,Unit:same as (4Bytes,Unit:same as GetSensorAlarm 0x00_Channel1, (1Byte,Same as the 0x82 reportdata in fport6, reportdata in fport6, ThresholdRsp 0x01_Chanel2, SetSensorAlarmThresholdReq’s 0Xffffffff_DISALBLE 0Xffffffff_DISALBLEr 0x02_Channel3,etc) SensorType) rHighThreshold) HighThreshold) (1) Set the temperature HighThreshold as 40.05℃ and LowThreshold as 10.05℃ SetSensorAlarmThresholdReq: (when the temperature is higher than the HighThreshold or lower than the LowThreshold, the device would upload reporttype = 0x05) Downlink: 01000100000FA5000003ED // 0FA5 (Hex) = 4005 (Dec), 4005*0.01°C = 40.05°C,...

  • Page 16: Safety Guide

    7. Safety Guide Kindly pay attention to the following in order to achieve the best maintenance of the product: • Do not put the device near or submerge into water. Minerals in rain, moisture, and other liquids could cause corrosion of electronic components.

This manual is also suitable for:

Ra08b01Ra08b02
