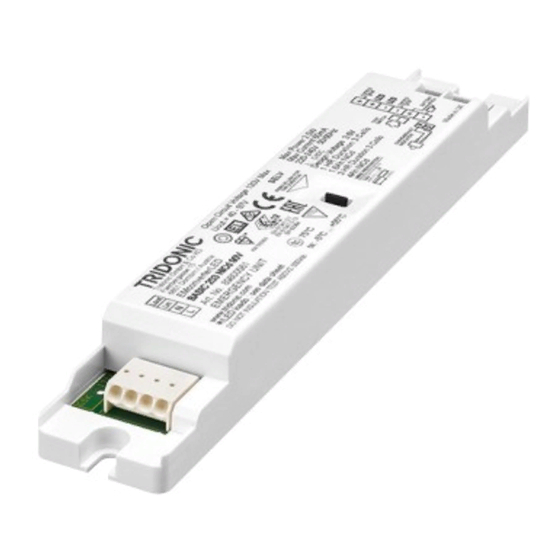

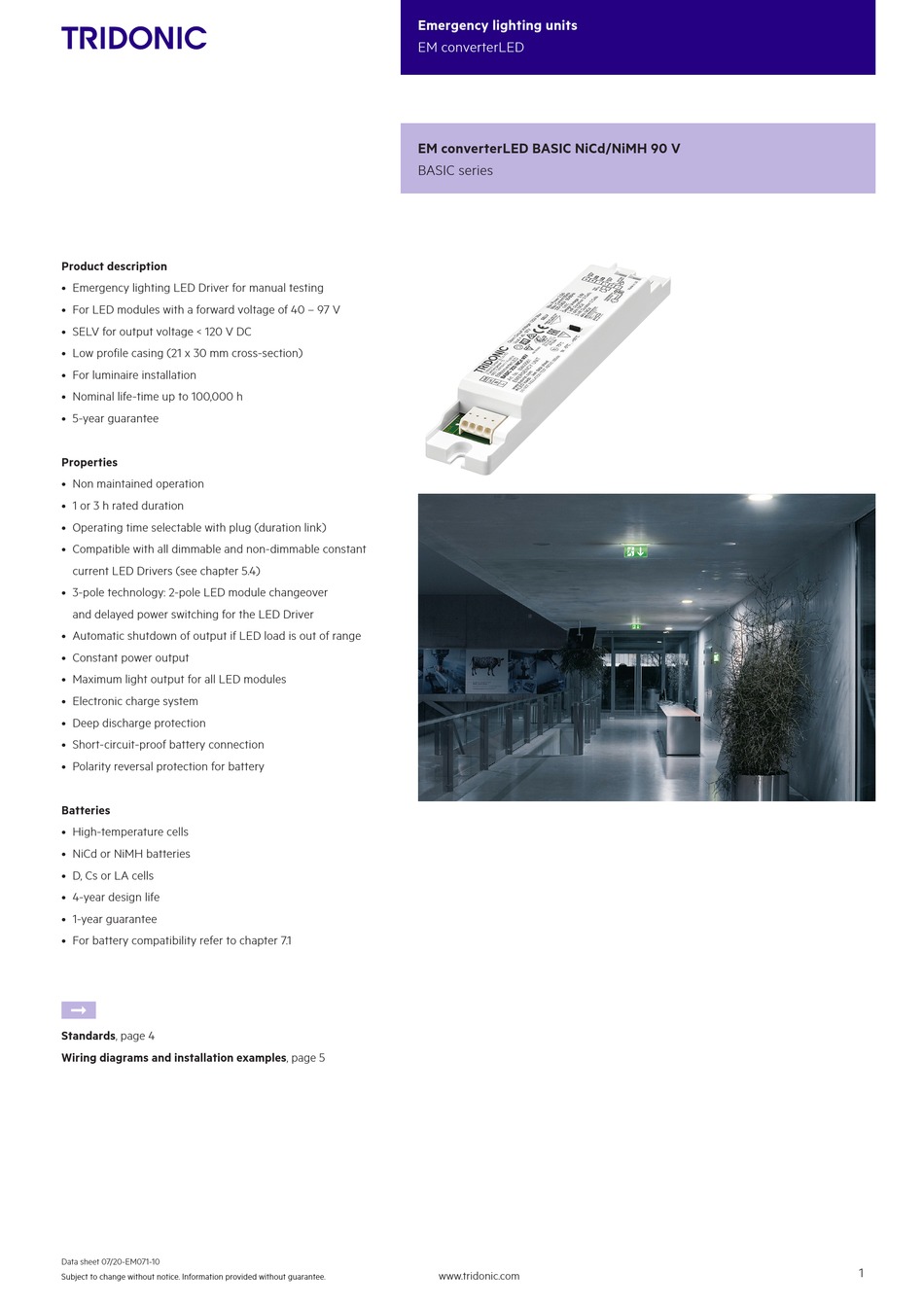

Product description
• Emergency lighting LED Driver for manual testing
• For LED modules with a forward voltage of 40 – 97 V
• SELV for output voltage < 120 V DC
• Low profile casing (21 x 30 mm cross-section)
• For luminaire installation
• Nominal life-time up to 100,000 h
• 5-year guarantee
Properties
• Non maintained operation
• 1 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with all dimmable and non-dimmable constant
current LED Drivers (see chapter 5.4)
• 3-pole technology: 2-pole LED module changeover
and delayed power switching for the LED Driver
• Automatic shutdown of output if LED load is out of range
• Constant power output
• Maximum light output for all LED modules
• Electronic charge system
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery
Batteries
• High-temperature cells
• NiCd or NiMH batteries
• D, Cs or LA cells
• 4-year design life
• 1-year guarantee
• For battery compatibility refer to chapter 7. 1
È
Standards, page 4
Wiring diagrams and installation examples, page 5
Data sheet 07/20-EM071-10
Subject to change without notice. Information provided without guarantee.
Emergency lighting units
EM converterLED
EM converterLED BASIC NiCd/NiMH 90 V
BASIC series
www.tridonic.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BASIC Series and is the answer not in the manual?

Questions and answers

Related Manuals for Tridonic BASIC Series

Summary of Contents for Tridonic BASIC Series

  • Page 1 Emergency lighting units EM converterLED EM converterLED BASIC NiCd/NiMH 90 V BASIC series Product description • Emergency lighting LED Driver for manual testing • For LED modules with a forward voltage of 40 – 97 V • SELV for output voltage < 120 V DC •...

  • Page 2: Basic Series

    Emergency lighting units EM converterLED EM converterLED BASIC NiCd/NiMH 90 V BASIC series Technical data Rated supply voltage 220 – 240 V Mains frequency 50 / 60 Hz Typ. λ (at 230 V, 50 Hz) 0.6C LED module forward voltage range 40 –...

  • Page 3: Product Description

    LED EM green, 0.3 m CON 89800270 25 pc(s). 200 pc(s). 0.005 kg LED EM green, HO 0.3 m CON 89800272 25 pc(s). 200 pc(s). 0.005 kg Data sheet 07/20-EM071-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.

  • Page 4: Installation & Wiring

    If the measured tc temperature is approx. 5 K below tc max., ta tempera- ture should be checked and eventually critical components (e.g. ELCAP) measured. Detailed information on request. Data sheet 07/20-EM071-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 5 150 W in operation Neutral – – One LED module is operated in emergency mode. LED Module All LED modules are operated in mains mode. – Data sheet 07/20-EM071-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 6 150 W in operation Neutral – – LED Module One LED module is operated in emergency mode. All LED modules are operated in mains mode. – Data sheet 07/20-EM071-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 7 LED Driver to the EM converterLED module when conside- ring the max. permitted lead length of the LED Driver. Leads should always be kept short as possible. Data sheet 07/20-EM071-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.

  • Page 8: Mechanical Values

    8.0 mm stripped insulation Two-piece batteries are supplied with a 200 mm lead with 4.8 mm receptacle at each end and insulting covers to connect the separate sticks together. Data sheet 07/20-EM071-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.

  • Page 9: Electrical Values

    850 – 960 mA battery discharge current (tolerance) LED current at nominal battery voltage and min. battery discharge current LED current at nominal battery voltage and max. battery discharge current Data sheet 07/20-EM071-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 10 10 seconds to enable the EM converterLED to read the new link position on reconnection of the battery and mains. It will lead to a false battery failure indication if the link is changed after installation without this reset. Data sheet 07/20-EM071-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 11 The battery will be charged below 0. 9 V. The EM converterLED will indicate a battery fault. The emergency lighting LED Driver will recharge the battery normally after running the test of 61347-2-7 CL 22.3 (abnormal operating conditions). Data sheet 07/20-EM071-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 12 Emergency lighting units EM converterLED 7.3 Accu-NiCd 8.3 Additional information Additional technical information at www.tridonic.com → Technical Data 4.2 / 4.5 Ah International designation KRMU 33/62 Guarantee conditions at www.tridonic.com → Services Battery voltage/cell 1.2 V Cell type Case temperature range Life-time declarations are informative and represent no warranty claim.
