INSTA LLATION INSTRUCTIONS
BOX CONTENTS:
• AutoFlush System Valve with Cord
• Installation Instructions.

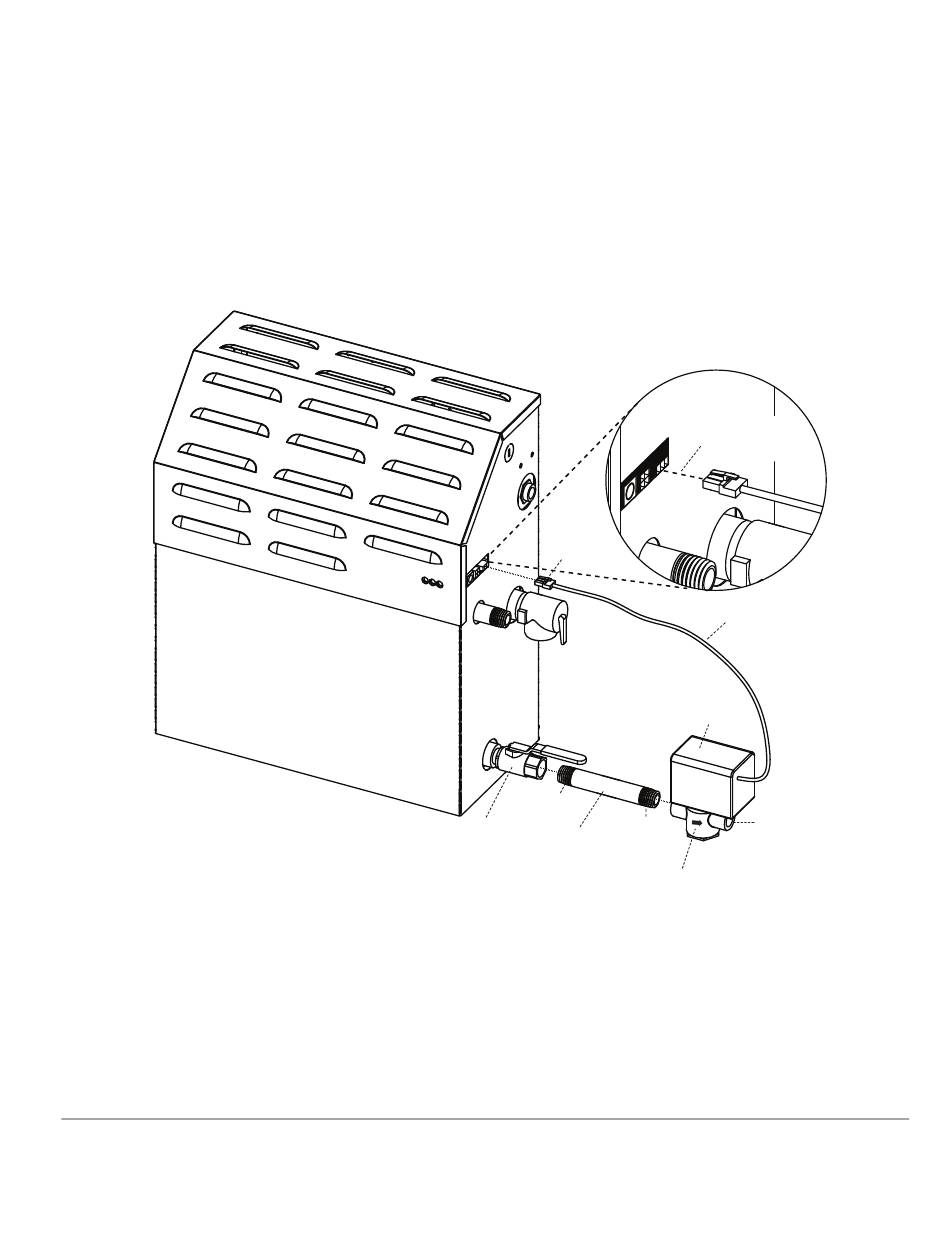

ASSEMBLY OF OPTIONAL AUTOFLUSH
Steam Generator
O P E R AT I O N
The optional AutoFlush System feature automatically drains the MrSteam
system following each use. A time delay allows the water to cool down
(about two hours) before it drains resulting in a safe and gentle operation.
mr . steam
®
hello@mrsteam.com www.mrsteam.com
43-20 34th Street, Long Island City, NY 11101 1 800 76 STEAM I 9410 S. La Cienega Blvd. Inglewood CA 90301 1 800 72 STEAM
®
®
SYSTEM
Drain Valve
(shown in the correct open position)
DO NOT REMOVE THIS DRAIN VALVE
Optional AutoFlush
3 Pin Connector
for AutoFlush
AutoFlush
Cord
Connector
AutoFlush Valve
End "B"
End "A"
Nipple
copper or
brass nipple
1
⁄
1" NPT x 3 " or longer
2
Arrow indicates correct
(not supplied)
direction of flow
®
System
AutoFlush Cord
Plumb to
Drain Line
