Water Right Impression Series Installation Instructions & Owner's Manual

Metered water softeners

Hide thumbs Also See for Impression Series:

Installation instructions & owner's manual (32 pages)

Installation instructions and owner's manual (32 pages)

Installation instructions & owner's manual (32 pages)

Table Of Contents

Installation Instructions & Owner's Manual

Impression/Impression Plus Series

Impression/Impression Plus RC Series

Metered Water Softeners

For Models:

• IM

• IMP

• IMC

• IMPC

• IMRC

• IMPRC

• IMT

• IMPT

Table of Contents

Summary of Contents for Water Right Impression Series

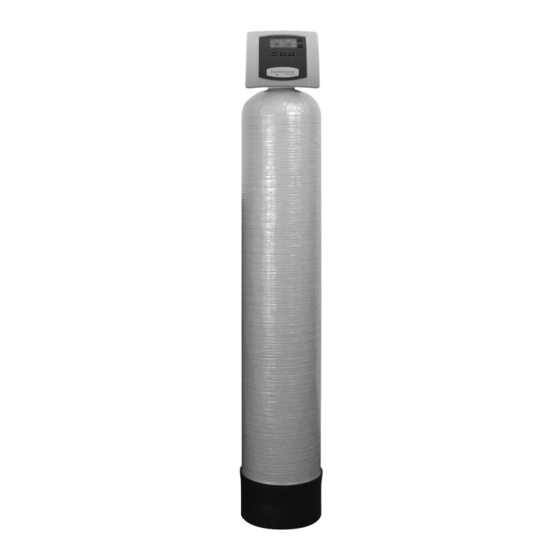

Page 1 Installation Instructions & Owner’s Manual Impression/Impression Plus Series ® Impression/Impression Plus RC Series Metered Water Softeners For Models: • IM • IMP • IMC • IMPC • IMRC • IMPRC • IMT • IMPT...
Page 2: Table Of Contents
Your Impression Series water softener is a precision built, high quality product. These units will deliver softened water for many years to come when installed and operated properly. Please study this manual carefully and understand the cautions and notes before installing.
Page 3 PRE-INSTALLATION INSTRUCTIONS The manufacturer has preset the water treatment unit’s sequence of cycles, cycle times, salt dose, exchange capacity and salt dose refill time. THE DEALER SHOULD... THE INSTALLER SHOULD... THE HOMEOWNER SHOULD... •Read this page and guide the installer •Program installer settings including hardness, •Read Programming Procedures section.
Page 4: Bypass Valve
BYPASS VALVE The bypass valve is typically used to isolate the control valve from the plumbing system’s water pressure in order to perform control valve repairs or maintenance. The 1” full flow bypass valve incorporates four positions, including a diagnostic position that allows a service technician to have pressure to test a system while providing untreated bypass water to the building.
Page 5: Installation
INSTALLATION GENERAL INSTALLATION & SERVICE WARNINGS The control valve, fittings and/or bypass are designed to accommodate minor plumbing misalignments. There is a small amount of “give” to properly connect the piping, but the water treatment unit is not designed to support the weight of the plumbing. Do not use Vaseline, oils, other hydrocarbon lubricants, or spray silicone anywhere.
Page 6 INSTALLATION 8. INSTALLING GROUND: To maintain an electrical ground in metal plumbing of a home’s cold water piping (such as a copper plumbing system), install a ground clamp or jumper wiring. GROUND STRAP NOTE: If replacing an existing unit, also replace the ground clamps/wire. If removing a unit, replace the piping with the same type of piping as the original to assure plumbing integrity and grounding.
Page 7 This page intentionally left blank.
Page 8: Programming Procedures
PROGRAMMING PROCEDURES 1 . Set Time of Day Typically, time of day should only need to be set after extended power outages or when daylight saving time begins or ends or after the battery has been replaced. If an extended power outage occurs, the time of day will flash on and off indicating that the time should be reset. To set the clock: STEP 1 –...
Page 9: Startup Instructions
FOR DOWNFLOW REGENERATING UNITS STARTUP INSTRUCTIONS FLUSHING OF SYSTEM: To flush the system of any debris and air after installation is complete, please perform the following steps: 1. Rotate bypass handles to the bypass mode (Fig. 2 on page 4) . 2.
Page 10: Operating Displays And Maintenance
OPERATING DISPLAYS AND MAINTENANCE: 1 . GENERAL OPERATION: When the system is operating, one of five displays may be shown and will alternate with the installing dealer’s name and phone number for future service (if set). Pressing NEXT will alternate between the displays. 1.
Page 11 OPERATING DISPLAYS AND MAINTENANCE: 4 . POWER LOSS AND BATTERY REPLACEMENT: If an extended power outage occurs, the control valve will retain the time of day settings until the board’s battery is depleted. Once the battery is depleted, the display will appear dark and absent of any information. If this occurs, following these steps will determine if the problem is a low battery or a board failure.
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION A. Depleted battery. A. See Operating Display and Maintenance section. B. Control valve power adapter not plugged into outlet B. Plug power adapter into outlet or connect or power cord end not connected to PC board power cord end to PC board connection.
Page 13 TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION A. Turn bypass handles to place bypass in A. Bypass valve in bypass position. service position. 7 . Control valve does B. Meter is not connected to meter connection on PC B. Connect meter to three pin connection labeled not regenerate board.
Page 14 TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION A. Injector is plugged. A. Remove injector and replace. B. Faulty regenerant piston. B. Replace regenerant piston. C. Regenerant line connection leak. C. Inspect regenerant line for air leak. 12 . Control valve fails to D.
Page 15 TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION 16 . E3, Err – 1003, A. Snap drive bracket in properly then Press Err – 103 = Control A. Drive bracket not snapped in properly and out NEXT and REGEN buttons for 3 seconds to valve motor ran enough that reduction gears and drive gear do not resynchronize software with piston position...
Page 16 TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION 20 . Err – 201 200 errors are only A. Invalid regeneration cycle step detected. A. Replace PC board. viewable in history screens. These do not flash when error occurs. A. Short power disruption. A. Check transformer voltage and verify power source. 21 .
Page 17: Replacement Parts
REPLACEMENT PARTS FRONT COVER AND DRIVE ASSEMBLY Item # Legacy Part # Current Part # Description Qty . CV3540-A 100246376 Black Impression cover ® CV3540-W-A 100246378 Gray Impression cover ® CV3540P-W-A 100244820 Gray Impression Plus cover ® CV3107-1 100246273 Motor Assembly CV3002-A 100246193 Drive assembly (includes #5 and #6)
Page 18 REPLACEMENT PARTS PISTON ASSEMBLY Item # Legacy Part # Current Part # Description Qty . CV3005-02 100249844 1” spacer stack assembly CV3430-01 100249865 1.25” spacer stack assembly CV3004 100246196 Drive cap assembly CV3135 100246281 O-ring 228 (drive cap o-ring) CV3011 100246232 1”...
Page 19 REPLACEMENT PARTS BYPASS VALVE Item No. Legacy Part # Current Part # Description Qty. CV3006 100249845 Bypass assembly CV3147 100246284 Bypass handles REFILL PORT ASSEMBLY Item # Legacy Part # Current Part # Description Qty. CV3195-01 100246323 Refill port plug assembly CH4615 100245862 Elbow locking clip...
Page 20 REPLACEMENT PARTS INJECTOR ASSEMBLIES Item # Legacy Part # Current Part # Description Qty. CV3176 100246304 Injector cap CV3152 100244507 O-ring 135 CV3177-01 100246305 Injector screen CV3010-1Z 100246221 Injector assembly plug CV3010-1A 100246211 A injector assembly, �� CV3010-1B 100246212 B injector assembly, �� CV3010-1C 100246213 C injector assembly, ��...
Page 21 REPLACEMENT PARTS DRAIN LINE ASSEMBLY 3/4” DRAIN LINE ASSEMBLY 1” Item # Legacy Part # Current Part # Description Qty. Item # Legacy Part # Current Part # Description Qty. CH4615 100245862 Elbow locking clip CH4615 100245862 Elbow locking clip CV3166 100246292 Drain FTG body 1...
Page 22 REPLACEMENT PARTS BRINE TANK ASSEMBLY (WR) Item # Legacy Part # Current Part # Description Qty. CG2191-84 100245808 Brine tank cover, injection molded WR CH1095-01 100245856 Optional 18” diameter salt grid Optional 24” diameter salt grid CH1080 100245853 (Does not include 1 1/2” PVC riser legs) BT1833-1A 100245568 18”...
Page 23 REPLACEMENT PARTS LOW PROFILE CABINET AND BRINE TANK Item # Legacy Part # Current Part # Description Qty. (does not include control valve) CJ2TCWSLP-C 100245888 Top Assembly Black CJ2B35E 100244069 Bottom Assembly Light Gray with 474 Brine Assembly Brine Well with Brine Well 474 Assembly 34 5 / 8 ” Not shown CH4850-34.625 100173701...
Page 24: Installation Fitting Assemblies
INSTALLATION FITTING ASSEMBLIES NOTE: Not all available ﬁ ttings are Legacy Current Item # Description Qty . Part # Part # displayed below. Contact For All Assemblies CV3151 100246287 Nut, 1” quick connect manufacturer for optional CV3150 100246286 Split ring ﬁ...
Page 25: Specifications
Specifications SPECIFICATIONS Please use “IMP” as prefix when specifying Impression Plus Series water softeners . IM/IMP/IMC/IMPC SPECIFICATIONS Cabinet Models IM-844 IM-1044 IM-1054 IM-1354 IMC-835 IMC-1035 MODEL IMP-844 IMP-1044 IMP-1054 IMP-1354 IMPC-835 IMPC-1035 Minimum 15,600 @ 3.0 23,600 @ 6.0 35,400 @ 9.0 53,000 @ 12.0 13,600 @ 3.0 23,600 @ 6.0...
Page 26: Warranty
Water Softener Limited Warranty Congratulations. You have purchased one of the nest water treatment systems available. In the unlikely event of a problem due to defects in material and workmanship, we proudly warrant our water softeners to the original owner, when installed in accordance with Water-Right speci cations.
Page 27: Quick Reference Guide
QUICK REFERENCE GUIDE GENERAL OPERATION ERROR When the system is operating, one of four displays will be shown: If the display toggles between “Error” CALL FOR SERVICE 1. Time of day/gpm and an error code (i.e. a number), call a ERROR 2.
