Advantech WISE-4210-S231 Startup Manual

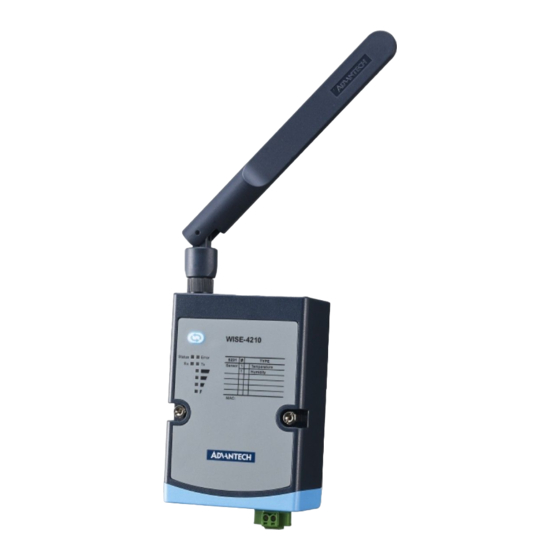

WISE-4210-S231
LPWAN Temperature/Humidity Starter Kit
Startup Manual

Overview

Thank you for purchasing the WISE-4210-S231 LPWAN
Temperature/Humidity Starter Kit. This quick start guide is
intended to help you deploy your new solution. The guide
contains basic information on the power and application wir-
ing. Should you require additional instructions, please refer
to WISE-4210-S231 and WISE-4210-AP user manual.

Packaging List

• 1 x WISE-4210-S231
• 1 x WISE-4210-AP
• 2 x Antenna
• 1 x WebAccess/SCADA 75 tags license key
• 2 x Mounting bracket
• 1 x Quick start manual
• 1 x China RoHS declaration (NA series only)
• 2 x 60w adapter
• 2 x 183cm power cord
• 1 x 70 cm Ethernet cable
• 1 x Screwdriver

Input Power Requirements

The WISE-4210 is designed for a standard industrial
unregulated 24 VDC power supply. For some applications,
it can also accept +10 to +50 VDC power input with 200 mV
peak-to-peak power ripple. The immediate ripple voltage
should be between +10 and +50 VDC. Batteries may also
be used as an alternative power source.
WISE-4210-AP is the LPWAN AP, power source comes
from adapter.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service:
http://support.advantech.com/
This startup manual is for WISE-4210-S231 Series.
Part No. 2043421000
Printed in Taiwan
Power Supply & Application Wiring
WISE-4210-S231 Power Supply Wiring
WISE-4210-AP Power Supply Wiring

System Architecture

Edition 1
August 2020
WISE-4210-S231 Startup Manual 1
