Advantech WISE-2210 Startup Manual

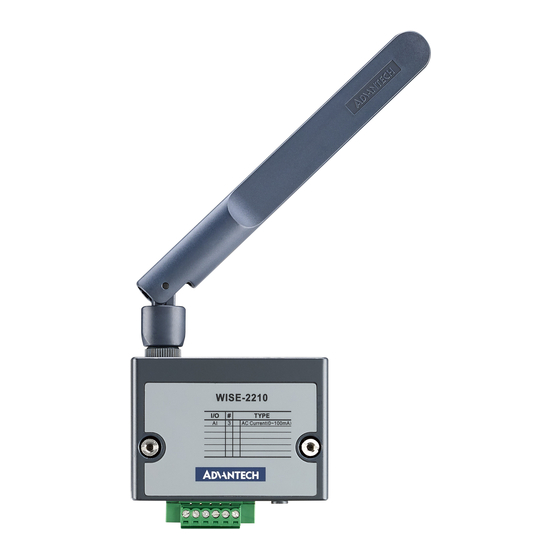

WISE-2210
LPWAN Energy Management Starter Kit
Startup Manual
Overview
Thank you for purchasing the WISE-2210 LPWAN Energy
Management Starter Kit. This quick start guide is intended
to help you deploy your new solution. The guide contains
basic information on the power and application wiring.
Should you require additional instructions, please refer to
WISE-2210 and WISE-4210-AP user manual.
Packaging List
• 1 x WISE-2210
• 1 x WISE-4210-AP
• 2 x Antenna
• 1 x WebAccess/SCADA 75 tags license key
• 3 x 5~100A current transformer
• 2 x Mounting bracket
• 1 x Quick start manual
• 1 x China RoHS declaration (NA series only)
• 1 x 60w adapter
• 1 x 183cm power cord
• 1 x 70 cm Ethernet cable
• 1 x Screwdriver
Input Power Requirements
WISE-2210 is plug and play analog input module, power
source comes from an analog input which is connected to a
0~100 mA current transformer. In other words, WISE-2210
measures data and gets power current from connected cur-
rent transformer. WISE-4210-AP is the LPWAN AP, power
source comes from adapter.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service:
http://support.advantech.com/
This startup manual is for WISE-2210 Series.
Part No. 2043221010
Printed in Taiwan

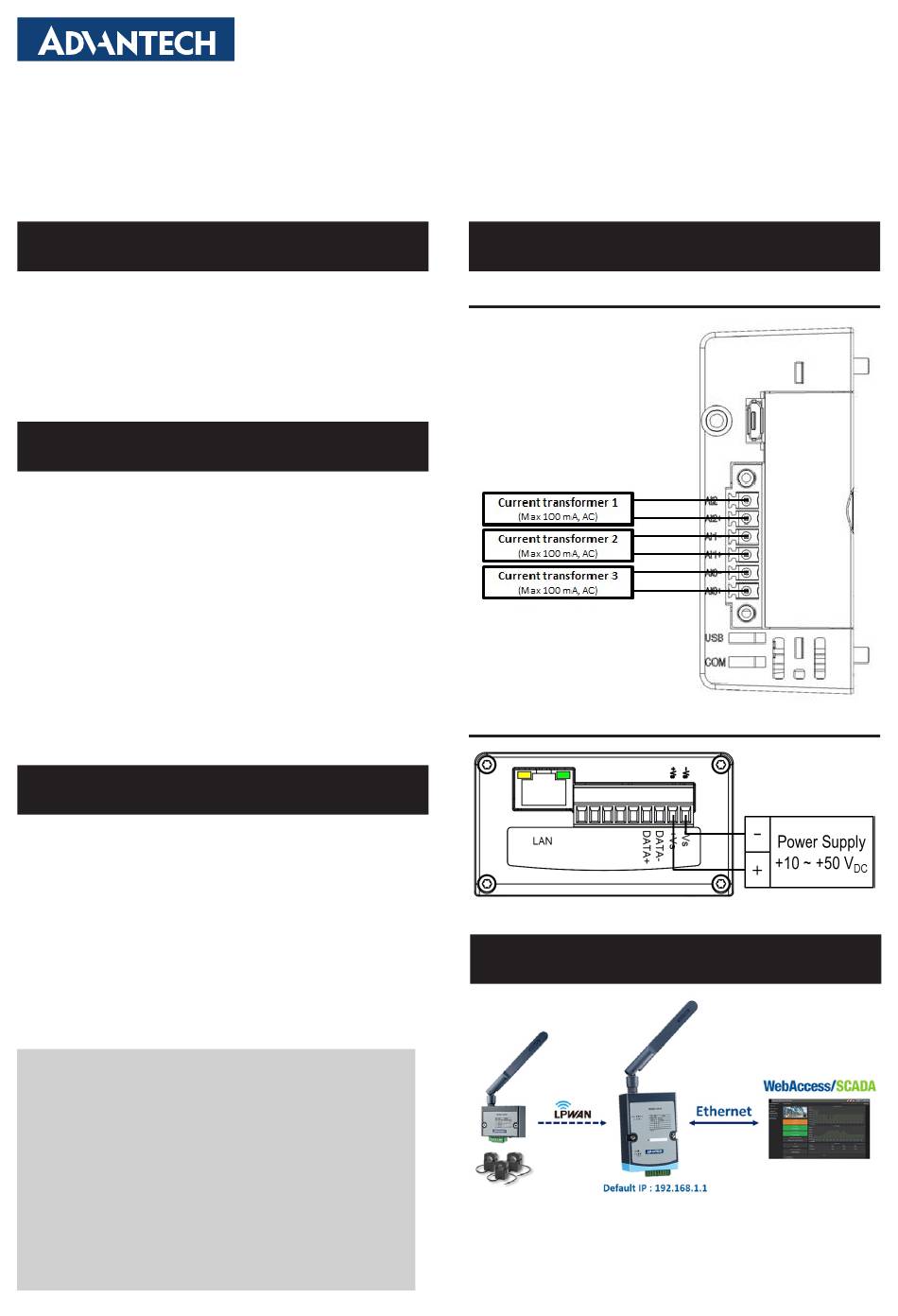

Power Supply & Application Wiring
WISE-2210 Application Wiring
WISE-4210-AP Power Supply Wiring
System Architecture
Edition 1
August 2020
WISE-2210 Startup Manual 1
