- Page 1 User Manual WISE-5580 High Performance DIN-Rail PC Controller w/ 2xGbE, 1 x mPCIe, 4 x USB, VGA, HDMI...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
- Page 4 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...
- Page 5 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
- Page 6 WISE-5580 User Manual...
-
Page 7: Table Of Contents
Figure 2.2 Power System of WISE-5000 ........7 Configuration of CPU Module, WISE-5580 ..........8 Figure 2.3 Front View of WISE-5580 ........... 8 Table 2.1: Legend of configuration of WISE-5580 CPU module . 8 Figure 2.4 Internal configuration under the front cover of WISE- 5580................9 Table 2.2: Legend of configuration inside WISE-5580 CPU mod-... - Page 8 Verinfo..................... 32 Susi IOT ....................33 EAPI......................34 AdvWF ....................34 Advantech Lmsensor ................35 Advantech Watchdog KMDF Driver ............36 Appendix A Assignments....... 37 COM1/COM2 RS-232/422/485 ............... 38 Table A.1: RS-232 Serial Port Pin Assignments......38 Table A.2: RS-422/485 Serial Port Pin Assignments....38 USB Connector ..................
-
Page 9: Chapter 1 Introduction
Chapter Introduction... -
Page 10: Introduction
USB ports. WISE-5580 supports dual display VGA and HDMI for various high resolu- tion requirements. The WISE-5580 can operate in wide temperature ranges from -10 to 60 °C. The WISE-5580 leverage Intel Skylake series Core i CPU structure and support dual bank DDR4 which can support up to maximum 32GB RAM capability.In the WISE-... -
Page 11: Accessories
Accessories Please refer below for the accessory list: Power Connector (Advantech P/N: 1652008020-01) If anything is missing or damaged, contact your distributor or sales representative immediately. Product Specifications 1.4.1 WISE-5580 System Specifications General – Certification: CE, FCC, UL –... - Page 12 Storage Temperature: -40 ~ 85°C (-40 ~ 185°F) – Relative Humidity: 10 ~ 95% RH @ 40°C, non-condensing – Shock Protection: Operating, IEC 60068-2-27, 10G, half sine, 11 ms – Vibration Protection: Operating, IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1hr/axis (M.2) WISE-5580 User Manual...
-
Page 13: Chapter 2 Wise-5000 System Overview
Chapter WISE-5000 System Overview... - Page 14 Two serial COM port (RS-232/RS-485/RS-422) The WISE-5580 Basic CPU module equips with 4 PCIe lanes for left hand side func- tion extension, first attached module can use the PCIe x4 resource and the other 3 use PCIe x1 resource. The supported functions include USB 3.0, PoE, GbE, RS-232/ 422/485, Flash Disk and Wireless Interface.
- Page 15 /analytics, or even vision inspection integration. With full function sup- port of SDK/API in C/C++ and C# .NET environment, user can implement the algo- rithm easily and communicate the data with other node or cloud service with efficiency. WISE-5580 User Manual...
-
Page 16: Configuration Of Cpu Module, Wise-5580

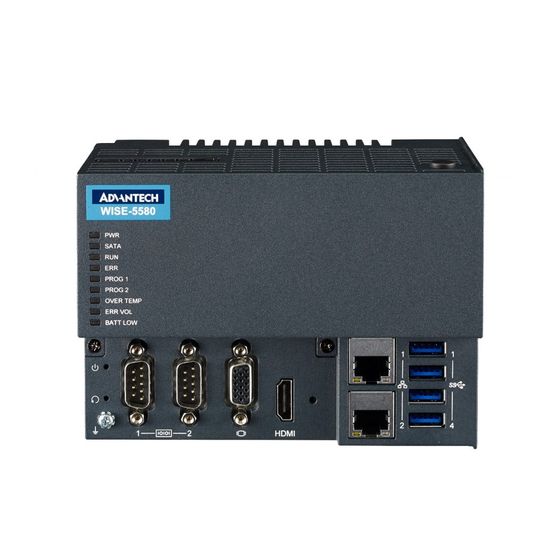

Configuration of CPU Module, WISE-5580 Figure 2.3 Front View of WISE-5580 Table 2.1: Legend of configuration of WISE-5580 CPU module Component Description Connection for EtherCAT Slice IO extension EtherCAT Slice Connection modules. Interfaces for peripherals such as mouse, USB Interface keyboard or USB memory. - Page 17 Figure 2.4 Internal configuration under the front cover of WISE-5580 Table 2.2: Legend of configuration inside WISE-5580 CPU module Component Description To install M.2 SSD for operation system M.2 Connector (M Key) installation. RTC Battery Battery to keep RTC and BIOS settings...
-
Page 18: Module Overview
Module Overview 2.2.1 WISE-54XX PCIe Expansion Module WISE-5580 provide PCIe extension interface from the left-hand side, and there are following modules available: Table 2.3: Table 3: List of WISE-54XX series extension modules Model Front View Description Wireless Expansion Module -PCIe-mini Card Slot (full-size) inside for WISE-5400 Advantech EWM module installation. -
Page 19: Wise-50Xx Ethercat I/O Modules
2.2.2 WISE-50XX EtherCAT I/O Modules Right-hand side of WISE-5580 is the interface for the EtherCAT Slice IO modules, below is the table for the current supported IO modules: Table 2.4: List of WISE-50XX series extension modules Model Description Power Input Module with 4-ch Digital... - Page 20 *This module is with power input, no need WISE-5001 on the right side EtherCAT Bus Extender WISE-5079 -Extend EtherCAT by RJ45 With the PCIe and EtherCAT interface, WISE-5580 can optionally equip some func- tion module to fulfill application requirements. Below are examples: Vision + Motion Controller USB3.0 x4...
-
Page 21: Concentrator
5000 Slice IO, include 4DI WISE-5000 Slice IO to fulfill the IO WISE-50XX requirement of the station WISE-5079 Extend EtherCAT to next station WISE-5074 EtherCAT bus coupler WISE-5000 Slice IO to fulfill the IO WISE-50XX requirement of the station WISE-5580 User Manual... -
Page 22: Cpu Types
CPU Types Control IPC Barebone WISE-5580 provides product offering as Control IPC Barebone for user to do the sys- tem configuration according to the application. User can install the supported OS and get the driver support from Advantech website. However, we suggest user to order embedded OS from Advantech which is optimized OS image with best performance. -
Page 23: Cpu Architecture
(High Speed Slot ) PCIex1 SATA (P2) DDI DDI PCIex1 Intel Slice IO Port 2 Port 1 i210AT Super IO USB 2.0 M.2 (Key M) PCIe Switch PCIe‐mini Card Slot (NVRAM installed) Intel i210AT COM1/2 HDMI USB 3.0 Figure 2.7 System Architecture of WISE-5580 Note! LAN2 and PCIe-mini Card share resource WISE-5580 User Manual... - Page 24 WISE-5580 User Manual...
-
Page 25: Chapter 3 Initial Setup
Chapter Initial Setup... -
Page 26: Selecting The Appropriate Power Supply Unit
Selecting the appropriate power supply unit The WISE-5580 need external 24VDC power input from the screw terminal on the top. And this power input will supply power to the main CPU module (WISE-5580) and left-hand-side PCIe expansion modules (WISE-54XX) .The pin definition is as below: Table 3.1: Pin Definition of Power Input Terminal... -
Page 27: System Configuration And Installation
LED is on. Please make sure power is completely removed and every LED is off before changing hardware configuration. To enhance the system availability, WISE-5580 provides dual power input function to support main power input and backup power input. Either power input encounter trouble will trigger below alarms: The LED "ERR VOL"... - Page 28 Install USB device in the internal USB2.0 port WISE-5580 reserves one port inside the chassis for important USB device. This design can keep user's important property inside the chassis and it would be not as easy to remove as it is outside the chassis. The USB device could be: –...
-
Page 29: Mounting
Note: The CPU module may overheat if the installation position is incorrect or mini- mum distances are not adhered. WISE-5580 is with passive cooling system, and need correct mounting position to ensure optimum heat dissipation. Note the below requirements for the control cabinet: Please make sure the temperature of control cabinet is within the operation tem- perature of WISE-5580, which is -10~60 °C... -
Page 30: Attaching On The Din-Rail
Please follow below steps to secure WISE-5580 on the DIN-rail: Step1: Unlock the latches at the bottom of WISE-5580 and WISE-54XX Step2: Place the WISE-5580 on the DIN-rail, hang the device on the top side of the DIN-rail. And push the lower side of the device onto the DIN-rail. -
Page 31: Bios Setup
BIOS Setup 3.4.1 How to enter the BIOS? First, plug-in the 24VDC input power to boot the WISE-5580 or reboot it if it is run- ning. Second, press "Delete" key while the WISE-5580 is performing the power-on self-test (POST). If you can hear the "beep" sound from your WISE-5580 controller, you are success- fully accessing the BIOS. -
Page 32: Bios Configuration
3.4.2 BIOS configuration When you enter the BIOS, the "Main" tab list overall information to the WISE-5580 controller; you may see BIOS information and Processor Information on this page. Figure 3.3 BIOS and processor information 3.4.3 Hardware Monitor The "Hardware Monitor" option under "Advanced" tab shows all hardware monitor sensors real-time value. - Page 33 In order to protect your system from overheat damage; you may also set the "CPU Shutdown Temperature" value. When the CPU overheats, the system will shut down automatically. Figure 3.6 The CPU shutdown temperature and over temperature configuration in BIOS WISE-5580 User Manual...
- Page 34 Furthermore, WISE-5580 also supports numerous Watch Dog Timer API to allow users to build their own applications. For more details, please refer to Chapter 3.6 Advantech Watchdog KMDF Driver.
-
Page 35: Serial Port Configuration
"Advanced" tab and select "Serial Port Con- figuration" to enable the serial port and select the protocol type. Figure 3.8 Serial port configuration in BIOS Figure 3.9 Enabling serial port in BIOS WISE-5580 User Manual... - Page 36 Figure 3.10 Configure serial port protocol type in BIOS WISE-5580 User Manual...
-
Page 37: Save Settings And Return To Default
After configuring the BIOS, please press "F4" key to save the settings and exit the BIOS. If you want to return the setting to default, please press "F3" key to return the opti- mized default setting. Figure 3.11 Hotkey to Optimized Defaults and Save & Exit Setup in BIOS WISE-5580 User Manual... - Page 38 WISE-5580 User Manual...
-
Page 39: Software Tools
Chapter Software Tools... -
Page 40: Verinfo
WISE-5580 controller also support with useful utilities and drivers to help you monitor your device easily or build up your own applications for advanced uses. All the utilities and drivers are bundled in OS image which has already been pre- installed in your WISE-5580. -
Page 41: Susi Iot
Susi IOT Advantech Susi IOT provides an interface to have an overview for all system informa- tion on your WISE-5580 platform. You can find the utility by the following path in WISE-5580: C:\Program Files\Advantech\SusiIoT\Applications\SusiIoT Demo WISE-5580 User Manual... -
Page 42: Eapi
The target is to avoid software modifications when changing device modules. EAPI will cover all interfaces in the device to unify the software control: You can find developer guide and sample codes by the following path in WISE-5580: C:\Program Files\Advantech\PlatFormSDK AdvWF... -
Page 43: Advantech Lmsensor
Windows system platforms. This driver also pro- vides sample application. You can modify sample application to meet your needs. You can find examples and user manual by the following path in WISE-5580: C:\ Pro- gram Files (x86)\Advantech\Lmsensor... -
Page 44: Advantech Watchdog Kmdf Driver
When developing work is completed, you can use test tools to verify if functions of the application are correct. You can find examples and user manual by the following path in WISE-5580: C:\ Pro- gram Files (x86)\Advantech\Watchdog... -
Page 45: Appendix A Pin Assignments
Appendix Pin Assignments... -
Page 46: Com1/Com2 Rs-232/422/485
COM1/COM2 RS-232/422/485 Table A.1: RS-232 Serial Port Pin Assignments Pin Name Table A.2: RS-422/485 Serial Port Pin Assignments RS-422 RS-485 Data- Data+ Please setup the serial port in the BIOS. WISE-5580 User Manual... -
Page 47: Usb Connector
TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved DDC/CEC/HEC Ground +5 V Power (max 50 mA) Hot Plug Detect WISE-5580 User Manual... -
Page 48: Ethercat Connector
EtherCAT Connector Table A.5: EtherCAT Connector Signal Name (Input) Signal Name (Input) WISE-5580 User Manual... -
Page 49: Led Indicators
Over temp Green OS Recovery Table A.11: ERR VOL Detect AC1 and AC2 power high and low limit voltage Description Setting BIOS Safety LED Status Abnormal* Green OS Recovery *Due to the resolution of the chipset, the real lower limitation will be around 19.3V (2LSB) Table A.12: BATT LOW Description Detect battery voltage Setting BIOS LED Status Normal Battery Low WISE-5580 User Manual... - Page 50 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2019...
