Otolift Stairlifts

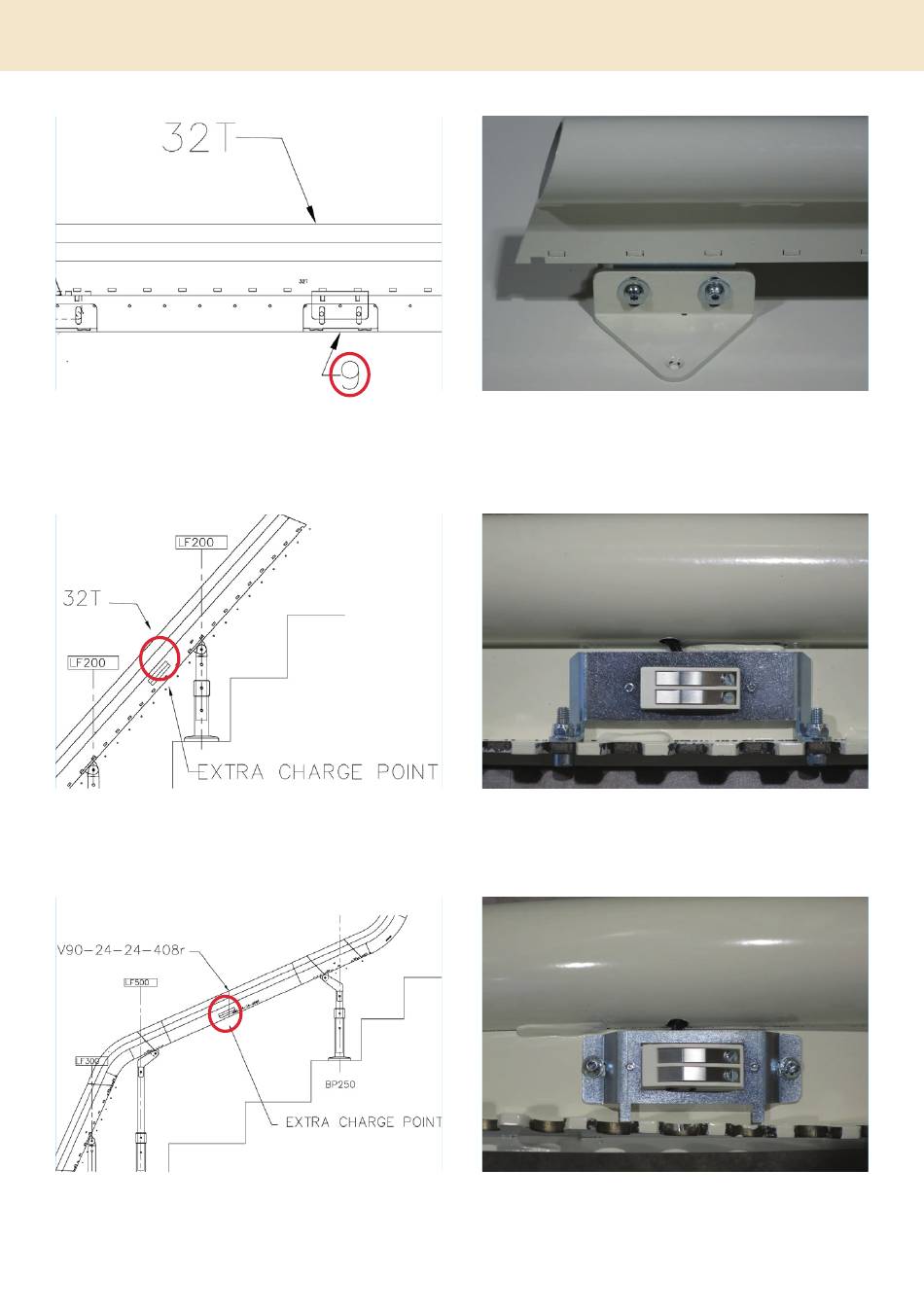

Drawing shows a BOP support at position 9.
Always mount a BOP support.
Drawing shows an extra charge contact in a
straight rail section.
Drawing shows an extra charge contact in an
external bend rail section.
8
2 - Installation drawing explained
Picture shows BOP support set 200060056
incl. BOP mounted at pos x.
NOTE It is forbidden to place 200060056 at
position 1
Picture shows a mounted charge contact straight
200060060.
Mounted charge contact 200060061 for external
bend.
Installation manual
