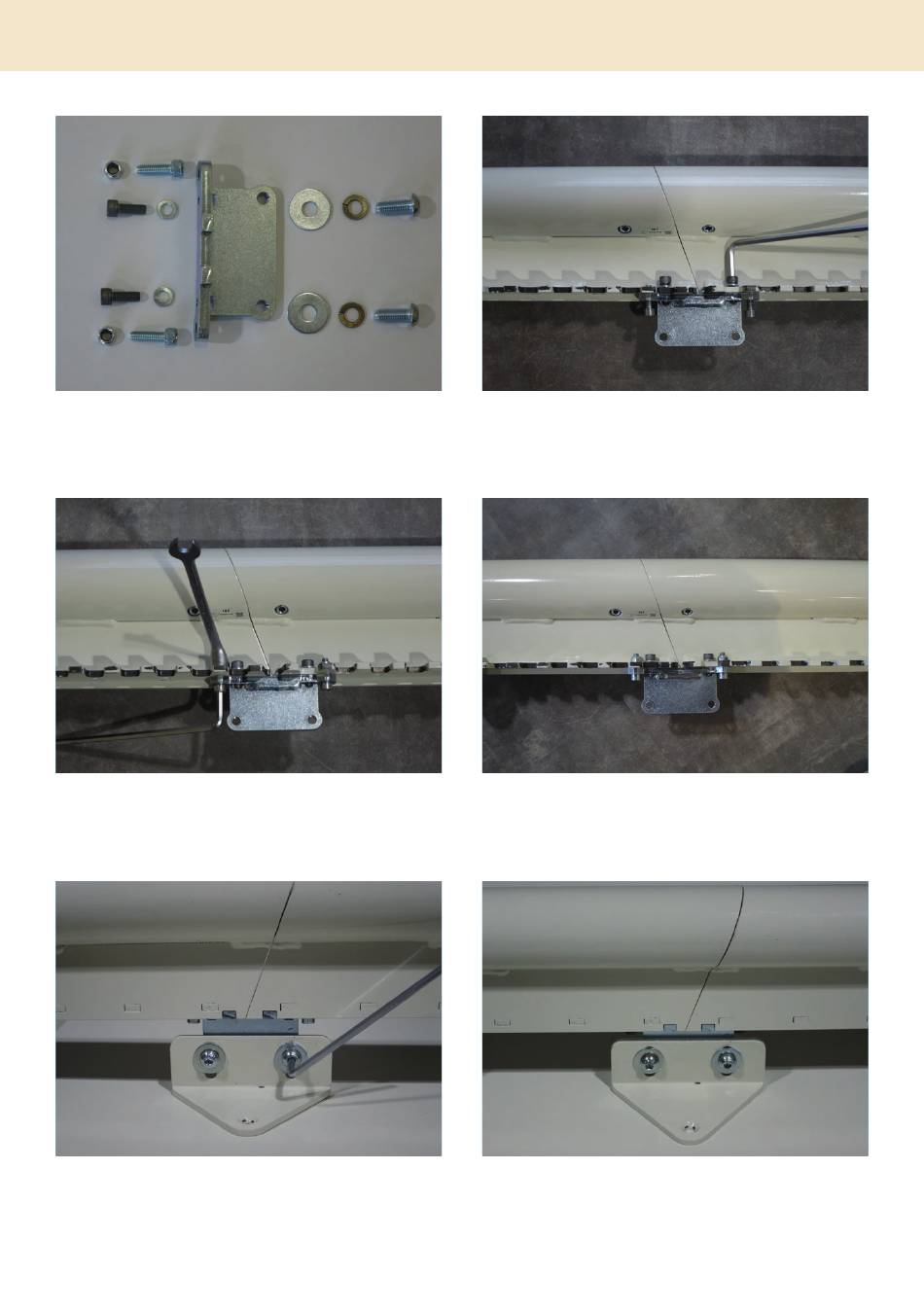

Coupler BOP support set 200060055.
NOTE This part must always be assembled at
position 1 (rail coupling).
Mount nuts and tighten with hexagon 5 and
socket wrench 10mm.
Mount coupler BOP support, tighten with
Hexagon 5mm and socket wrench 10mm.
18
8 - Coupler BOP support
First position outer bolds m6x20 and start
tighten inner m6x16 with hexagon 5.
Note that fitting has some friction.
Coupler BOP support mounted.
Coupler BOP support assembled.
