Otolift Stairlifts

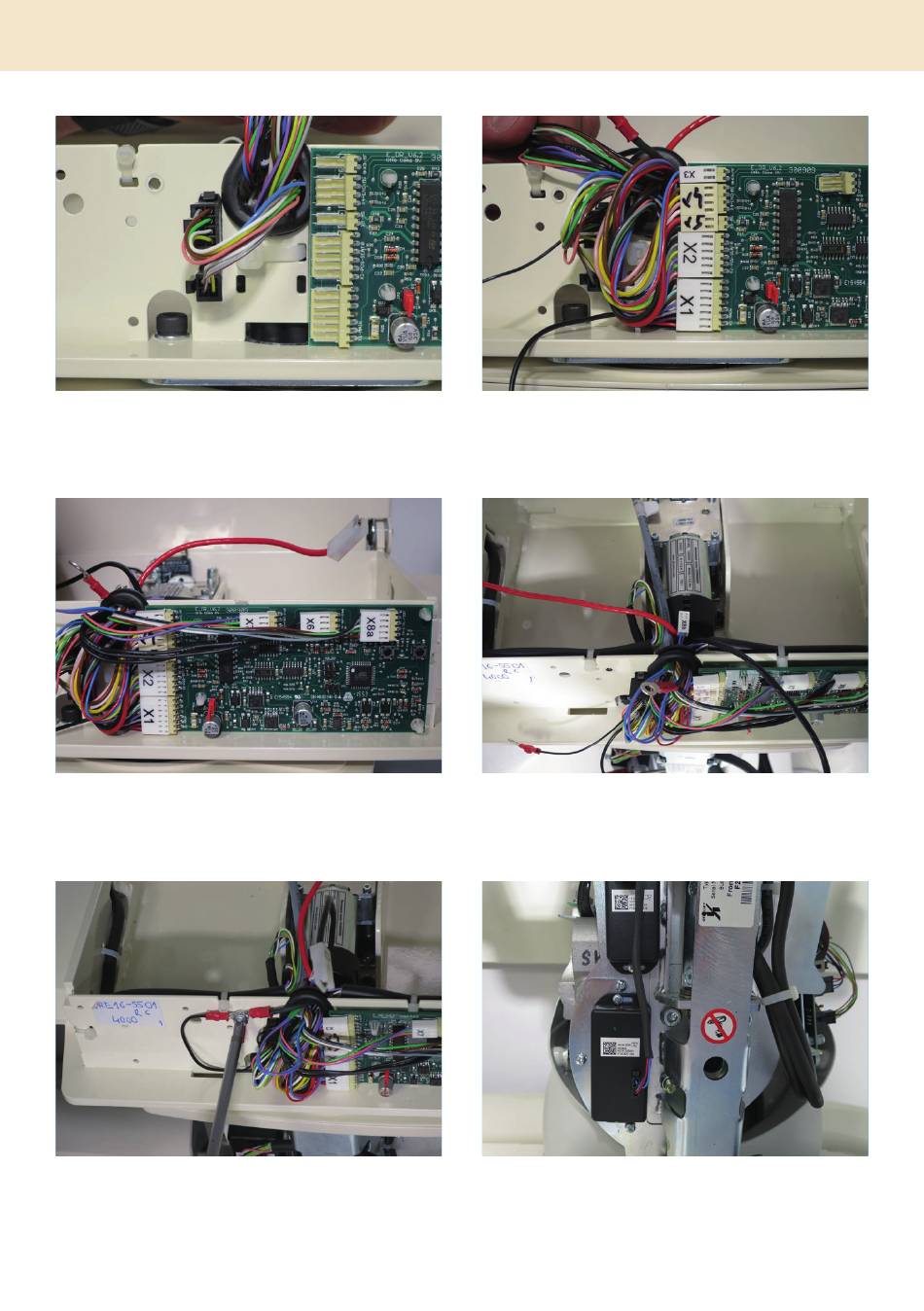

Connect connectors C2a and C1a.
Connect X7 (footplate down), X6 (seat down)
and X8a (control footplate up/down).
Mount ring terminals. Use screw which are in
screwset mounting seat.
22 - Wiring powered swivel
Connect X1 (supply), X2 (swivel seat),
X5,X4 (motor swivel) and X3 (motor footplate).
Guide X8b 2cm back through plastic ring
(do not connect).
Mount tie wrap according to picture.
Note that cables must be in line (no crossings).
Installation manual
47
