Otolift Stairlifts

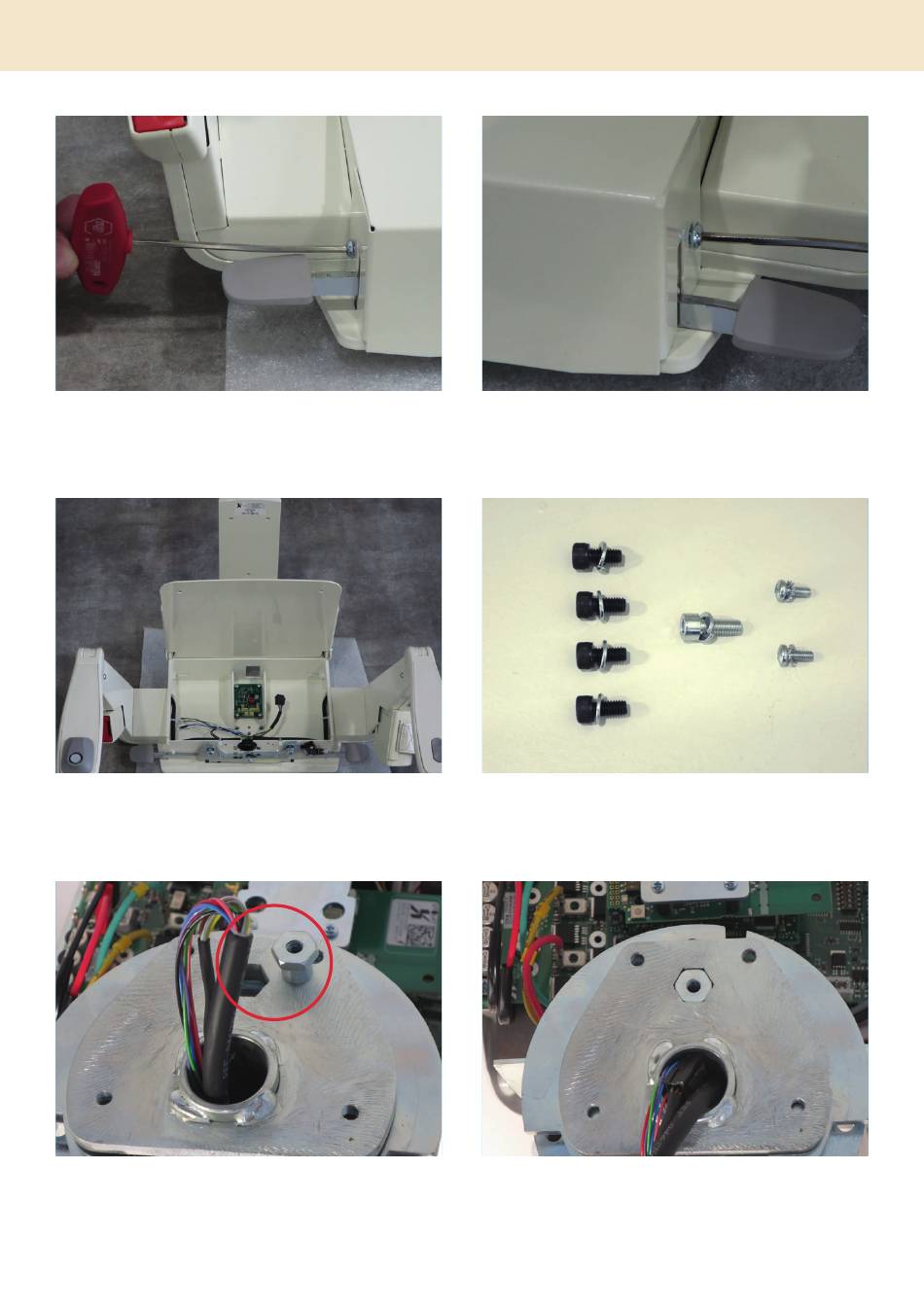

Remove battery cover. Use hexagon 3.
Seat ready for assembling on frontframe.
Manual swivel. See spacer.
20 - Assembling seat
Remove battery cover. Use hexagon 3.
Screw set for mounting seat. In case of manual
seat an extra screw provided for mounting spacer.
Manual swivel. Place spacer.
Installation manual
41
