Otolift Stairlifts

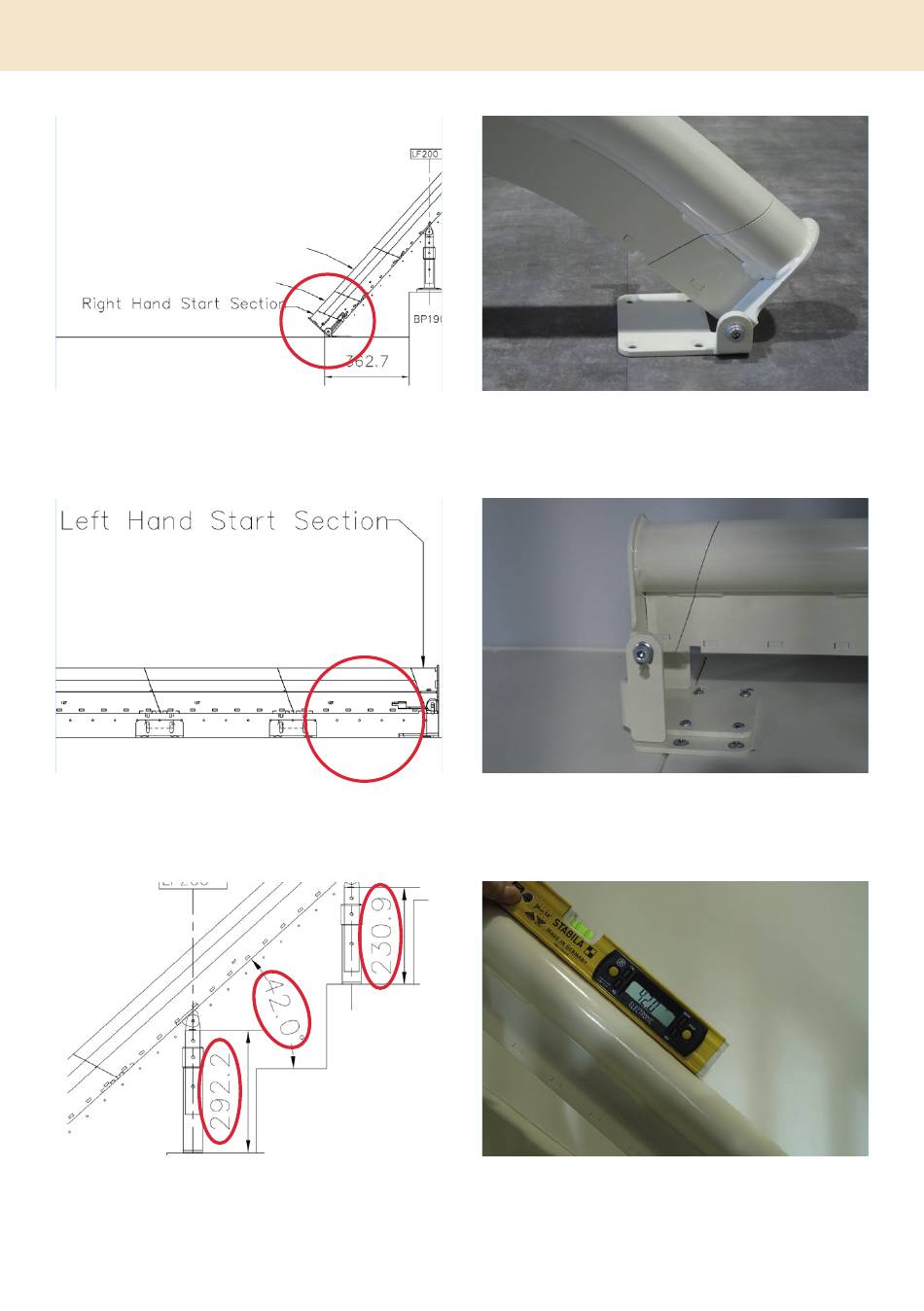

Drawing shows an incline start as rail start.
Drawing shows an horizontal finish as rail finish
(or rail start).
Drawing shows incline of rail and total length of
rail supports.
2 - Installation drawing explained
Picture shows a mounted incline start.
Picture shows a mounted horizontal finsh (start).
Picture shows the (correct) verified incline
of 42 degrees. (See chapter leg assembling
for detail about length.)
Installation manual
11
