Removing the Sensor

Should the Sensor need to be removed for any reason, it must be disconnected
from the ATV and unbolted from the sled. To access the sensor you must first
remove the shroud as detailed on the previous page

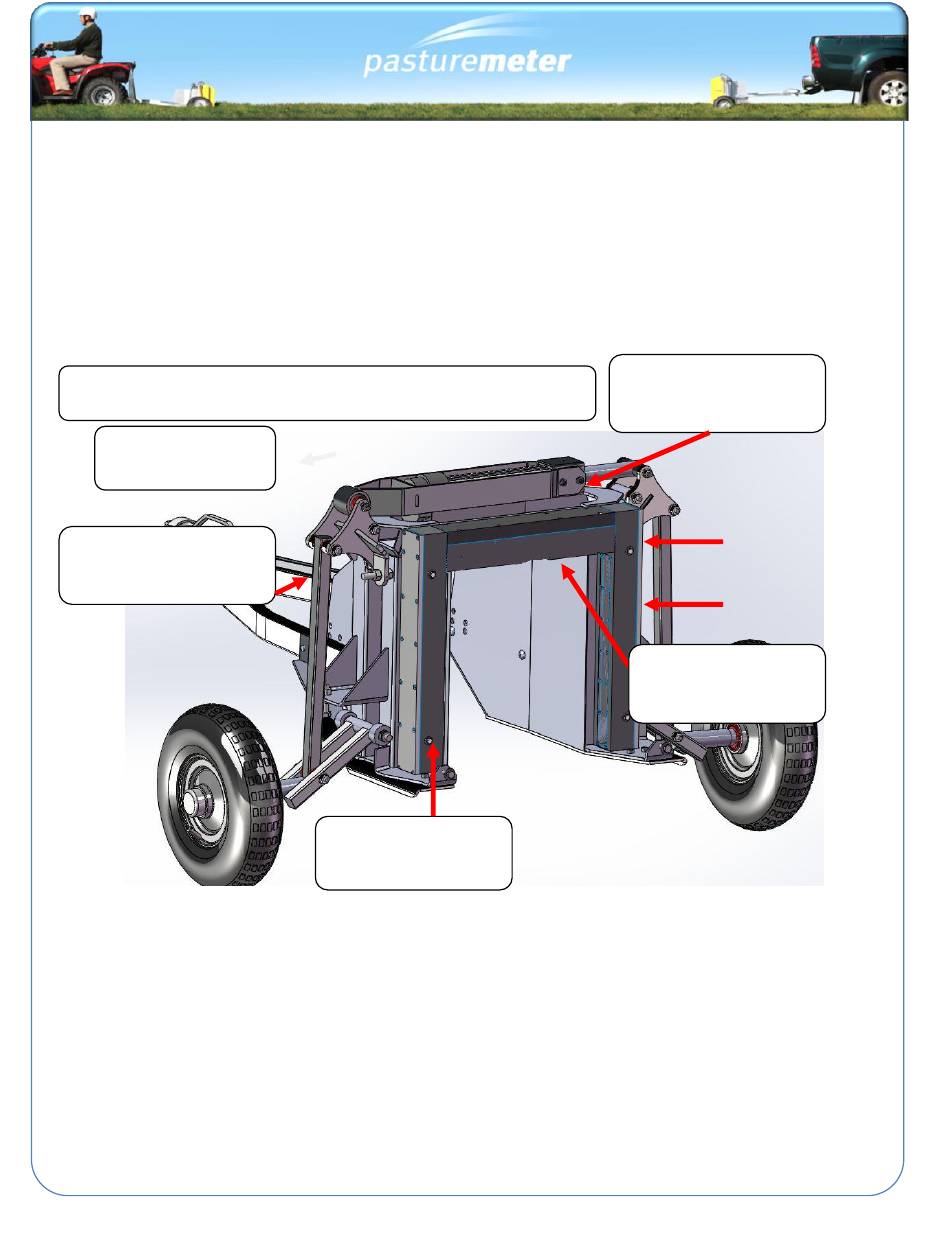

SENSOR REMOVAL OVERVIEW
Ensure that the power
cable plug is
disconnected.
Unscrew the 2 round plugs
coming out from the front of
the shroud near the rear of
the cable protector.
Undo & remove these two
attachment bolts on both
sides of the sensor.
Remove the actuator plug by
unscrewing the TORX25
screw and sliding back the
cover
Undo & remove the three
cable clips which hold the
power and actuator cable
in place
19
