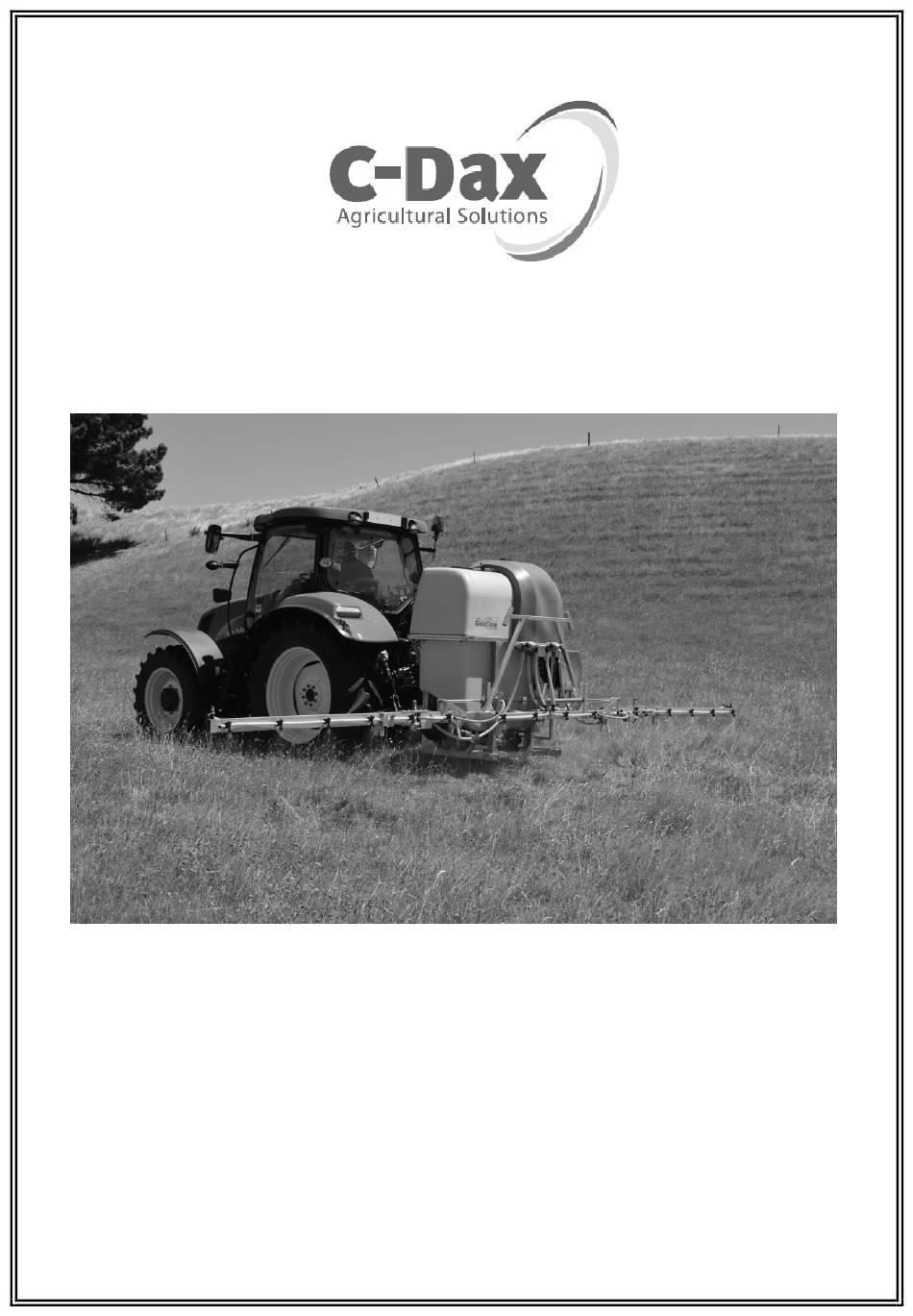

- Page 1 OWNER’S MANUAL FOR THE GOLDLINE THREE POINT LINKAGE SPRAYERS C-Dax Ltd PO Box 1010, 145 Harts Road Tiritea, Palmerston North Ph: 06 354 6060 Fax: 06 355 3199 E-Mail: sales@c-dax.co.nz www.c-dax.co.nz...
-
Page 2: Safety Precautions
GOLDLINE SPRAYERS AN IMPORTANT MESSAGE FOR OWNERS & OPERATORS OF C-Dax ATTACHMENTS/ACCESSORIES Be warned of the dangers of loading your vehicle in excess of its carrying capacity. It is important to understand that any loads or attachments whether fastened to or placed on a vehicle will alter the stability or handling characteristics of that vehicle. - Page 3 SAFETY Before attempting to install or operate the equipment, read and understand the manual thoroughly. Failure to comply with this instruction constitutes improper use and will invalidate the warranty. Before using your pesticide, STOP, Read The Label Mixing pesticides is a most dangerous time as it involves handling the concentrated material. For toxic compounds, use protective clothing such as overalls, hat, gloves, boots and respirator.
-
Page 4: Table Of Contents
C-Dax GOLDLINE 3PL SPRAYERS OWNERS MANUAL (Pt.No 2400-6200 Issue 16, January 2021) TABLE OF CONTENTS Safety Precautions Contents Introduction Description Specifications Optional Equipment Warranty Liability Installation Pre Delivery Check Delivery Theory of Operation Calibrating your Pressure Nozzle Boom Nozzle tips... -
Page 5: Introduction
The frames are manufactured of sturdy steel construction, and have mounting positions for the full range of C-Dax spray booms and accessories such as hose reels and foam markers. All models are finished in galvanized coating. A high quality multi outlet pressure regulator is fitted as standard. -
Page 6: Optional Equipment
U.K.) subject to the terms set out below. C-Dax will at its option repair or replace the defective equipment (or part of the equipment) or notify the retailer of the equipment to refund the purchase price for such defective equipment to... -
Page 7: Liability
Where C-Dax elects to repair or replace the equipment it will use reasonable endeavours to do so as soon as practicable but will not be liable for any delay in doing so. -
Page 8: Installation
INSTALLATION Pre Delivery Check Remove shrink-wrap then check major components for missing or damaged parts (remove any contents from inside tank before filling) Frame (with linkage pins and clips) Tank Filter Pump (Hose tails tight) Control unit and stand (clamps and hose tail tight) Gauge mount tight Drive shaft Suction filter (bowl tight) Check spray pump oil level in pump sight glass (¼–... -
Page 9: Theory Of Operation
THEORY OF OPERATION Spray fluid is placed in the tank where it is drawn through a suction filter and pumped to a control valve. The excess flow from the valve is returned to the tank via the bypass hose. Fluid at a nominal pressure is pumped to the spray outlet via the spray hose. - Page 10 There are several size tips available depending on the type of spray pattern required and the amount of spray fluid required to be applied. All spray tips supplied by C-Dax LTD conform to an international standard for tip size and colour coding. Use the spray tip chart below to select the required tip size for your application:...
-
Page 11: Operation
OPERATION Hand Gun Spraying Add chemical mix into the tank at handgun spraying rates recommended on chemical container Ensure control unit pressure control knob is wound fully out (CCW) and dump valve set to 0 (dump position) Run pump at 540 rpm Ensure fluid flows in return line to tank Turn dump valve lever on control unit to I (pressure position) Set Control unit pressure to required handgun setting. - Page 12 CAUTION To prevent premature damage to sprayer or spraying components, do not travel at excessive speeds while spraying. Spraying speeds must be matched to ground conditions. If ground is uneven or rough, REDUCE SPEED. WARNING To prevent premature failure of drive shaft, DO NOT use drive shaft for heavy-duty equipment. Drive Shaft is rated 16hp only (conforming to ISO 5674).
-
Page 13: Filter
After Use At the end of spraying, flush the system (using the tank rinsing system if fitted) three times with fresh water. Finish with a final rinse using C-Dax Neutralise rinsing solution. Include the spraying device/s in this operation. Drain tank using remote drain bung. -
Page 14: Trouble Shooting
WARNING To prevent premature failure of spray pump, DO NOT leave water in the sprayer tank or pump when there is a risk of frost. Remove filters and check. Reassemble filters. Clean sprayer thoroughly and carefully. Apply CRC to all electrical connections. Check pump for leaks and poor performance. -
Page 15: Simple Rules For Dismantling And Re-Assembling Imovilli Pumps
Simple Rules for Dismantling and Re-Assembling Imovilli Pumps Point 1 Before completely dismantling the pump, check that the causes for irregular running or non-function are not amongst those indicated in the maintenance and instructions booklet supplied with each pump. Point 2 To substitute diaphragms or internal moving parts, dismantle in the following order: Suction manifold(s) (according to the type of pump) Heads... - Page 16 Pistons Replace the piston skirt if it is lined, especially on a low-pressure pump, which has no piston rings. Check that play on the piston pins is not excessive. Piston Rings On the pumps equipped with these rings check that they have no marks or breakages. If necessary, replace. Check Valves Carefully check the cage.
- Page 17 Suction filter 1 ½” with shutoff valve Part number #3400-8340 3400-4920 ORing-Imperial- 3/16"x3 3/4"-N70 Not Stocked Not Available 3400-5500...
- Page 18 HG2 Handgun Part number #4000-3900 Item No Part No Description 6200-1640 Pipe-Fitting-Connector-Straight-10 Shank-Incl 1/2BSPF Fly Nut-Brass 4000-3920 Hand Gun-HG2-Bush-Threaded-Needle Shaft-Rear 4000-3916 Hand Gun-HG2-Bolt & Nut-Trigger 4000-3940 Hand Gun-HG2-Nut-Needle Shaft Adjust 4000-3954 Hand Gun-HG2-Trigger Assembly 4000-3922 Hand Gun-HG2-Connector-Hose to Gun-1/2BSPMx1/2BSPM 4000-3926 Hand Gun-HG2-Gasket-Washer-Swivel Connect-26x18x2-Rubber 4000-3932 Hand Gun-HG2-Lock-Trigger...
- Page 19 CAUTION To allow the spraying system to operate effectively, any spraying device should not exceed 2/3 of the maximum flow of the spray pump. Example: 2.5 L/min x 12 nozzles = 30 L/min. 30 litres is more than 2/3 the capacity of the M35 pump so an M50 would be required, or the nozzle flow reduced.
- Page 20 M50 Pump Part number #6800-7900 Item No. Part No. Description 9100-4310 Washer-Imovilli-Chamfered-M16 7800-4300 Seal-Imovilli-Oil-30x47x7-Nitrile 2250-4250 Cover-Imovilli-Bearing-M50,D82,D113,D123 1140-4300 Bearing-Imovilli-Big End-M50 2300-4330 Diaphragm-Imovilli-Piston-M30,M50,M73 9100-4330 Washer-Imovilli-Diaphragm to Piston-M30,M50,M73,M104,M135 9100-4360 Washer-Imovilli-Flat-M12 2010-4200 Clamp-Imovilli-Hose-Suction Damper-M30,M50 2300-4380 Diaphragm-Imovilli-Suction Damper-M50-41mm OD 2250-4400 Cover-Imovilli-Valve-Suction Damper Side-M30,M50 2250-4200 Cover-Imovilli-Bearing-M35,M50,D82,D123 3040-0830 Fastener-Imovilli-Cap Head-Allen Screw-M8x30-Grade 8.8-ZP 4060-1010...
- Page 21 M73 Pump Part number #6800-8000 Number E9 Part No. DESC 9100-4350 Washer-Imovilli-Flat-6592 2300-4330 Diaphragm-Imovilli-Piston-M30,M50,M73 7800-5580 Seal-Oil-35x47x7-Nitrile 1600-4500 Cap-Imovilli-Oil Filler-M73,M104,D123 5400-4000 Oil Filler-Imovilli-M73,D123, 5450-4580 ORing-Imperial-3/32"x3/4"-N70 9100-4320 Washer-Imovilli-Chamferred-1750 3040-0835 Fastener-Imovilli-Cap Head-Allen Screw-M8x35-Grade 8.8-ZP 9100-4330 Washer-Imovilli-Diaphragm to Piston-M30,M50,M73,M104,M135 5450-4640 ORing-Imperial-3/32"x1 3/16"-N70 6200-4240 Pipe-Fitting-Imovilli-Elbow-32 Shank-Swivel-33mm-Plastic 6200-4270 Pipe-Fitting-Imovilli-Nut-Swivel-1 1/4"-Plastic 8900-4320...
- Page 22 D82 Pump Part number #6800-7600 Number P NO DESC 2300-4200 Diaphragm-Imovilli-Accumulator-D70/82,D105,D120 5450-4650 ORing-Imperial-3/32"x1 3/8"-N70 2300-4370 Diaphragm-Imovilli-Suction Damper-D70-65mm OD 5450-4500 ORing-Imperial-3/32"x3/8"-N70 2250-4200 Cover-Imovilli-Bearing-M35,M50,D82,D123 7800-5580 Seal-Oil-35x47x7-Nitrile 3040-1065 Fastener-Imovilli-Cap Head-Allen Screw-M10x65-Grade 8.8-ZP 6220-4300 Piston-Imovilli-D82/D113/D123 4060-1000 Head-Imovilli-Accumulator-D70,D82 5450-2200 ORing-Imperial-1/8"x1/4"-N70 4060-2000 Head-Imovilli-Cylinder-D70,D82,D105,D113,D123 1120-4400 Base-Imovilli-Pressure Accumulator-D123 6200-4240 Pipe-Fitting-Imovilli-Elbow-32 Shank-Swivel-33mm-Plastic 6200-4270...
- Page 23 D123 Pump Part number #6800-7500 ITEM NO. QTY. e9 Part No e9 description 2250-4250 Cover-Imovilli-Bearing-M50;D82;D113;D123 7300-4300 Ring-Imovilli-Spacer-D113;D123 6220-4300 Piston-Imovilli 4060-2000 Head-Imovilli-Cylinder-D70;D82;D105;D113;D123 3040-1065 Fastener-Imovilli-Cap Head-Allen Screw-M10x65-Grade 8.8-ZP 8900-4330 Valve-Imovilli-Check-Complete 3700-3820 Gasket-Imovilli-Valve-Models IP & D 7800-5580 Seal-Oil-35x47x7-Nitrile 5450-4580 ORing-Imperial-3/32"x3/4"-N70 5400-4000 Oil Filler-Imovilli-M73;D123; 1600-4500 Cap-Imovilli-Oil Filler-M73;M104;D123 4150-1400...
- Page 24 CD10 Pressure Regulator Part number #2220-0500...
- Page 25 CD7 Pressure Regulator Part number #2220-0900 Number QTY P NO DESC 1 8900-4390 Valve-Imovilli-Controller-Tap-2 Bolt-CD7 1 6200-4290 Pipe-Fitting-Imovilli-Straight-13 Shank-Plug In-27mm-Plastic 1 5450-4590 ORing-Imperial-3/32"x13/16"-N70 1 4990-4200 Lever-Imovilli-Controller-CD7 1 5450-4650 ORing-Imperial-3/32"x1 3/8"-N70 1 5450-4650 ORing-Imperial-3/32"x1 3/8"-N70 1 3050-0290 Fastener-Imovilli-Rod-Threaded-M8x290-CD7-4 Valve-ZP 1 2300-4360 Diaphragm-Imovilli-Regulator-CD7 1 9100-4320 Washer-Imovilli-Chamferred-1750...
-
Page 26: Equipment Decontamination Procedures
EQUIPMENT DECONTAMINATION PROCEDURES All application equipment should be regularly washed, decontaminated and cleaned both internally and externally whilst involved in routine operations, at least at the completion of each days work, and whenever a change of agrichemical mix occurs. The easiest way to reduce the hazards of contaminated equipment is to dilute pesticides with copious amounts of water, being careful to dispose of the rinsing in an approved manner.
